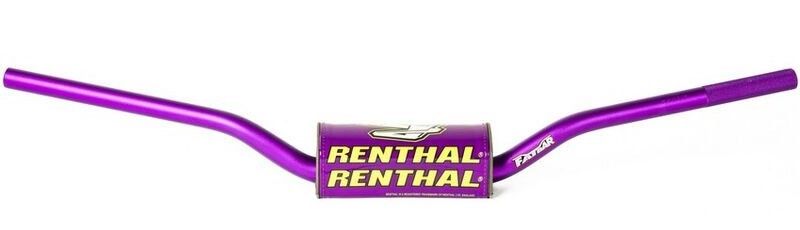

RENTHAL FATBAR CRF / KX 839, Renthal 839-01-PE PURPLE

Part no 48-229.PE

Colour – Purple

Fatbar

The championship-proven Renthal Fatbar continues to set the industry standard in an unbraced tapered MX handlebar. The oversized (1-1/8in | 28.6mm) clamping diameter uses computer-aided profiling, tapering down to (7/8in | 22.2mm) to accept standard controls. Engineered from Renthal’s exclusive 7010 T6 aluminum, specially formulated to reduce vibration and provide superior strength.

The Renthal MX Fatbar provides that signature flex character desired by many top athletes around the globe and is fitted as OE equipment by Honda, Kawasaki, and Suzuki.

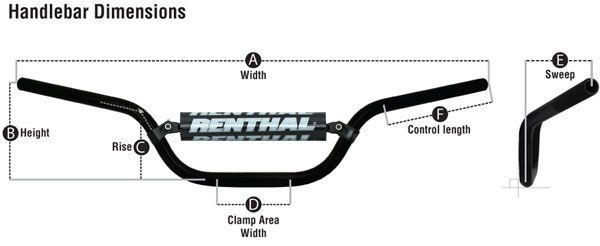

Bar Dimension (mm)

Width / Dimension A 802
Height / Dimension B 91
Rise / Dimension C 51
Clamping Width / Dimension D 131
Sweep / Dimension E 51
Control Length / Dimension F 200
Dimension G 104
Height / Dimension BV 91
Mounting Diameter 28.6mm / 1+1/8”
