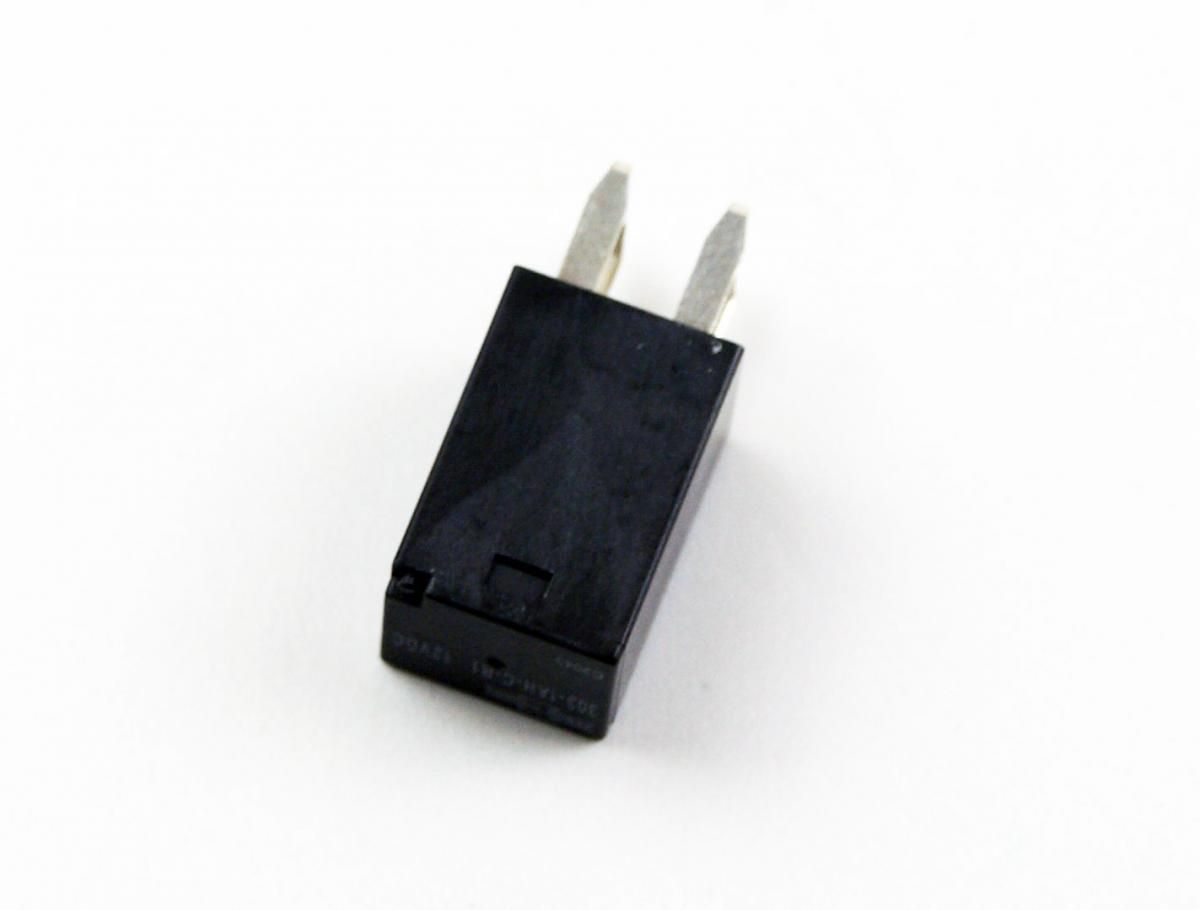

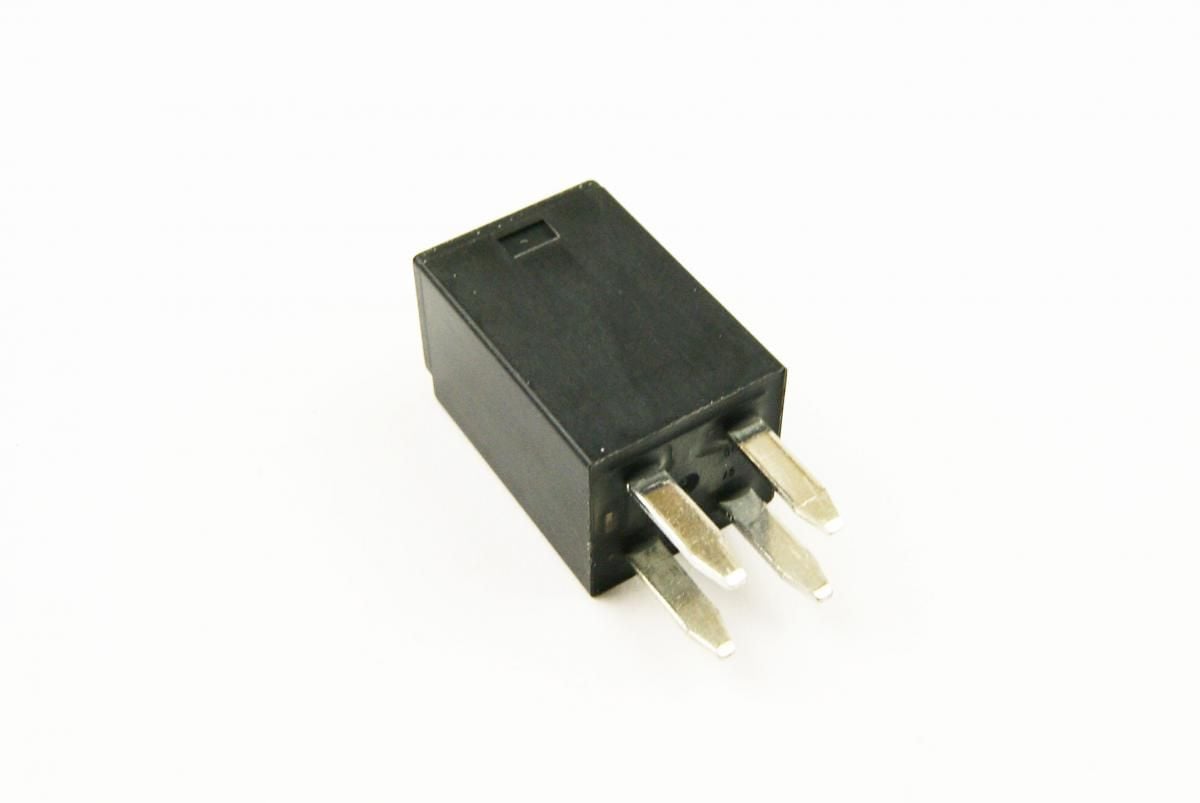

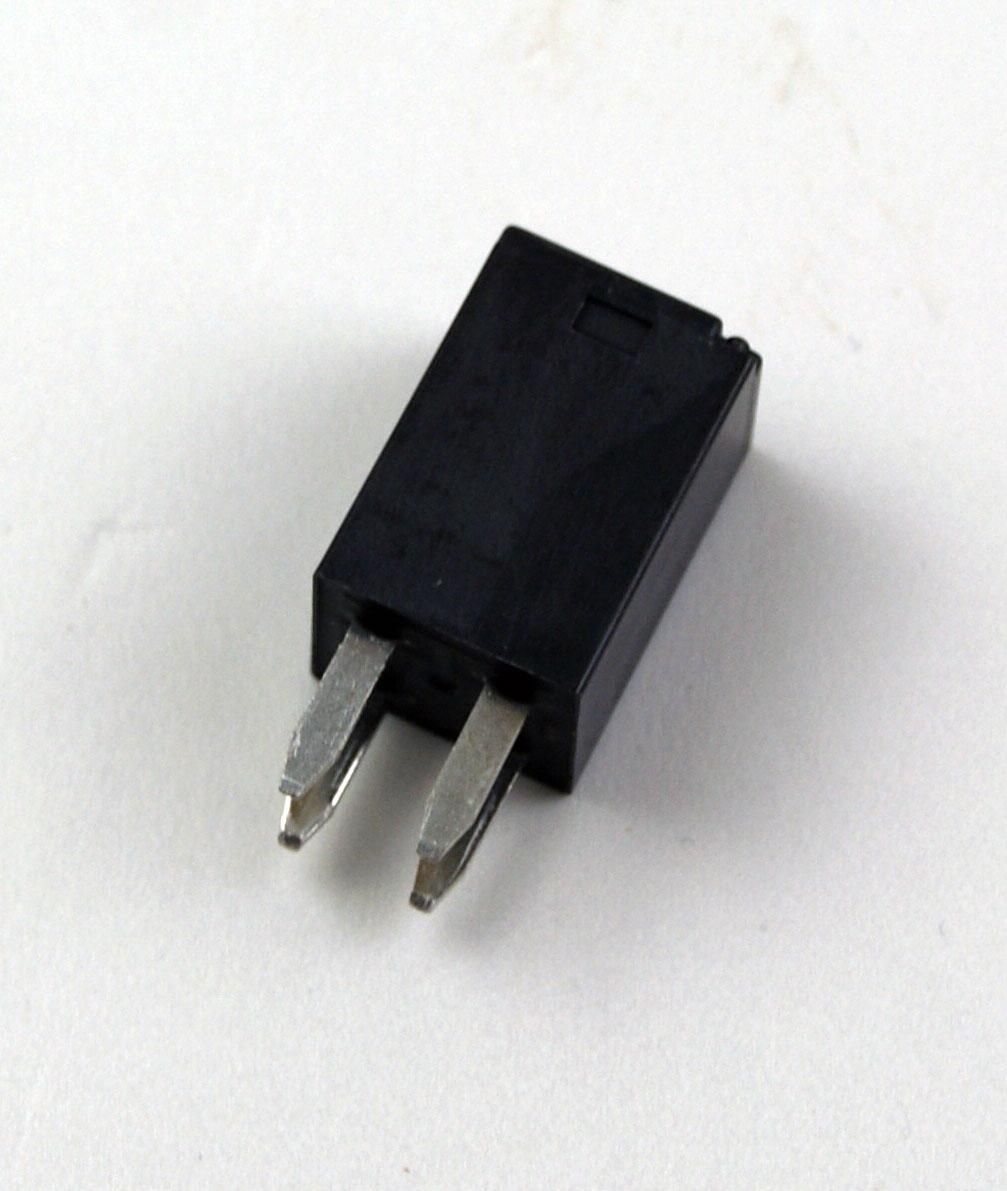

RELAY UNIT 4 PIN. 12 VDC UP-01556
12v 4 Pin Ultra Micro Relay SPDT 20 amp ISO 280 Automotive Relay
4 PIN. 12 VDC

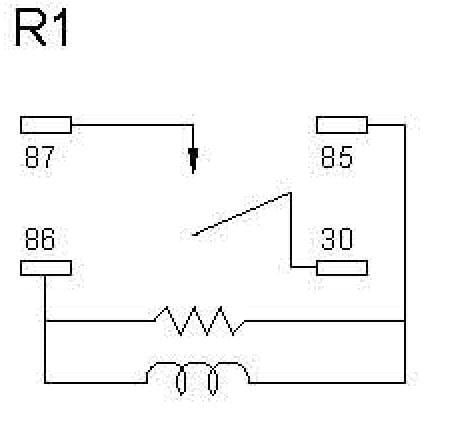

4 terminal single pole single throw relay with resistor. Very nice quality with a much higher working temperature than most. 257 degrees F. Rated for 20 amps normally open. 2.8mm wide terminals.12 volt coil. Used by many OEM’s around the world.
| Technical information | |
| Voltage (voltage) | 12. [V] |
| Type | ELEC. RELAY |
| # terminals (# terminals) | 4 |
| Clamp | NO |
| Load | |

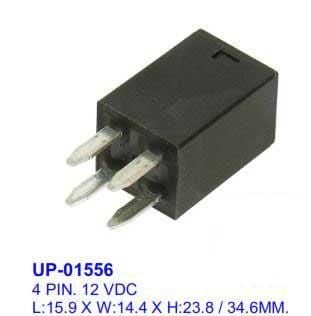

| SIZE | L:15.9 X W:14.4 X H:23.8 / 34.6MM. |
| Apply to | |||||
| Brand | Model | Version | Displacement | Year | OEM code |
| HONDA | See Below | ||||
| YAMAHA | See Below | ||||
| KAWASAKI | See Below | ||||
| SUZUKI | See Below | ||||
| APRILLIA | See Below | ||||
– Meets or exceeds OEM quality.
– Direct oem replacement.
– All products are factory tested for 100% reliability at point of sale
– Designed to handle increased power loads.

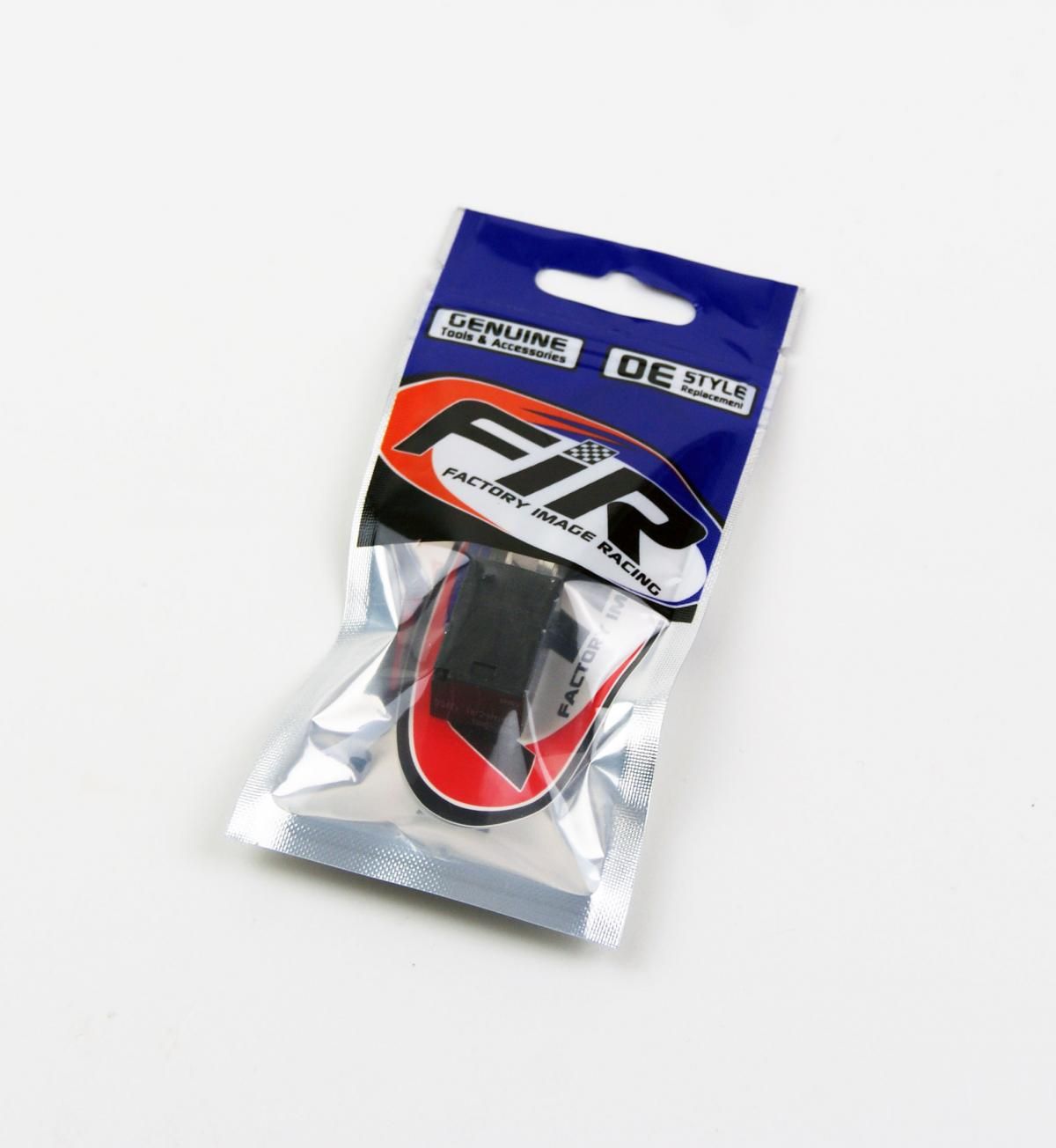

– FIR Racing products are a high quality replacement part and carries our guarantee of your satisfaction.
– Note. No Returns on Electrical Parts.
– Please see image before ordering to avoid mistakes.
Cross reference numbers ONLY.
UP-01556,
