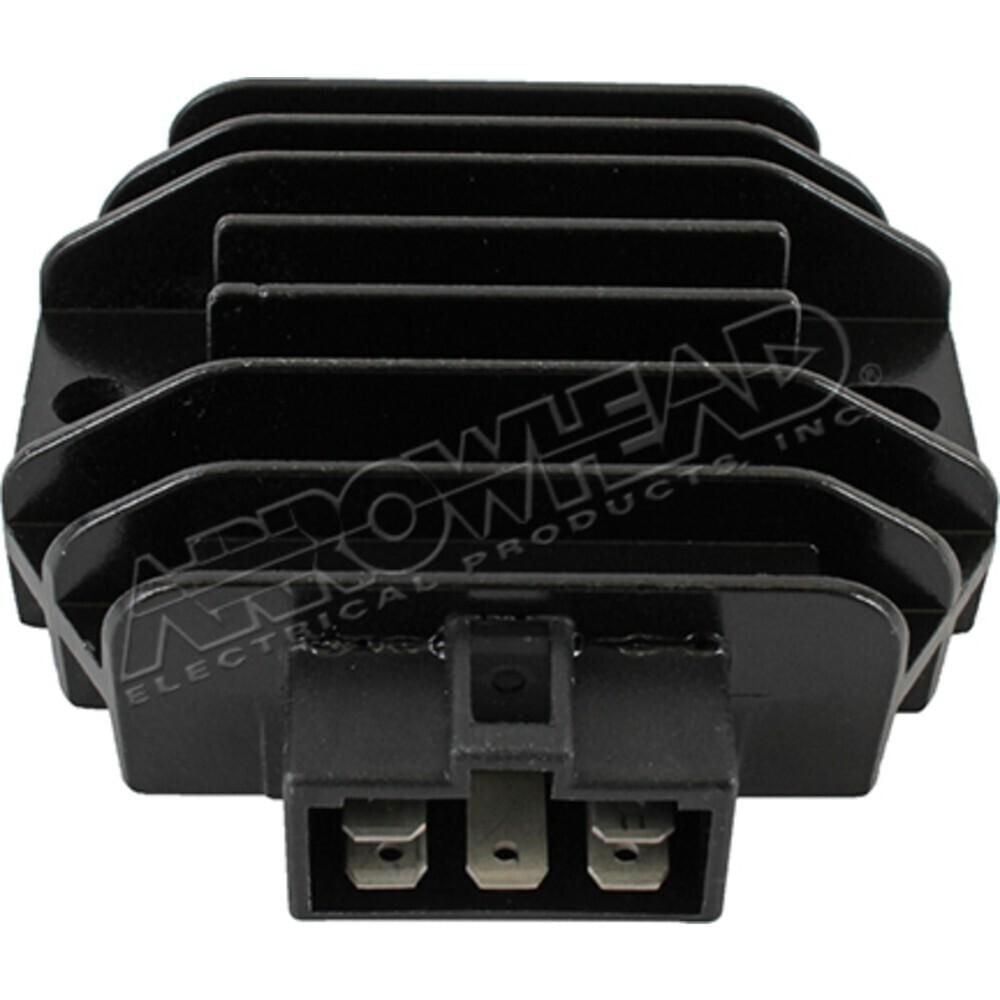

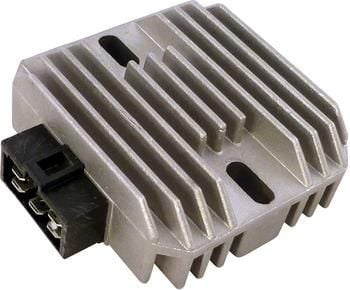

REGULATOR Yamaha SCOOTERS, AYA6035, 5ML-H1960-00-00 ZUMA, ROAD, 4HM-H1960-00-00
£61.60
Brand: Arrowhead Electrical
Stock: 2
| Product Type | Voltage Reulator |
|---|---|
| Product Group | Ignition & Electrical Parts |
| Catalogue | ROAD |
REGULATOR Yamaha SCOOTERS, AYA6035, 5ML-H1960-00-00 ZUMA, ROAD, 4HM-H1960-00-00
YAMAHA
ZUMA 125 2009-2014,
Aprilia
ATLANTIC 200cc
ATLANTIC 250cc
Mojito 125cc
Mojito 150cc
SCARABEO 125cc (2000-2007)
SCARABEO 250cc (2000-2007)
SCARABEO 200cc (2000-2007)
SPORTCITY 125cc
SPORTCITY 200cc SR IE 50cc
Benelli
ADIVA 125cc
ADIVA 150cc
Derbi BOULEVARD 125cc
BOULEVARD 150cc
BOULEVARD 200cc GP1 250cc
RAMBLA 125cc
Gilera
DNA 4T 125cc
DNA 4T 180cc
Nexus 125cc
Runner Purejet 50cc
VX Runner 125cc
VXR Runner 180cc
VXR Runner 200cc
Italjet
Jet Set 125cc
Jet Set 150cc
Torpedo 150cc
Torpedo 125cc
OEM: 02601600
Malaguti
F12 Max 200cc
F12 Max 250cc
Madison 180cc
Madison 200cc
Madison 250cc
Piaggio
Beverly 250cc
Beverly 200cc
Beverly 125cc
Carnaby 200cc
Piaggio
Carnaby 125cc
Fly 150cc Fly 125cc
GTX Super Hexagon 125
GTX Super Hexagon 80
Liberty 200cc
Liberty 150cc
Liberty 125cc
NRG Purejet 50cc
SkipperST 4T 125cc
SkipperST 4T 150cc
Vespa X8 200cc
Vespa ET4 150cc
Vespa ET4 125cc
Vespa X8 125cc
Vespa GT 200cc
Vespa GT 125cc
Vespa LX 150cc
Vespa LX 125cc
X9 125cc
X9 180cc
X9 200cc
X9 250cc
Zip 4T 125cc
| Technical specifications | |
| Tension (voltage) | 12 [V] |
| Corriente (current) | 25 [A] |
| Tipo de entrada (input type) | TRIFASICO |
| Tecnologia (technology) | SCR |
| Tipo de salida (output type) | CC |
| Alto (height) | 28 [mm] |
| Ancho (width) | 70 [mm] |
| Largo (length) | 80 [mm] |
| Con sensor (with sensor) | NO |
| dze that apply to | |||||
| Brand | Model | Version | Displacement | Year | OEM |
| Aprilia | – | AP8127418 | |||
| Aprilia | Atlantic | 200 | 82501R – 58090R | ||
| Aprilia | Atlantic | 250 | 82501R – 58090R | ||
| Aprilia | Mojito | 150 | 82501R – 58090R | ||
| Aprilia | Mojito | 125 | 82501R – 58090R | ||
| Aprilia | SR | ie | 50 | 82501R – 58090R | |
| Aprilia | Scarabeo | 200 | from 2000 to 2007 | 82501R – 58090R | |
| Aprilia | Scarabeo | 250 | from 2000 to 2007 | 82501R – 58090R | |
| Aprilia | Scarabeo | 125 | from 2000 to 2007 | 82501R – 58090R | |
| Aprilia | Sport City | 125 | 82501R – 58090R | ||
| Aprilia | Sport City | 200 | 82501R – 58090R | ||
| Benelli | ADIVA | 150 | |||
| Benelli | ADIVA | 125 | from 2001 to 2002 | R51540081A0 | |
| Benelli | ADIVA | 125 | |||
| Benelli | ADIVA | 150 | from 2001 to 2002 | R51540081A0 | |
| Benelli | Terciopelo | 400 | from 2003 to 2004 | R51540081A0 | |
| Derbi | BOULEVARD | 150 | |||
| Derbi | BOULEVARD | 125 | |||
| Derbi | BOULEVARD | 200 | |||
| Derbi | GP1 | 250 | |||
| Derbi | RAMBLA | 125 | |||
| Gilera | DNA | 4T | 180 | 82501R – 58090R | |
| Gilera | DNA | 4T | 125 | 82501R – 58090R | |
| Gilera | Nexus | 125 | 82501R – 58090R | ||
| Gilera | Runner | Purejet | 50 | 82501R – 58090R | |
| Gilera | VX | Runner | 125 | 82501R – 58090R | |
| Gilera | VXR | Runner | 180 | 82501R – 58090R | |
| Gilera | VXR | Runner | 200 | 82501R – 58090R | |
| Italjet | Jet Set | 125 | |||
| Italjet | Jet Set | 150 | |||
| Italjet | Torpedo | 125 | |||
| Italjet | Torpedo | 150 | |||
| Malaguti | F12 | Max | 200 | 02601600 | |
| Malaguti | F12 | Max | 250 | 02601600 | |
| Malaguti | Madison | 250 | 02601300 | ||
| Malaguti | Madison | 180 | 02602300 | ||
| Malaguti | Madison | 200 | 02602300 | ||
| Malaguti | Madison 3 | 125 | from 2006 to 2009 | 02602900 | |
| Malaguti | Phantom Max | 200 | 02602300 | ||
| Malaguti | Phantom Max | 250 | 02602300 | ||
| Piaggio | – | 486062 | |||
| Piaggio | Beverly | 250 | 82501R – 58090R | ||
| Piaggio | Beverly | 125 | 82501R – 58090R | ||
| Piaggio | Beverly | 200 | 82501R – 58090R | ||
| Piaggio | Carnaby | 125 | 82501R – 58090R | ||
| Piaggio | Carnaby | 200 | 82501R – 58090R | ||
| Piaggio | Fly | 125 | 82501R – 58090R | ||
| Piaggio | Fly | 150 | 82501R – 58090R | ||
| Piaggio | GTX | Super Hexagon | 125 | 82501R – 58090R | |
| Piaggio | GTX | Super Hexagon | 180 | 82501R – 58090R | |
| Piaggio | Liberty | 200 | 82501R – 58090R | ||
| Piaggio | Liberty | 125 | 82501R – 58090R | ||
| Piaggio | Liberty | 150 | 82501R – 58090R | ||
| Piaggio | NRG | Purejet | 50 | 82501R – 58090R | |
| Piaggio | Skipper | ST 4T | 125 | 82501R – 58090R | |
| Piaggio | Skipper | ST 4T | 150 | 82501R – 58090R | |
| Piaggio | Vespa | X8 | 200 | 82501R – 58090R | |
| Piaggio | Vespa | LX | 125 | 82501R – 58090R | |
| Piaggio | Vespa | ET4 | 150 | 82501R – 58090R | |
| Piaggio | Vespa | ET4 | 125 | 82501R – 58090R | |
| Piaggio | Vespa | GT | 200 | 82501R – 58090R | |
| Piaggio | Vespa | X8 | 125 | 82501R – 58090R | |
| Piaggio | Vespa | GT | 125 | 82501R – 58090R | |
| Piaggio | Vespa | LX | 150 | 82501R – 58090R | |
| Piaggio | X9 | 200 | 82501R – 58090R | ||
| Piaggio | X9 | 180 | 82501R – 58090R | ||
| Piaggio | X9 | 125 | 82501R – 58090R | ||
| Piaggio | X9 | 250 | 82501R – 58090R | ||
| Piaggio | Zip | 4T | 125 | 82501R – 58090R | |
– Meets or exceeds OEM quality.
– Direct oem replacement.
– All products are factory tested for 100% reliability at point of sale.
– Designed to handle increased power loads.
– DZE Racing products are a high quality replacement part and carries our guarantee of your satisfaction.
– Please check the image and connection plugs before ordering to avoid mistakes.
– Note. No Returns on Electrical Parts.
Part No. 44-3980.AH (oro2u.com)
Cross reference numbers ONLY.
AYA6035, 4HM-H1960-00-00, 5ML-H1960-00-00, 4HM-81960-01-00, SH640D-12,
AYA6035 ARROWHEAD
230-58196 J & N
AP8127418 APRILIA
718398 HI LEVEL
32800-H01-413 HYOSUNG
02601600 MALAGUTI
735871 PEUGEOT
737918 PEUGEOT
486062 PIAGGIO
58090R PIAGGIO
639169 PIAGGIO
82501R PIAGGIO
SH640D-12 SHINDENGEN
4HM-H1960-00-00 YAMAHA
5ML-H1960-00-00 YAMAHA
