| Product Type | Voltage Reulator |
|---|---|
| Product Group | Ignition & Electrical Parts |
| Catalogue | ROAD |
| Size | 12v/35a |

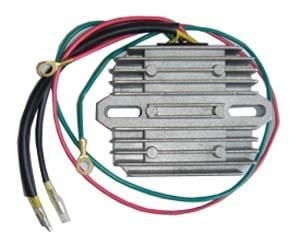

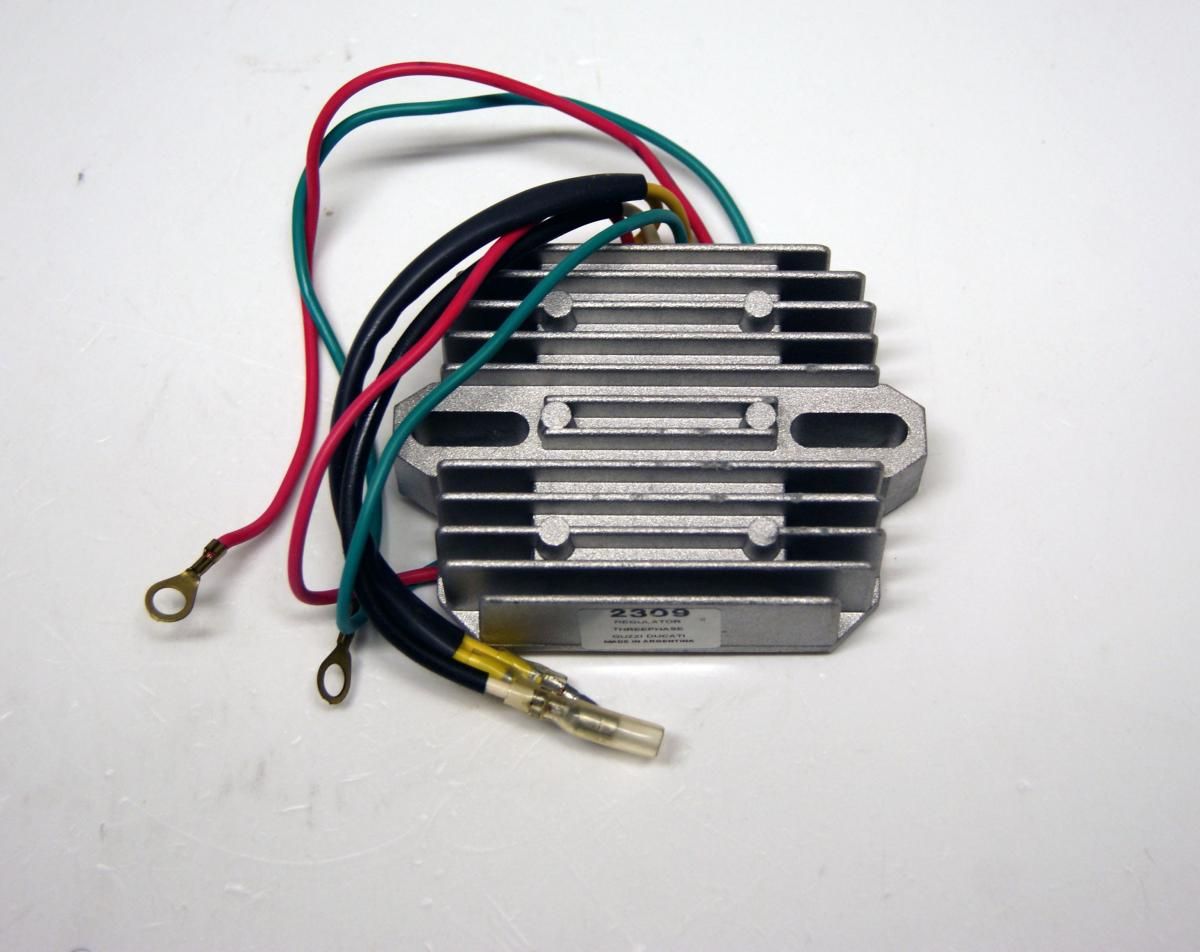

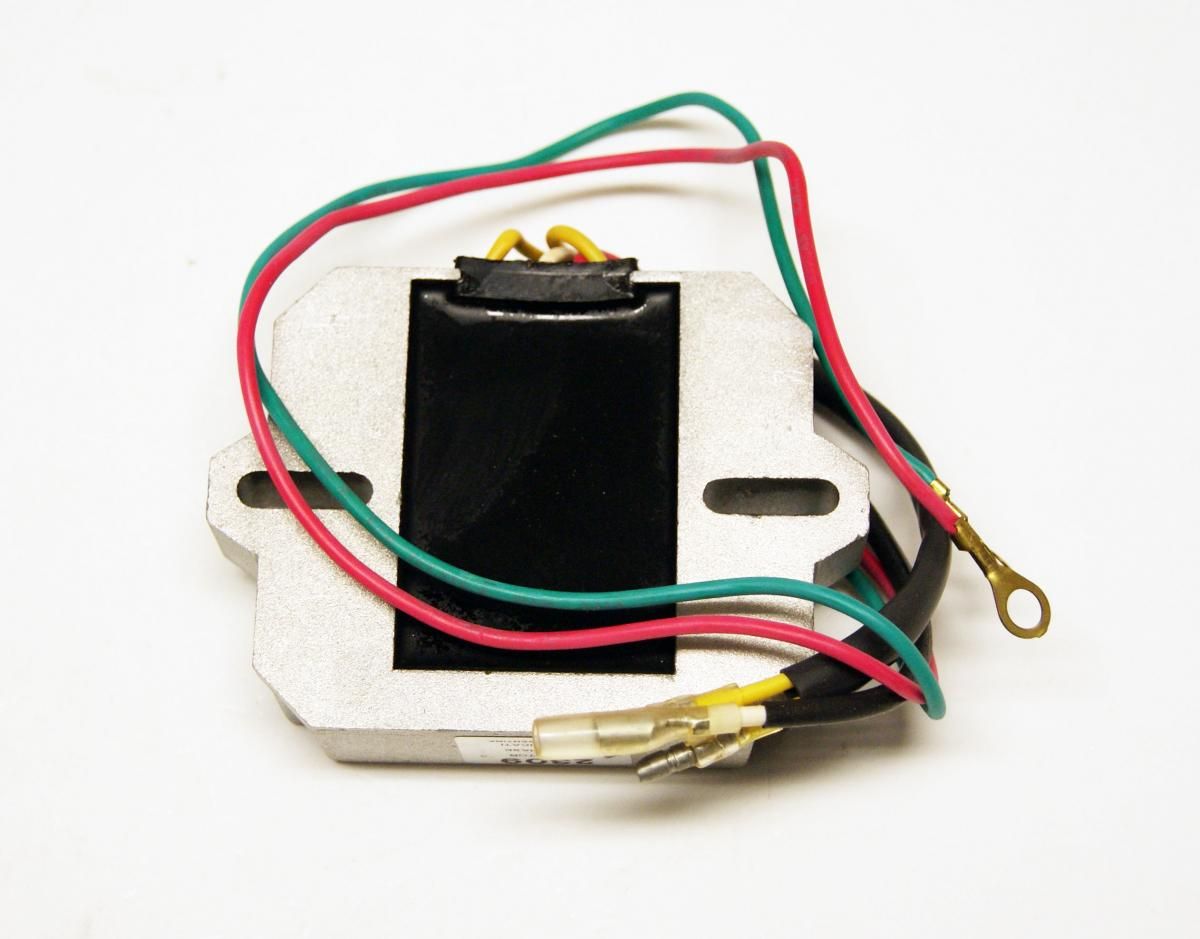

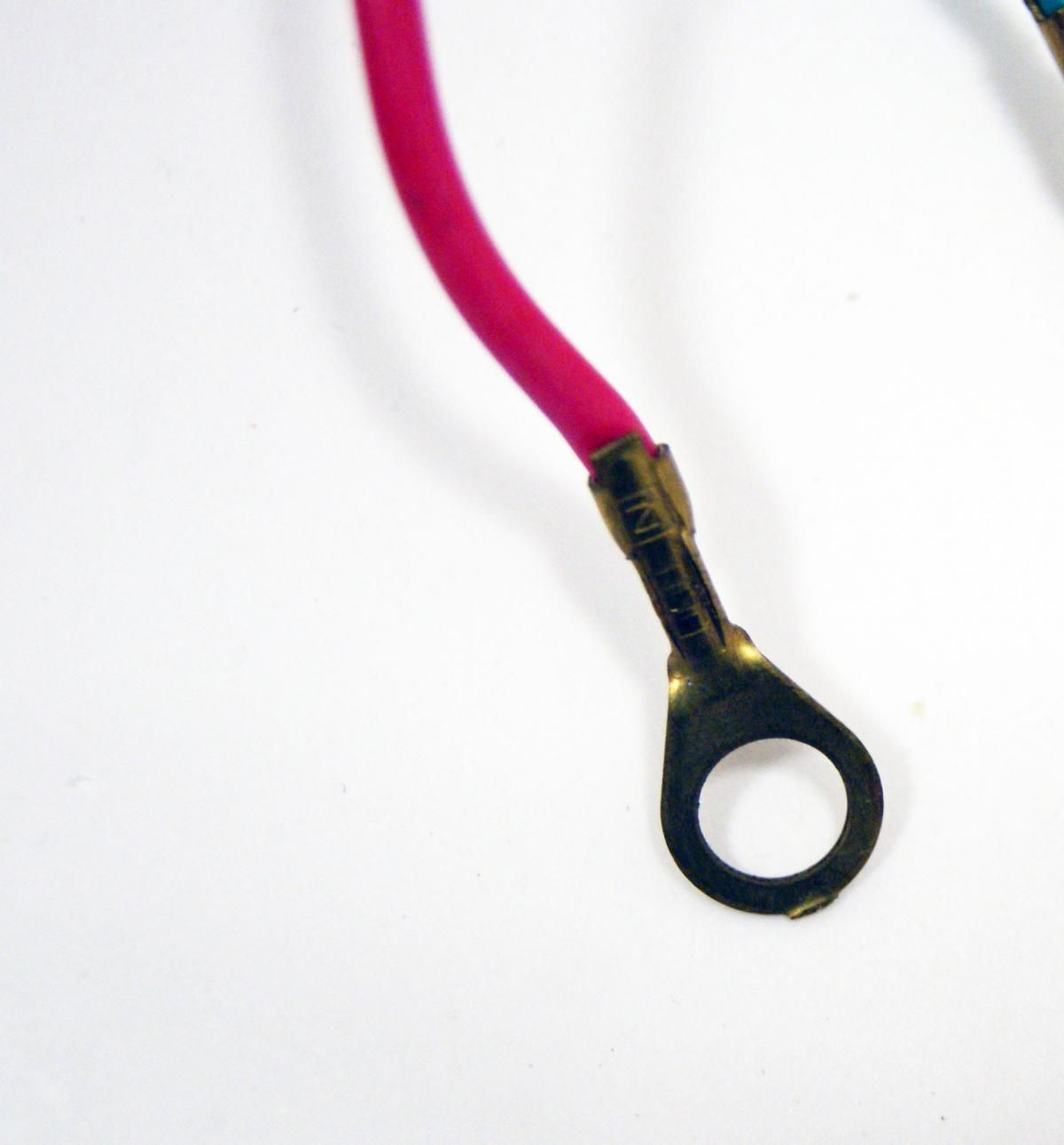

REGULATOR VOLTAGE 12v / 35A, DZE 02309-04 DUCATI, LAVERDA, MOTO GUZZI
| Technical specifications | |
| Tension (voltage) | 12 [V] |
| Corriente (current) | 35 [A] |
| Tipo de entrada (input type) | MONOFASICO |
| Tecnologia (technology) | SCR |
| Tipo de salida (output type) | CC |
| Alto (height) | 28 [mm] |
| Ancho (width) | 80 [mm] |
| Largo (length) | 107 [mm] |
| Entre centro (pitch) | 74 [mm] |
| Con sensor (with sensor) | NO |
| dze products that apply to | |||||
| Brand | Model | Version | Displacement | Year | OEM |
| Ducati | – | ||||
| Ducati | 748 | 1997 | |||
| Ducati | 750 | Paso | from 1987 to 2001 | ||
| Ducati | 750 | Sport | from 1987 to 2001 | ||
| Ducati | 750 | F1 | from 1987 to 2001 | ||
| Ducati | 750 | SS | from 1987 to 2001 | ||
| Ducati | 851 | from 1990 to 1993 | |||
| Ducati | 888 | from 1990 to 1993 | |||
| Ducati | 900 | ST2 | from 1988 to 1998 | ||
| Ducati | 900 | SSR | from 1989 to 1993 | ||
| Ducati | 900 | Superlight | from 1989 to 1993 | ||
| Ducati | 900 | SS | from 1989 to 1993 | ||
| Ducati | 900 | DARMAH | |||
| Ducati | 900 | Monster | from 1993 to 1997 | ||
| Ducati | 906 | Paso 907 I.E. | from 1989 to 1993 | ||
| Ducati | 916 | from 1994 to 1998 | |||
| Ducati | Pantah | GT | |||
| Laverda | – | Ducati | |||
| Moto Guzzi | – | Ducati | |||
– Meets or exceeds OEM quality.
– Direct oem replacement.
– All products are factory tested for 100% reliability at point of sale
– Designed to handle increased power loads.
– DZE Racing products are a high quality replacement part and carries our guarantee of your satisfaction.
– Note. No Returns on Electrical Parts.
Cross reference numbers ONLY.
02309-04
