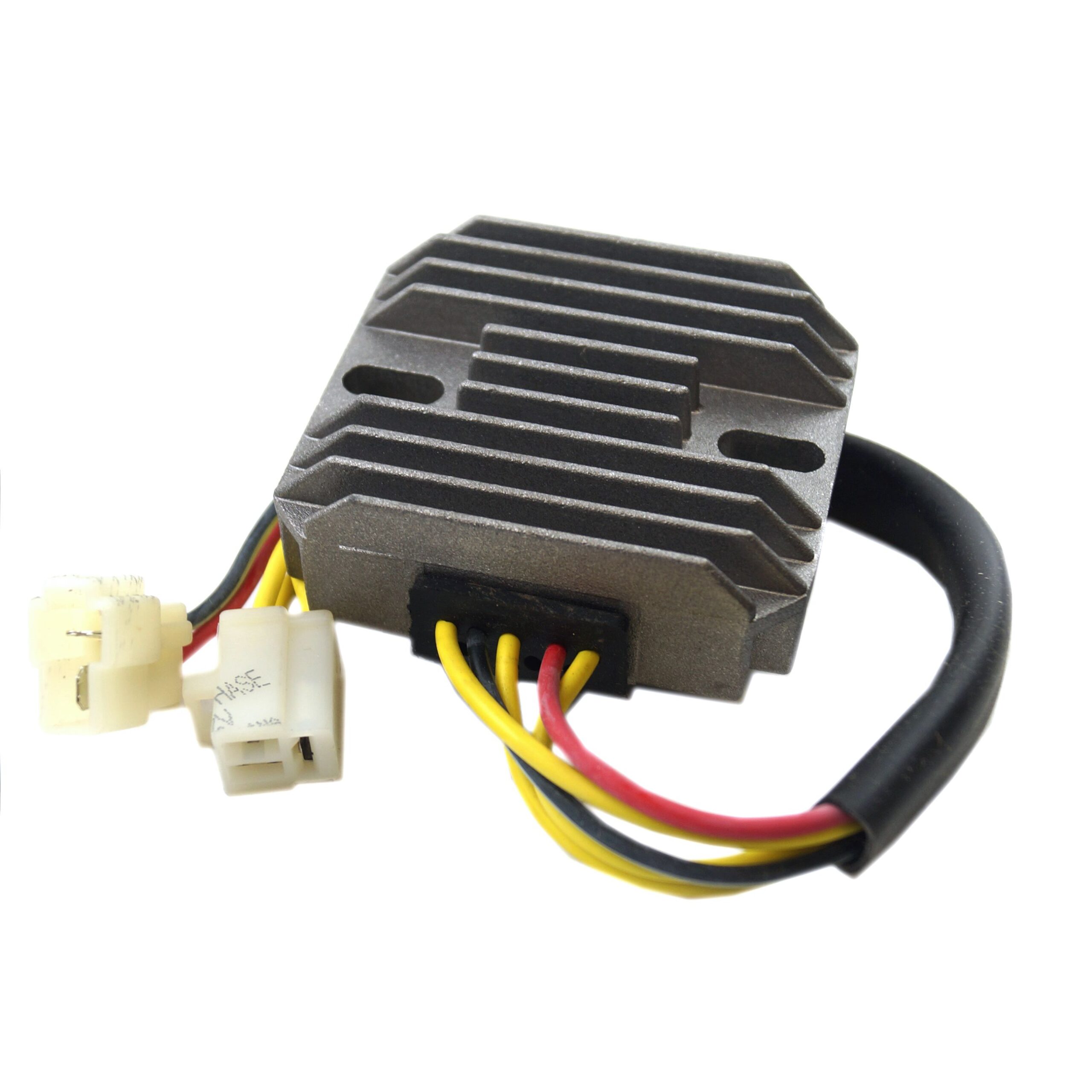

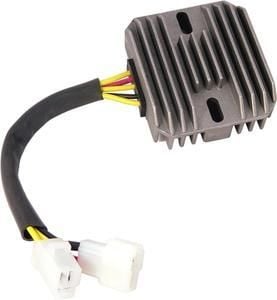

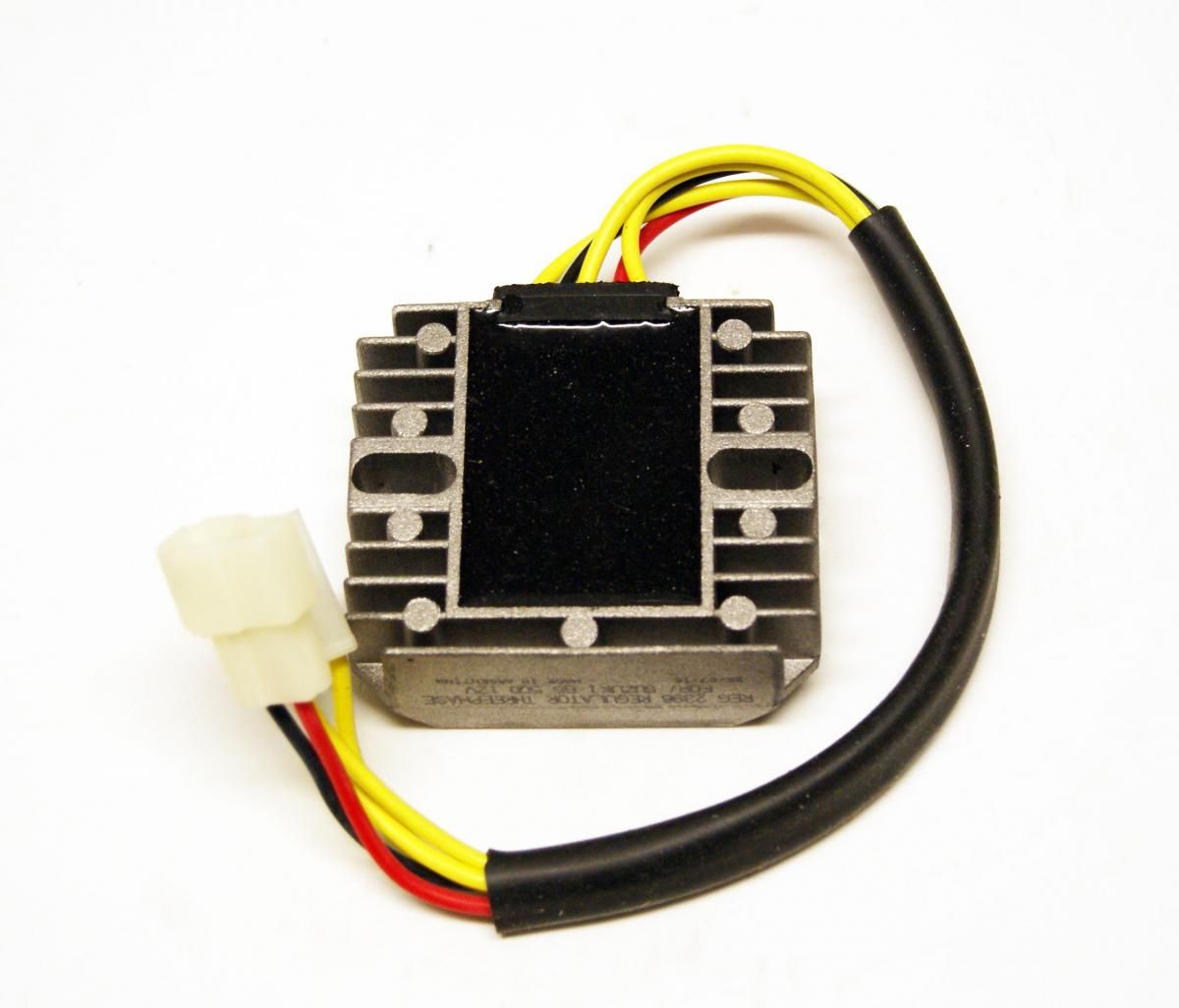

REGULATOR VOLTAGE 12v / 25A, DZE 02396-04 32800-30B01/ 32800-33C00 32800-33C01
Brand: DZE Electrics
Out of Stock
| Product Type | Voltage Reulator |
|---|---|
| Product Group | Ignition & Electrical Parts |
| Catalogue | ROAD |
| Size | 12v/25a |
REGULATOR VOLTAGE 12v / 25A, DZE 02396-04 32800-30B01/ 32800-33C00 32800-33C01

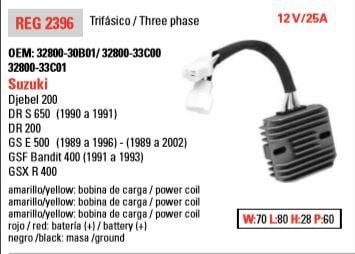

| Información técnica | |
| Tension (voltage) | 12 [V] |
| Corriente (current) | 25 [A] |
| Tipo de entrada (input type) | TRIFASICO |
| Tecnologia (technology) | SCR |
| Tipo de salida (output type) | CC |
| Alto (height) | 28 [mm] |
| Ancho (width) | 70 [mm] |
| Largo (length) | 80 [mm] |
| Entre centro (pitch) | 60 [mm] |
| Con sensor (with sensor) | NO |
| Productos dze que aplican a | |||||
| Marca | Modelo | Versión | Cilindrada | Año | Cod. OEM |
| Suzuki | DR | S | 650 | de 1990 a 1991 | 32800-30B01 |
| Suzuki | DR | 200 | |||
| Suzuki | Djebel | 200 | |||
| Suzuki | GS | E | 500 | de 1989 a 1996 | 32800-30B01 |
| Suzuki | GS | E | 500 | de 1989 a 2002 | 32800-33C00 |
| Suzuki | GSF | Bandit | 400 | de 1991 a 1993 | 32800-33C01 |
| Suzuki | GSX | R | 400 | de 1990 a 1994 | 32800-33C00 |
– Meets or exceeds OEM quality.
– Direct oem replacement.
– All products are factory tested for 100% reliability at point of sale
– Designed to handle increased power loads.
– DZE Racing products are a high quality replacement part and carries our guarantee of your satisfaction.
– Note. No Returns on Electrical Parts.
Cross reference numbers ONLY.
32800-30B01/ 32800-33C00 32800-33C01 , 02396-04
230-58242 ARROWHEAD
230-58242 J & N
ASU6027 ARROWHEAD (OLD)
717835 HI LEVEL
32800-30B01 SUZUKI
32800-33B01 SUZUKI
32800-33C00 SUZUKI
32800-33C01 SUZUKI
Suzuki DR 650 S 1990, 1991
Suzuki DR 650 S 1990, 1991
Suzuki GS500 2001, 2002
Suzuki GS500 2001, 2002
Suzuki GS500E 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002
Suzuki GS500E 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002
Suzuki GSF400 Bandit 1991, 1992, 1993
Suzuki GSF400 Bandit 1991, 1992, 1993
