REGULATOR REG 2525 02525-04, HONDA XL / XR 31600-KA2-751, 31600-KA2-752, 31600-KG0-000, 31600-MBN-650, 31600-MBN-651, 31600-MC4-00
REGULATOR REG 2525 02525-04, HONDA XL / XR 31600-KA2-751, 31600-KA2-752, 31600-KG0-000, 31600-MBN-650, 31600-MBN-651, 31600-MC4-00 - Image 2
REGULATOR REG 2525 02525-04, HONDA XL / XR 31600-KA2-751, 31600-KA2-752, 31600-KG0-000, 31600-MBN-650, 31600-MBN-651, 31600-MC4-00 - Image 3
REGULATOR REG 2525 02525-04, HONDA XL / XR 31600-KA2-751, 31600-KA2-752, 31600-KG0-000, 31600-MBN-650, 31600-MBN-651, 31600-MC4-00 - Image 4
REGULATOR REG 2525 02525-04, HONDA XL / XR 31600-KA2-751, 31600-KA2-752, 31600-KG0-000, 31600-MBN-650, 31600-MBN-651, 31600-MC4-00 - Image 5
REGULATOR REG 2525 02525-04, HONDA XL / XR 31600-KA2-751, 31600-KA2-752, 31600-KG0-000, 31600-MBN-650, 31600-MBN-651, 31600-MC4-00 - Image 6

REGULATOR REG 2525 02525-04, HONDA XL / XR 31600-KA2-751, 31600-KA2-752, 31600-KG0-000, 31600-MBN-650, 31600-MBN-651, 31600-MC4-00

£32.70

DZE Electrics
DZE Electrics
SKU: 44-9957.DZE

Brand: DZE Electrics

Stock: 2

2 in stock

Categories: , ,
Product Type

Voltage Reulator
Product Group

Ignition & Electrical Parts
Catalogue

DIRT
Alternate SKU's

2525, 31600-KA2-752, , 31600-KA2-751, 31600-MBN-650, 31600-MBN-651

REGULATOR REG 2525 02525-04, HONDA XL / XR 31600-KA2-751, 31600-KA2-752, 31600-KG0-000, 31600-MBN-650, 31600-MBN-651, 31600-MC4-00

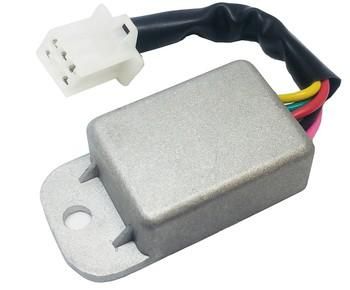

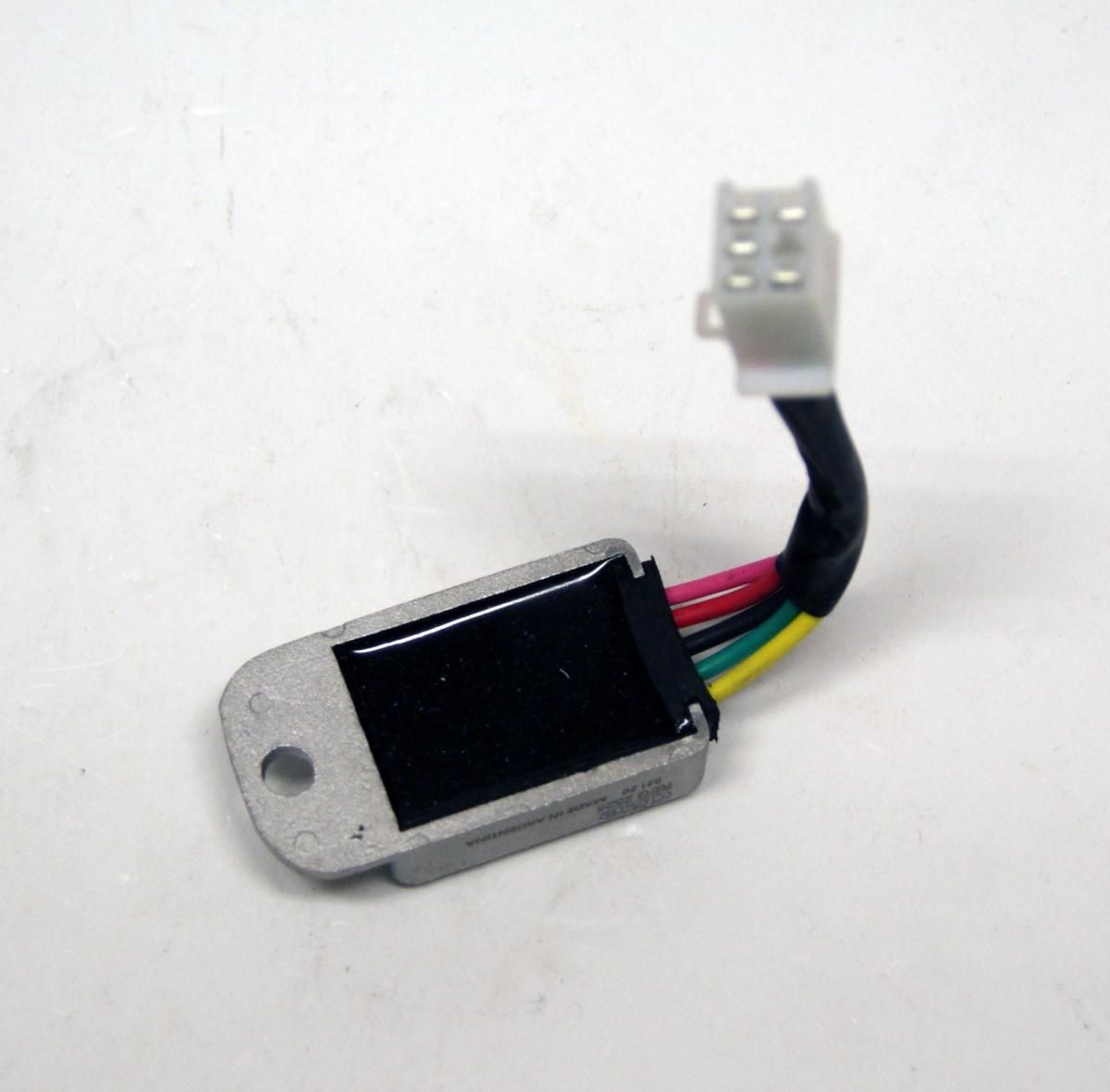

Voltage regulator/rectifier compatible with Honda XL models, including XL200R, XL250R, XL350R, XL500R, and XL600R. Designed as a high-quality OEM replacement, this part ensures reliable performance and meets or exceeds original specifications. Factory-tested for dependability. Please note: Electrical parts are non-returnable.

Features:

  • High-quality OEM replacement.
  • Factory-tested for 100% reliability.

Specifications:

  • Voltage: 12V
  • Current: 12A
  • Input Type: Monofásico
  • Technology: SCR
  • Output Type: CC (Direct Current)

Dimensions:

  • Height: 22mm
  • Width: 37mm
  • Length: 55mm
  • With Sensor: Yes

Cross-Reference OEM Part Numbers:
ESP 2525, 02525-04
Arrowhead: ESP2525
Hi Level: 715842
Honda: 31600-KA2-751, 31600-KA2-752, 31600-KG0-000, 31600-MBN-650, 31600-MBN-651, 31600-MC4-000
Shindengen: SH542D-12

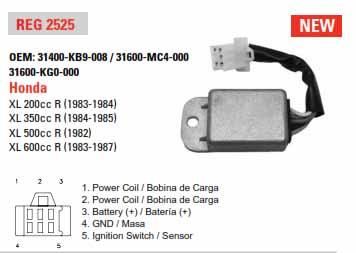

Vehicle Compatibility:
Honda XL Models:

  • XL200R (1983–1984) [OEM: 31600-KG0-000]
  • XL250R (1984–1987) [OEM: 31400-KB9-008]
  • XL350R (1984–1985) [OEM: 31400-KB9-008]
  • XL500R (1982) [OEM: 31600-MC4-000]
  • XL600R (1983–1987) [OEM: 31600-KG0-000]

Part Number: 44-9957.DZE
