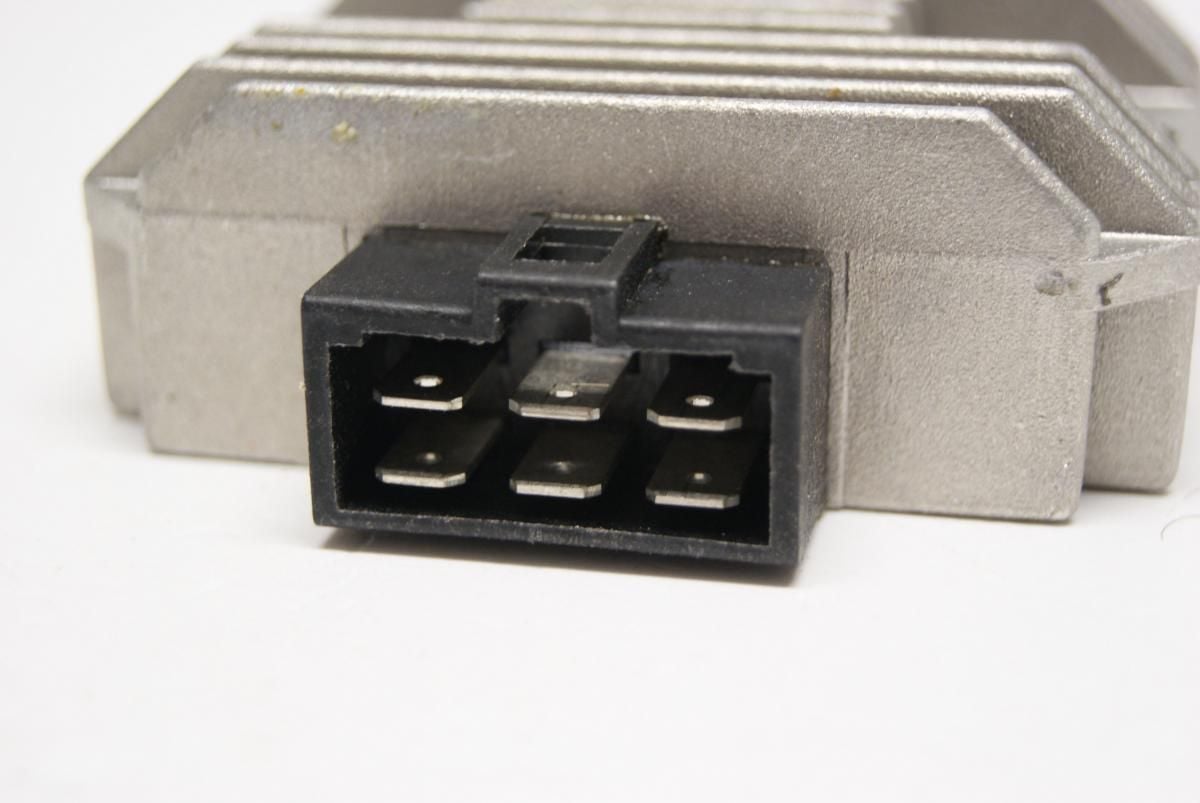

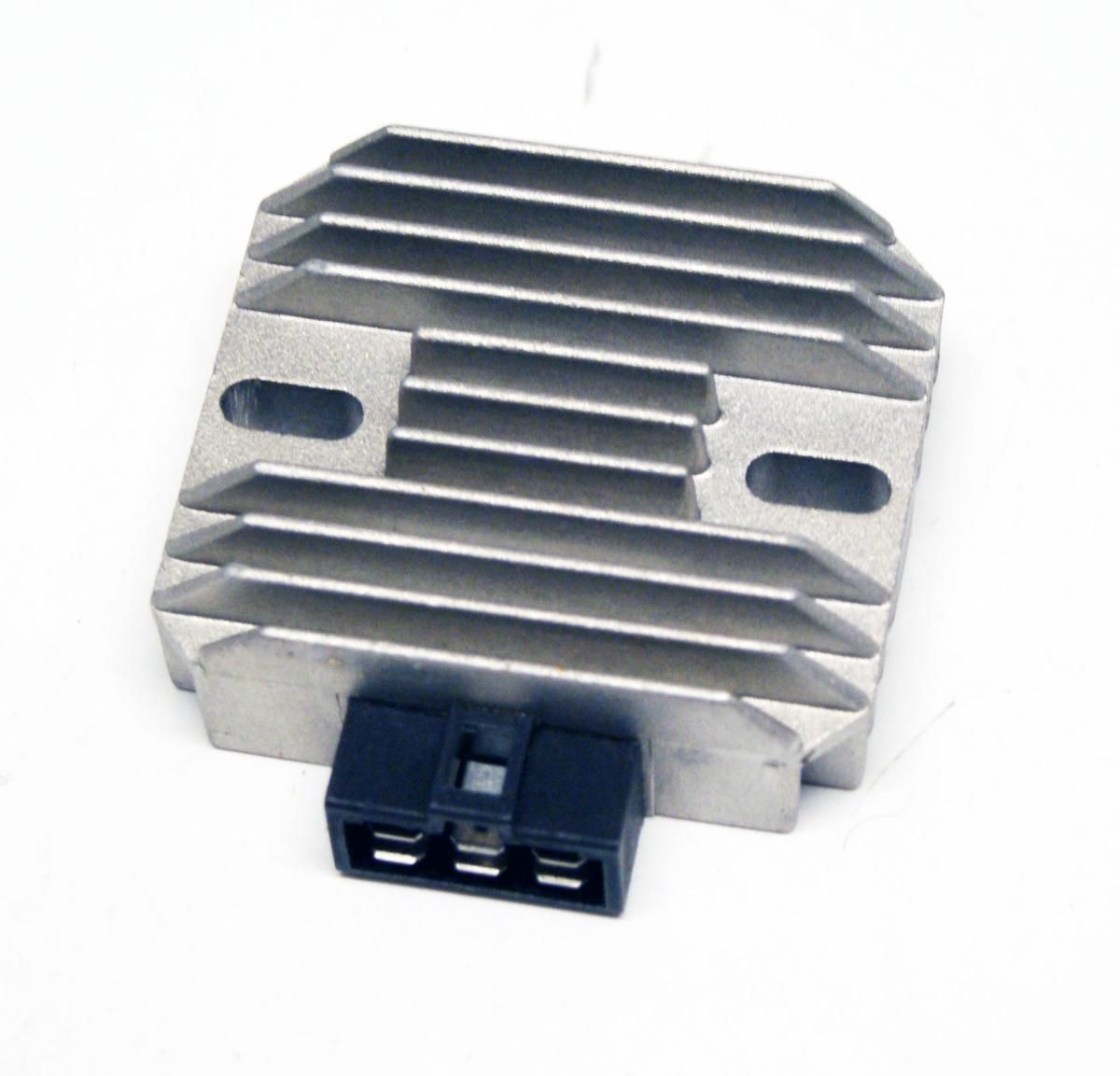

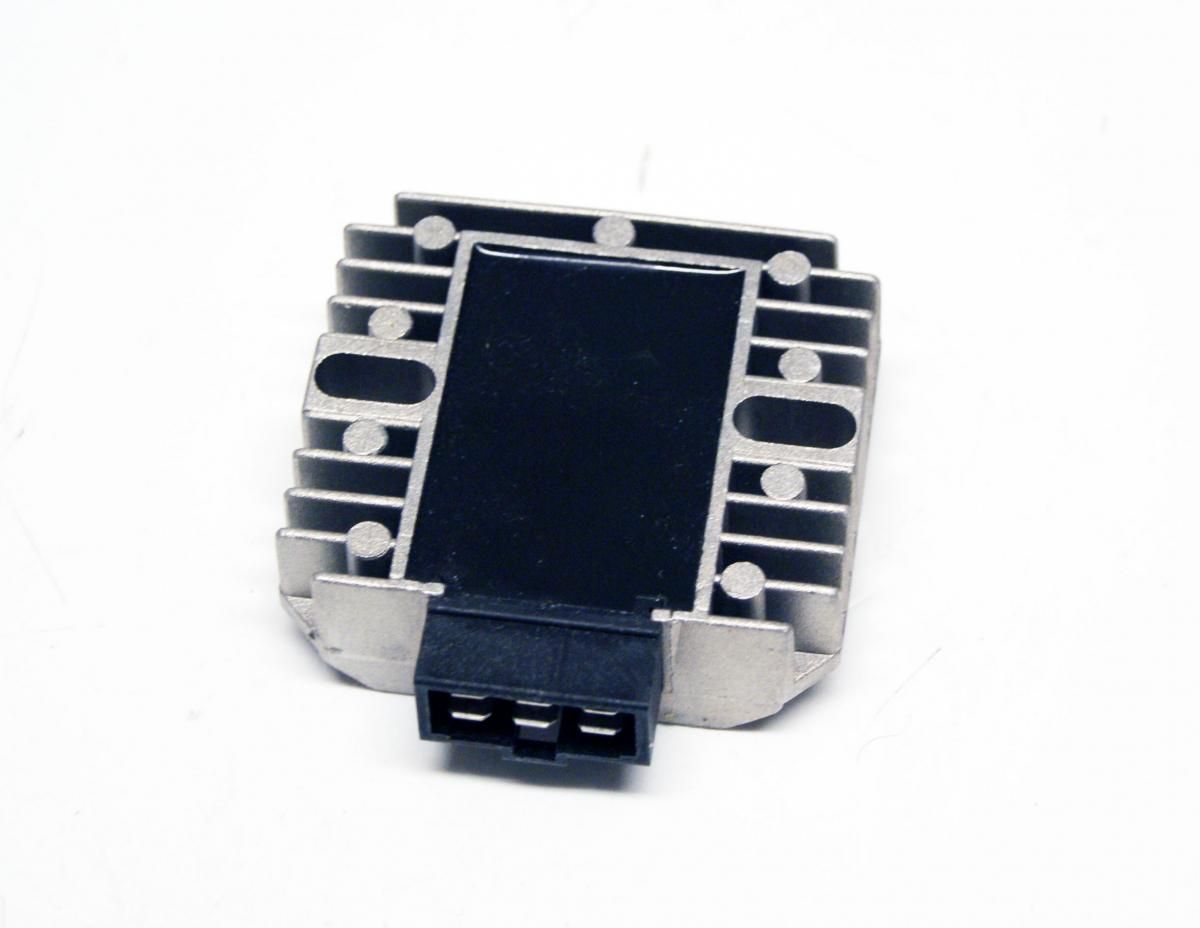

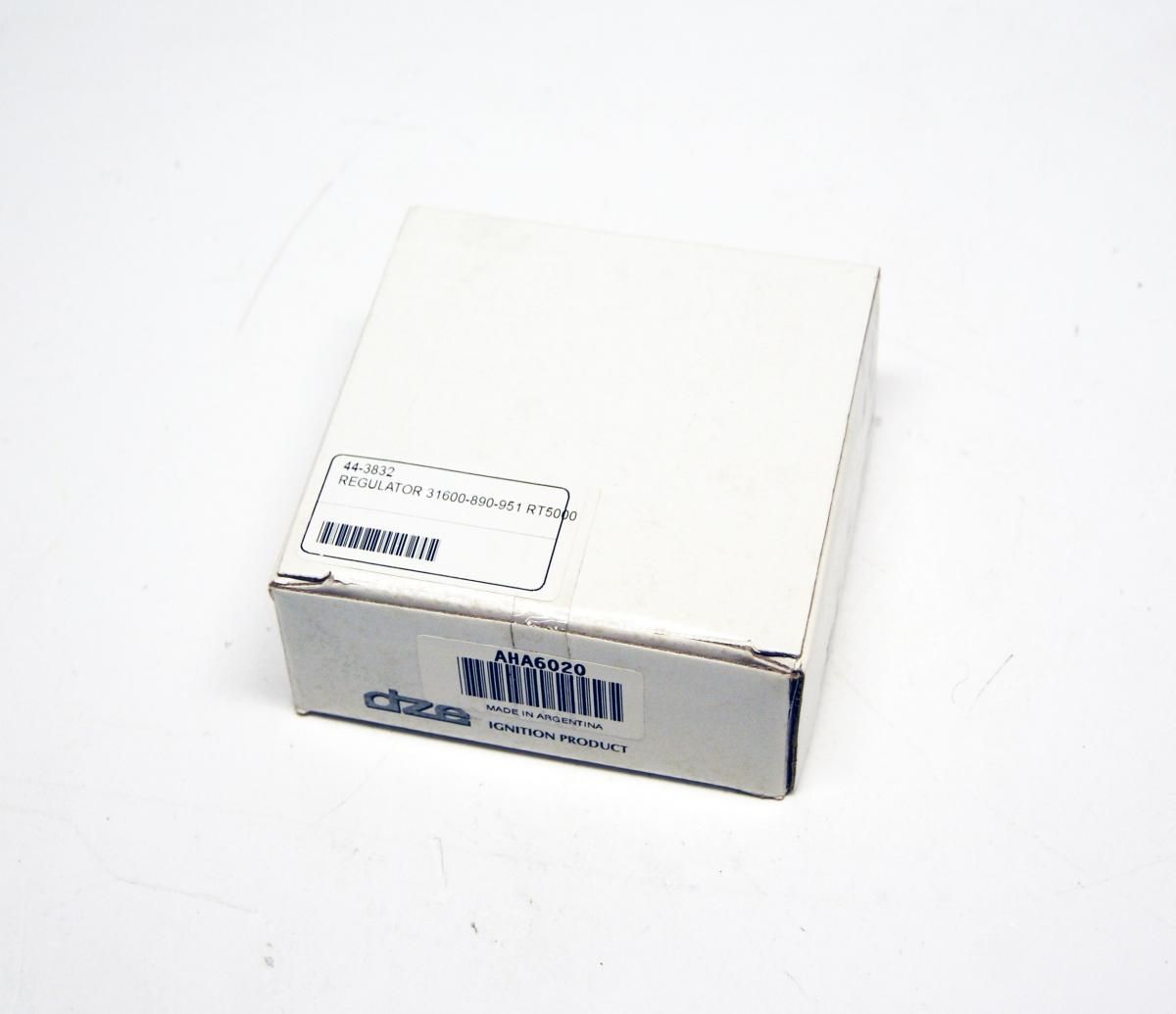

REGULATOR 31600-890-951 RT5000, ESP2320 ATV, AHA6020 HONDA LAWN

Honda
Lawn and Garden Equipment
Including H4013, H4514H, H4518H, H5013, HT3813, HT4213, RT5000 Lawn Tractors
Addl Info: 14.7 Volt Set Point
Addl Info: Shunt Type
Addl Info: Terminals B+, IGN, B-, AC, AC

VOLTAGE REGULATOR ARROWHEAD AHA6020

Cross Reference Numbers Only:
AHA6020 ARROWHEAD , ESP2320 ARROWHEAD (OEM)   , 230-22065 J & N   , 8099-1300 PIC   , J4000 BARSANCO
31600-890-951 HONDA , 31600-ZE2-861 HONDA   , HN9951 RCP   , SH547-12 SHINDENGEN   , HN9951 ,

Note.
Original Regulators May Have Come With 5-Terminals, While Replacement Regulators May Have 6-Terminals. The 6th Terminal is a Dummy and Not Connected. Originally We Were Told it Was For a Light, But This is Not Supported By Any Info in the Field.
