| Product Type | Shock Seal Block |
|---|---|
| Product Group | Suspension & Drive Parts |
| Catalogue | ATV, DIRT |
| Size | 18×46 |
REAR SHOCK SEAL BLOCK 18.0×46, ALLBALLS 37-1120 KTM

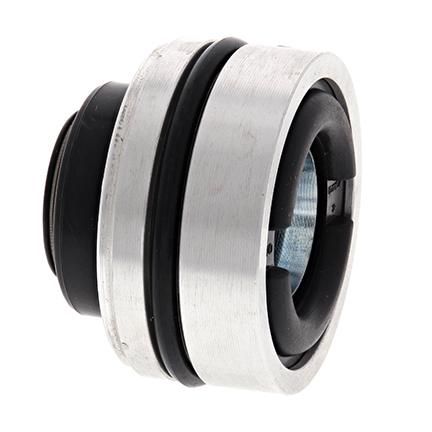

Shock Seal Head Kit – ALLBALLS 37-1120
Product Features:
- Complete assemblies, ready to install into the shock body.
- Made from 6061-T6 aluminum and the same custom elastomer as Moose Racing’s fork seals.
- All have air bleed holes to help remove air from the oil reservoir during installation.
- Double-lip oil seal design keeps out dirt and reduces friction.
- Some models have updated designs for easier installation.
- Kits include: aluminum body, dust seal, bushing, oil seal, O-ring, internal guide bushing/washer, snap ring, and top-out bumper.
Fitment:
Husqvarna:
- TC 85 (2014-2018)
KTM:
- EXC-F 250 (2017-2018)
- EXC-F 350 (2017-2018)
- EXC-F 450 Six Days (2017-2018)
- EXC-F 500 (2017-2018)
- FREERIDE 250 R (2015-2017)
- FREERIDE 350 (EURO) (2015)
- SX 105 (2006-2011)
- SX 450 ATV (2010)
- SX 505 ATV (2010)
- SX 85 (2003-2018)
- SX 85 BW (2013-2018)
- SXS 85 (2013)
- XC 105 (2008-2009)
- XC 85 (2008-2009)
- XC-W 150 (2017-2018)
- XC-W 250 (2017-2018)
- XC-W 250 TPI (2018)
- XC-W 300 (2017-2018)
- XC-W 300 Six Days (2017-2018)

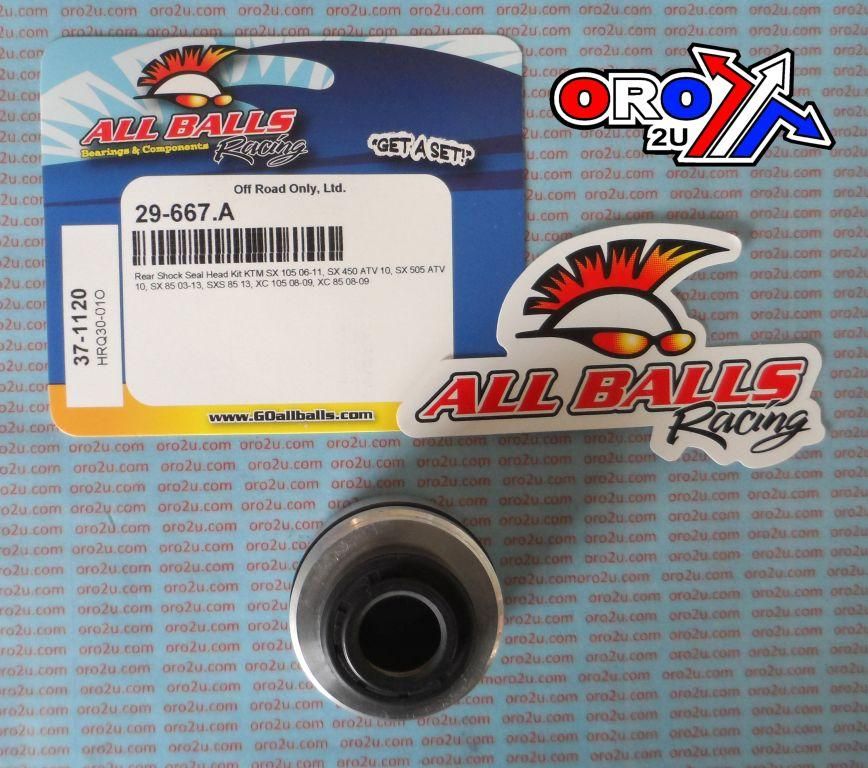

Part No.: ALLBALLS 37-1120
ORO Part No.: 29-667.A (Available at oro2u.com)

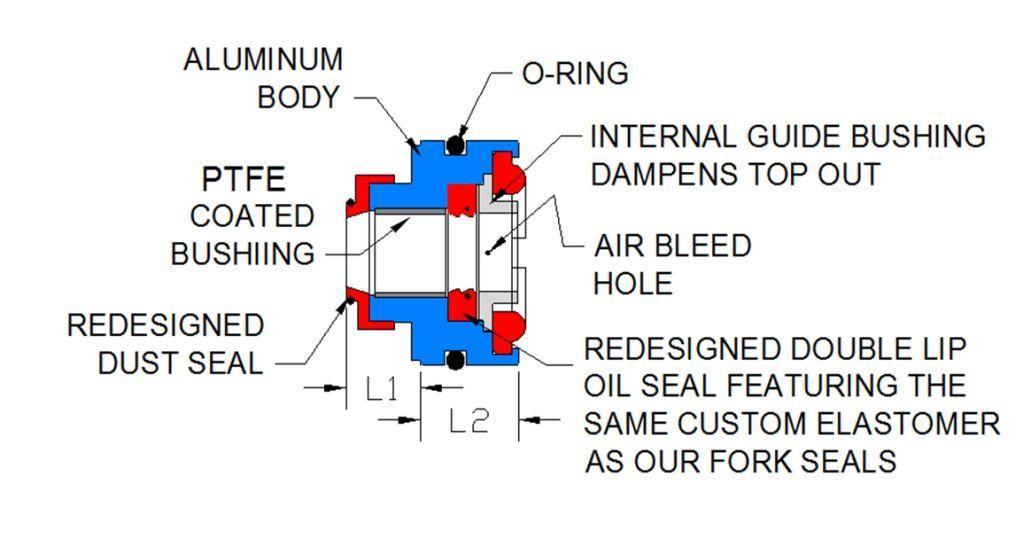

Dimensions:
- Rod Diameter: 18.00mm
- Outside Diameter: 46mm
- Length: 37.50mm
- L1 (Length 1): 15.5mm
- L2 (Length 2): 22mm
