REAR SHOCK SEAL BLOCK 16.0×46, ALLBALLS 37-1004 HONDA KAW SUZ
£44.86
Brand: All Balls Racing
Stock: 1
| Product Type | Shock Seal Block |
|---|---|
| Product Group | Suspension & Drive Parts |
| Catalogue | DIRT |
| Size | 16×46 |
REAR SHOCK SEAL BLOCK 16.0×46, ALLBALLS 37-1004 HONDA KAW SUZ

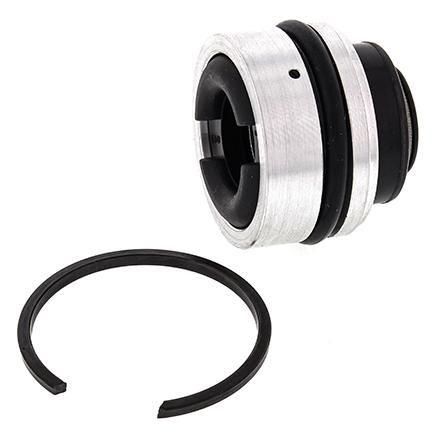

Shock Seal Head Kit – ALLBALLS 37-1004 (1314-0043)
Product Features:
- Complete assemblies, ready to install into the shock body.
- Made from 6061-T6 aluminum and the same custom elastomer as Moose Racing fork seals.
- All have air bleed holes to help remove air from the oil reservoir during installation.
- Double-lip oil seal design keeps out dirt and reduces friction.
- Some models have updated designs for easier installation.

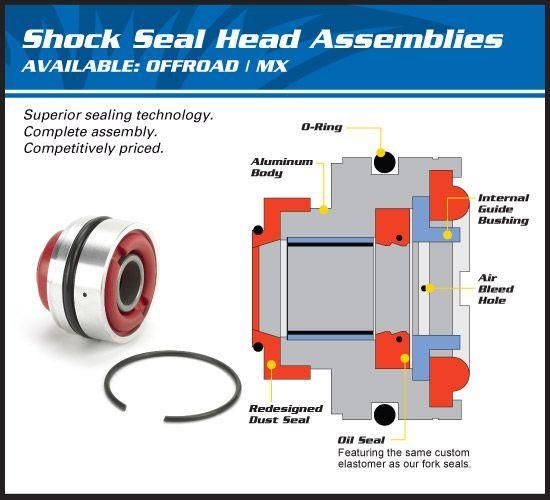

- Kits include: aluminum body, dust seal, bushing, oil seal, O-ring, internal guide bushing/washer, snap ring, and top-out bumper.
- Made in the U.S.A.
Fitment:
Honda:
- CR125R 1993-2007
- CR250R 1995-1996
- CR500R 1995-2001
Kawasaki:
- KLX450R 2008-2009
- KX125 2000-2005
- KX250 2000-2007
- KX250F 2004-2005
- KX450F 2006-2008
Suzuki:
- RMZ250 2004-2006
Yamaha:
- YZ250F 2012-2013

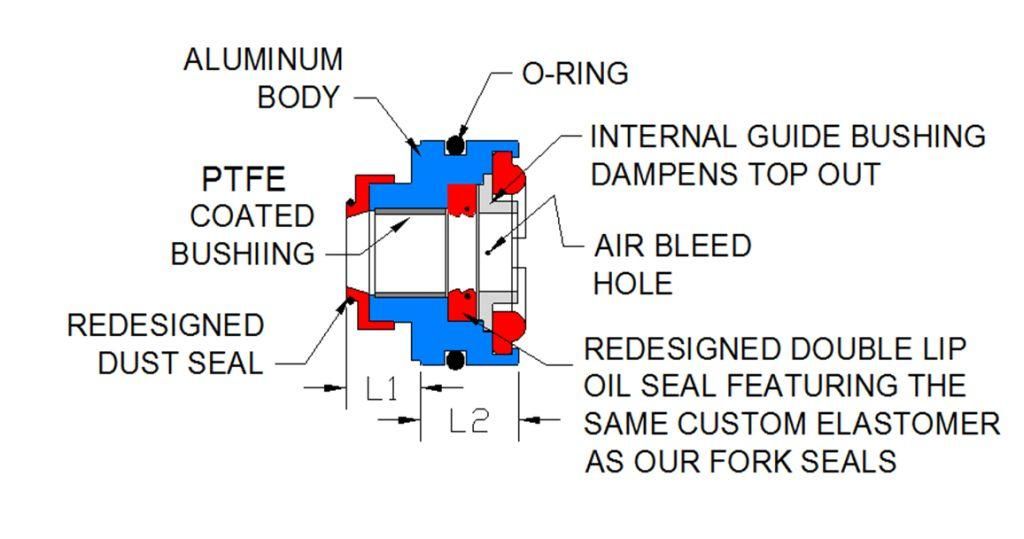

Dimensions:
- Rod Diameter: 16.00mm
- Outside Diameter: 46mm
- Length: 38.50mm
- L1 (Length 1): 17mm
- L2 (Length 2): 21.5mm
- Snap Ring: 46mm x 2mm (round)
Part No.: ALLBALLS 37-1004
ORO Part No.: 29-653.A (Available at oro2u.com)
