REAR SHOCK SEAL BLOCK 16.0×46, ALLBALLS 37-1002 KAW SUZ YAM

Shock Seal Head Kit – ALLBALLS 37-1002 (1314-0041)

Product Features:

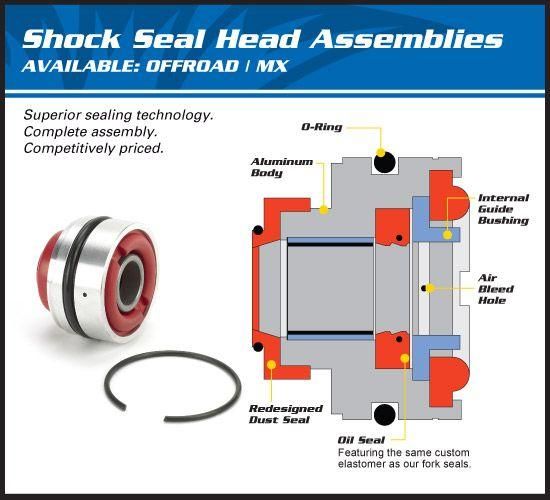

• Complete assemblies, ready to install into the shock body.
• Made from 6061-T6 aluminum and the same custom elastomer as Moose Racing fork seals.
• All have air bleed holes to help remove air from the oil reservoir during installation.
• Double-lip oil seal design keeps out dirt and reduces friction.
• Some models have updated designs for easier installation.
• Kits include: aluminum body, dust seal, bushing, oil seal, O-ring, internal guide bushing/washer, snap ring, and top-out bumper.

Fitment:
Kawasaki:

• KFX450R 08-13
• KX125 93-99
• KX250 86-99
• KX500 86-04

Suzuki:

• RM250 81-03

Yamaha:

• WR250 94-97
• WR250F 01-14
• WR400F 98-00
• WR426F 01-02
• WR450F 03-21
• YZ125 93-05
• YZ250 93-05
• YZ250F 01-05
• YZ400F 98-99
• YZ426F 00-02
• YZ450F 03-05

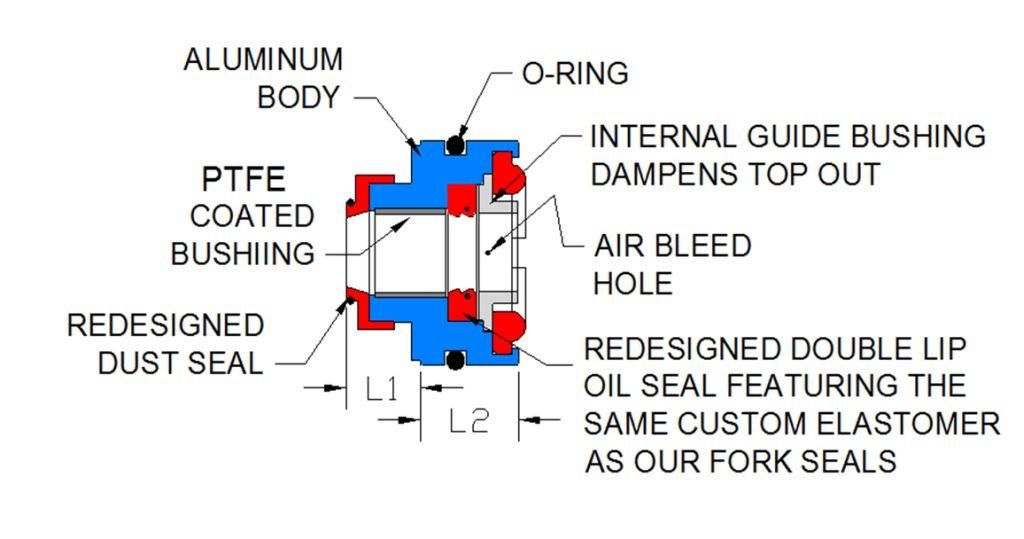

Dimensions:

• Rod Diameter: 16.00mm
• Outside Diameter: 46mm
• Length: 40mm
• L1 (Length 1): 17mm
• L2 (Length 2): 23mm
• Snap Ring: 46mm x 2mm (round)

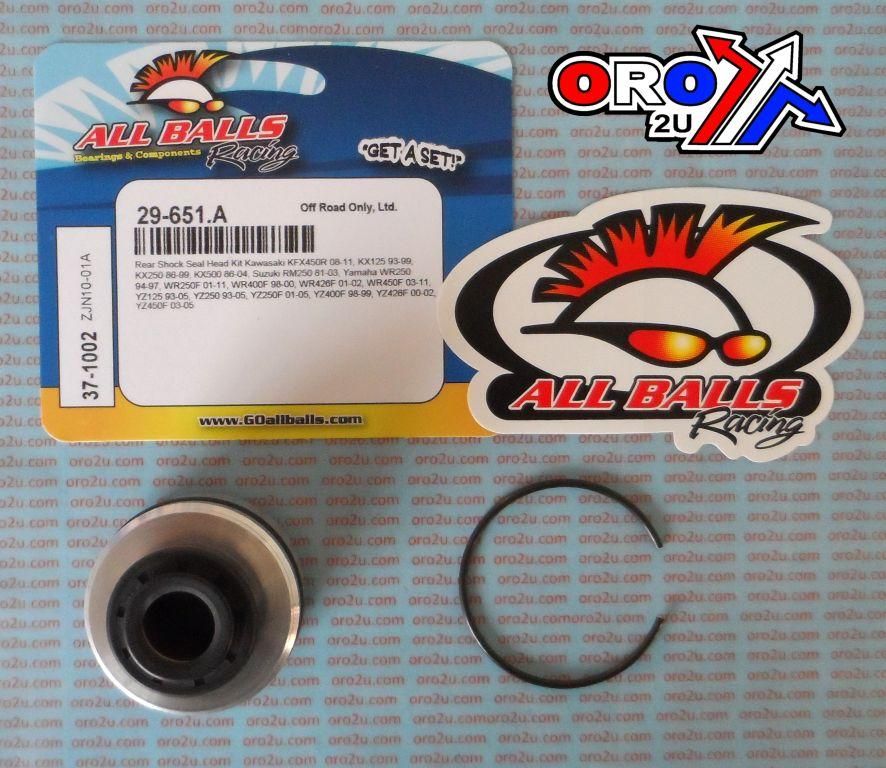

Part No.: ALLBALLS 37-1002
ORO Part No.: 29-651.A (Available at oro2u.com)
