REAR SHOCK SEAL BLOCK 16.0×44, ALLBALLS 37-1003 KX125 250 500
£48.29
Brand: All Balls Racing
Stock: 4
| Product Type | Shock Seal Block |
|---|---|
| Product Group | Suspension & Drive Parts |
| Catalogue | DIRT |
| Size | 16×44 |
REAR SHOCK SEAL BLOCK 16.0×44, ALLBALLS 37-1003 KX125 250 500

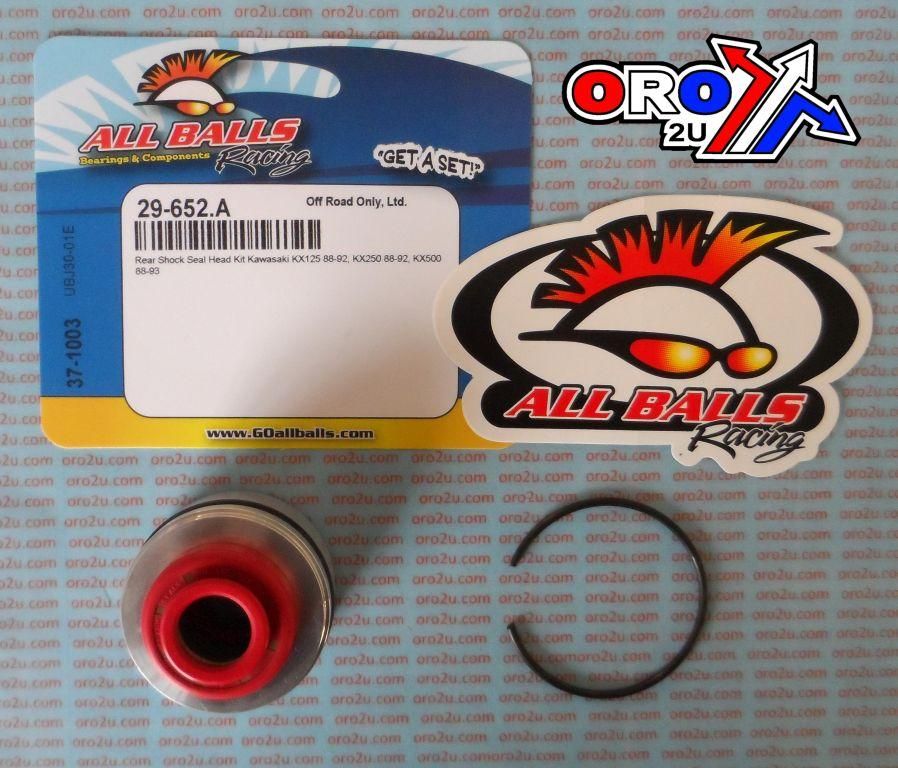

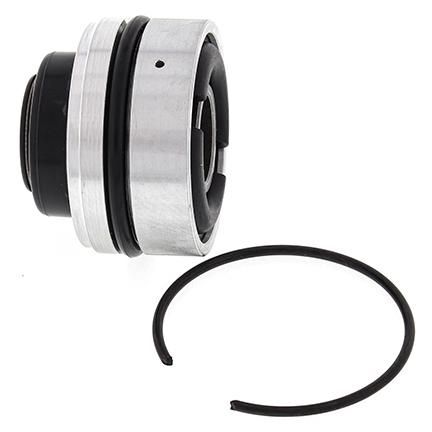

Shock Seal Head Kit – ALLBALLS 37-1003 (1314-0042)

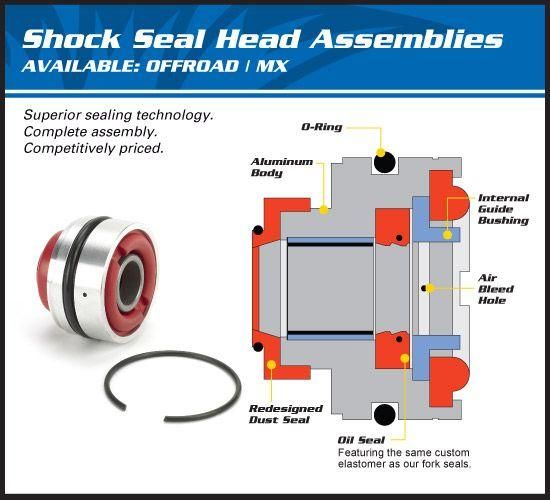

Product Features:
- Complete assemblies, ready to install into the shock body.
- Made from 6061-T6 aluminum and the same custom elastomer as Moose Racing fork seals.
- All have air bleed holes to help remove air from the oil reservoir during installation.
- Double-lip oil seal design keeps out dirt and reduces friction.
- Some models have updated designs for easier installation.

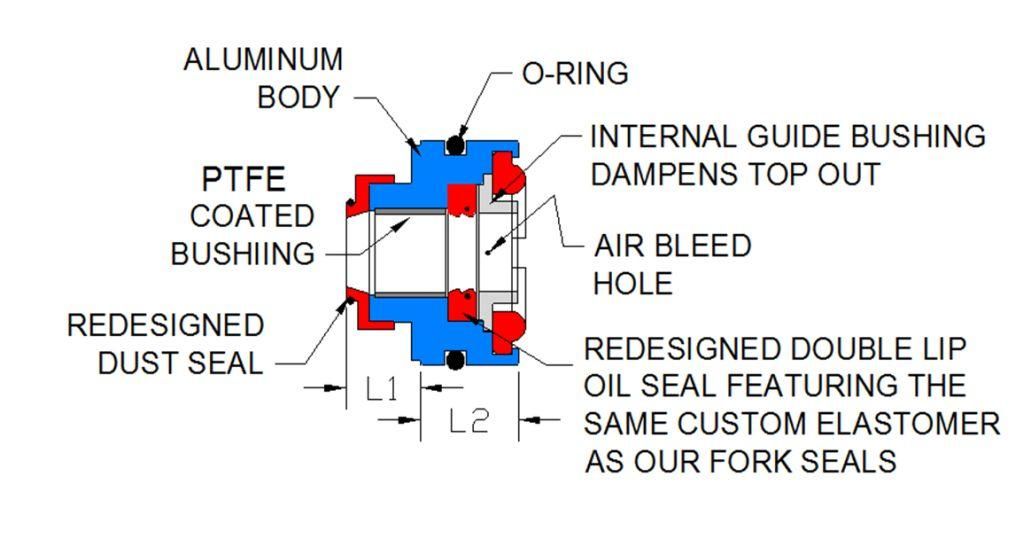

- Kits include: aluminum body, dust seal, bushing, oil seal, O-ring, internal guide bushing/washer, snap ring, and top-out bumper.
- Made in the U.S.A.
Fitment:
Kawasaki:
- KX125 1988-1992
- KX250 1988-1992
- KX500 1988-1993
Dimensions:
- Rod Diameter: 16.00mm
- Outside Diameter: 44mm
- Length: 36.50mm
- L1 (Length 1): 15mm
- L2 (Length 2): 21.5mm
- Snap Ring: 44mm x 2mm (round)
Part No.: ALLBALLS 37-1003
ORO Part No.: 29-652.A (Available at oro2u.com)
