REAR AXLE UNIVERSAL DIY DRIFT KIT FOR GO KART BUGGY TRIKE

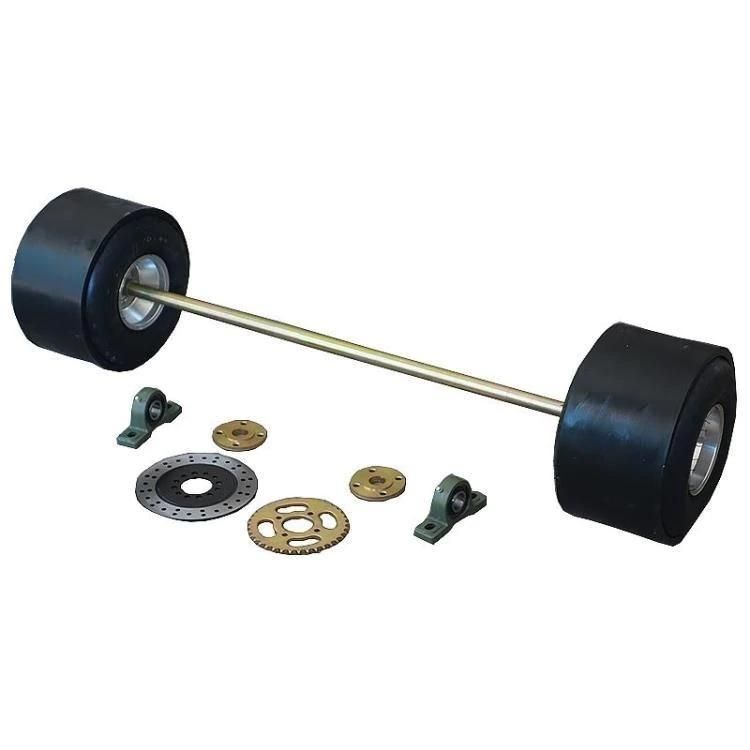

This universal rear axle kit is designed for compatibility with a wide range of off-road vehicles including ATVs, MX bikes, go-karts, and buggies. It includes a 1000mm splined shaft, hubs, carrier bearings, sprocket, disc, and additional mounting components for drivetrain and brake system integration.

Features

• Rear axle suitable for 150cc go-karts
• Total axle length: 1000mm
• Splined ends for hub compatibility
• Includes 2 x 3-hole hubs with internal splines
• Includes 2 x carrier bearings (P205) with grease nipples for lubrication
• 2 x universal sprocket and disc hubs (require welding to shaft)
• Includes 1 x sprocket and 1 x brake disc
• Includes 2 x nylock nuts
• Hole for split pin on both ends

Specifications

Axle Shaft

• Length: 1000mm
• Splined at both ends for hub connection
• Includes hole for split pin at each end
• Includes 2 x nylock nuts

Tyres

• Size: 11 x 7.10-5
• Type: 4-ply racing tubeless

Tyre Plastic Cover

• Dimensions: 290mm x 150mm

Wheel Hubs (2 x 3-hole hubs)

• Hole size: 6.5mm
• Pitch Circle Diameter (PCD): approximately 57.74mm
• Internal splines to mate with shaft
• Threaded mounting holes
• 6 bolts included

Carrier Bearings (2 x P205)

• Inner diameter: 24.5mm
• Mounting hole spacing: 100mm (adjustable by 10–15mm)
• Includes grease nipple for lubrication

Universal Sprocket and Disc Hubs (2 included)

• Inner diameter: 26mm
• Outer diameter: 85mm
• Hole diameter: 8mm
• Number of holes: 4
• PCD: 68mm
• Require welding to shaft

Sprocket

• Tooth count: 37
• Hole size: 8.5mm
• Inner diameter: 48mm

Brake Disc

• Outer diameter: approximately 160mm
• Hole size: 8.5mm
• Inner diameter: 48mm
• Number of holes: 4
• PCD: 68mm
