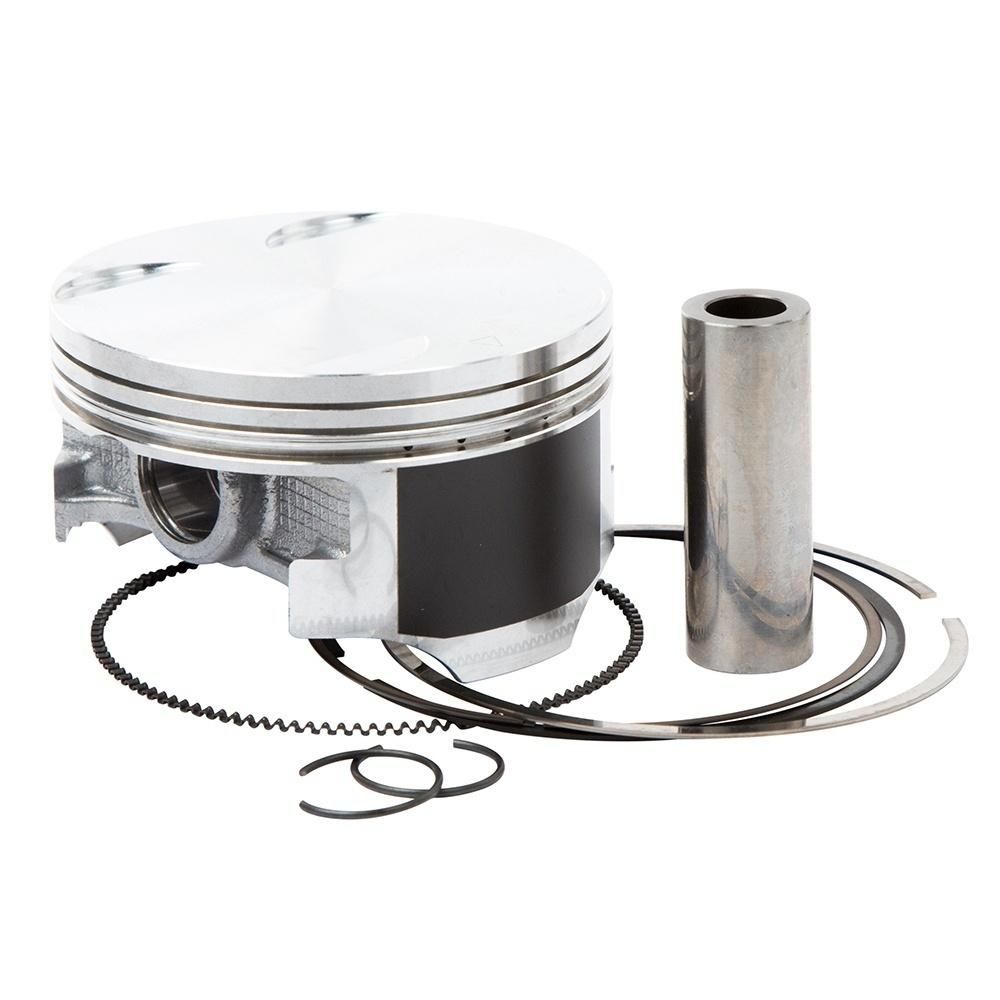

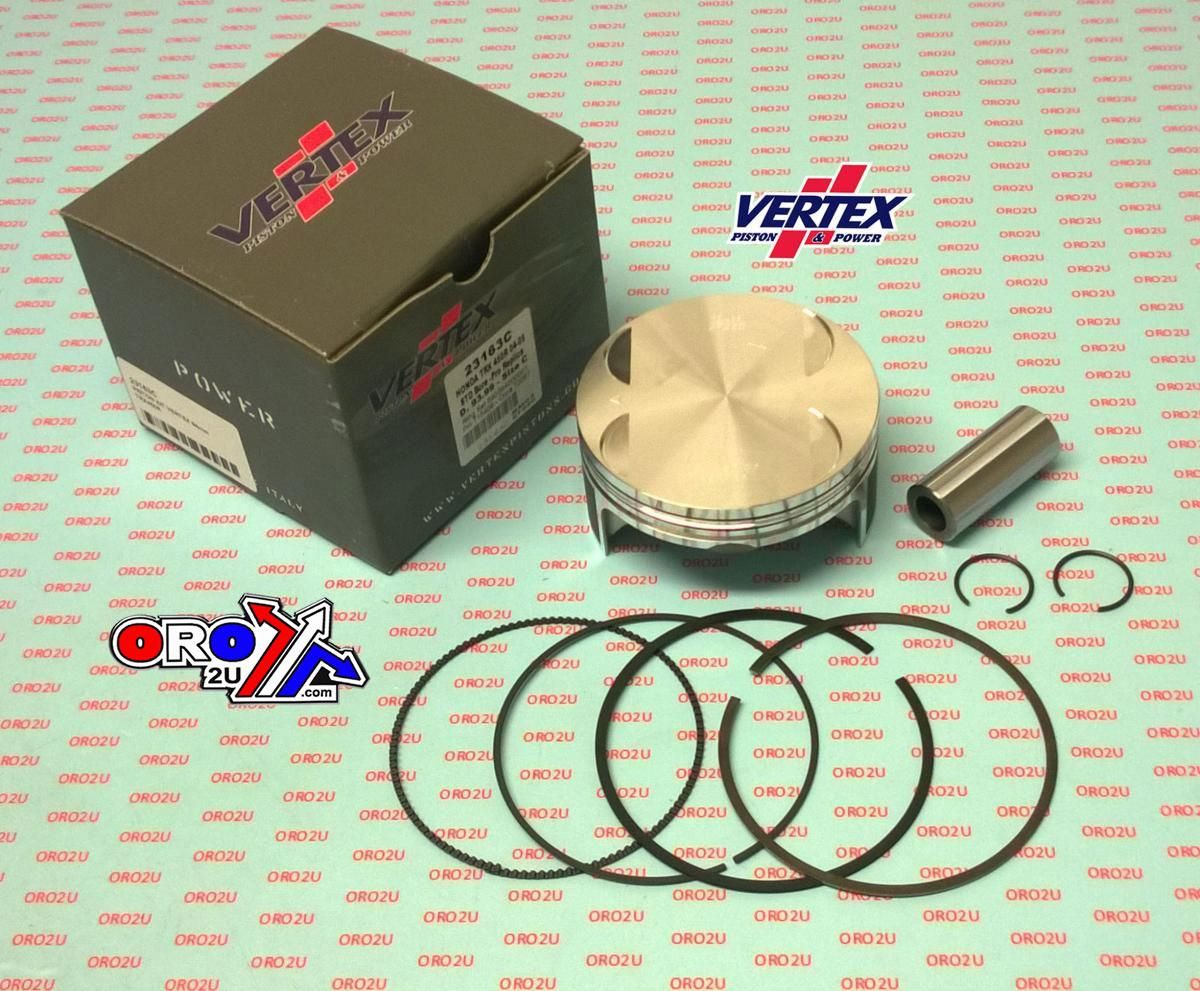

PISTON KIT VERTEX 94.0 C HONDA TRX 450 04-05, VERTEX 23163C

VERTEX UK PISTON KIT         23163C           (Distributed by oro2u.com)

All Vertex Pistons Feature:
– Standard pistons and components are OEM replacements.
– Kits include piston, rings, wrist pin and circlips.
– All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
– Replacement rings are sold individually.
– Made in Italy.
– Fitted in many oem bikes as STD.

SPECIFICATION:

• BORE SIZE.   94.00mm [C   93.98mm]

Replacement Parts.

• Rings.   590394000001
• Pin.   715406
• Clips. 72067

Cross reference numbers ONLY.

• PISTON 13101-HP1-670
• PIN, PISTON 13111-HP1-670
• CLIP, PISTON PIN (21MM) 13112-HP1-670
• RING SET, PISTON 13011-HP1-305

MODEL FITMENT

• HONDA TRX 450R 2004-2005
