PISTON KIT VERTEX 90.5 HONDA CR/CRE 500 85-01, VERTEX 22447150 OS+1.50
£166.60
Brand: Vertex
Out of Stock
| Size | 90.5mm |
|---|---|
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Catalogue | DIRT |
| Alternate SKU's | 13011-ML3-305, 13012-ML3-305, 13013-ML3-305, 13101-MAC-680, 13102-MAC-680, 13103-MAC-680, 13111-ML3-680, 53315008950, 711134, 72073, 90601-KA5-000 |
| Piston Diameter | 90.50 |
| Bore Diameter | |
| Piston Grade | |
| Compression Ratio |
PISTON KIT VERTEX 90.5 HONDA CR/CRE 500 85-01, VERTEX 22447150 OS+1.50
VERTEX UK PISTON KIT 22447150 (Distributed by oro2u.com)
All Vertex Pistons Feature:
– Standard pistons and components are OEM replacements.

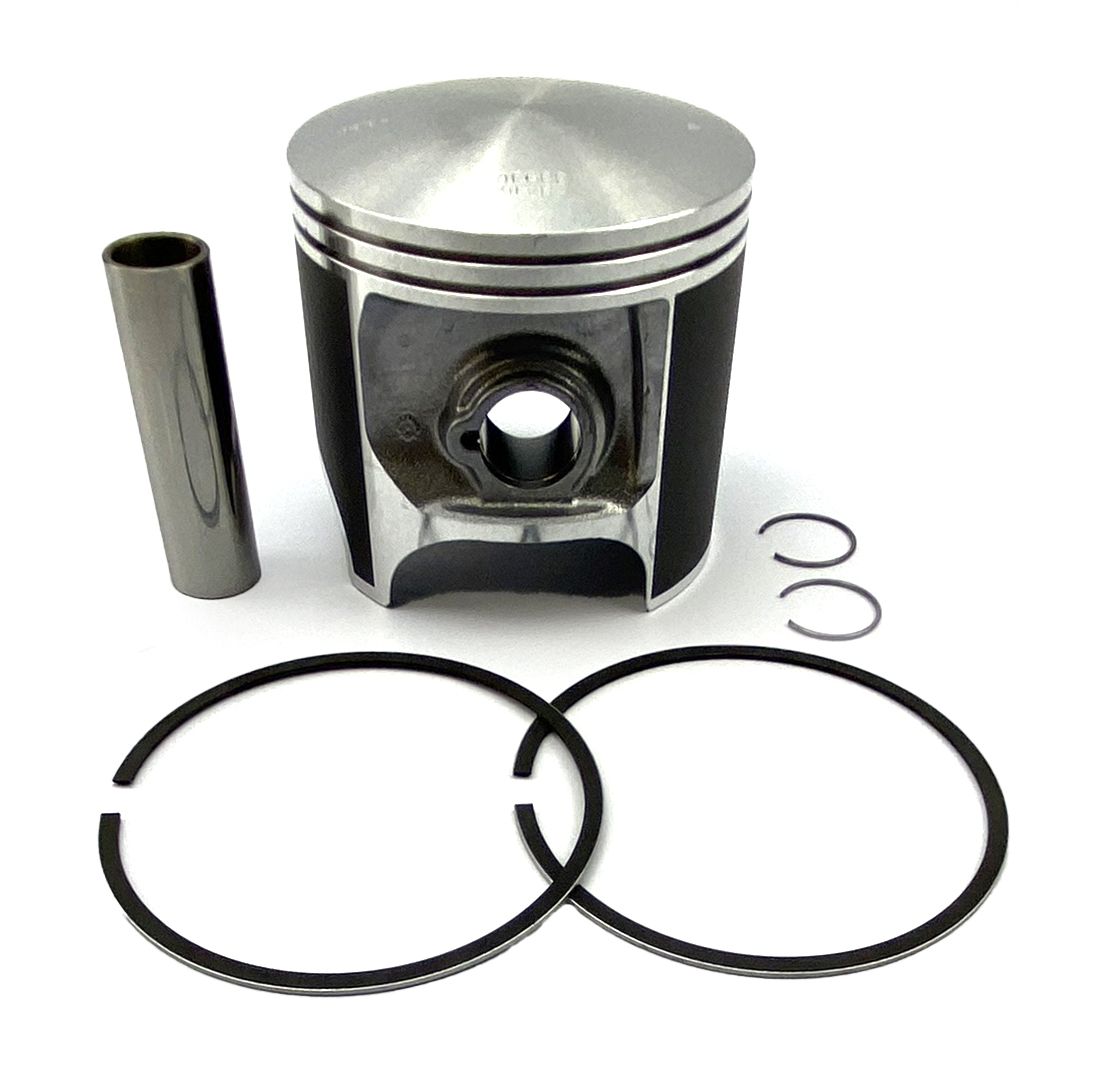

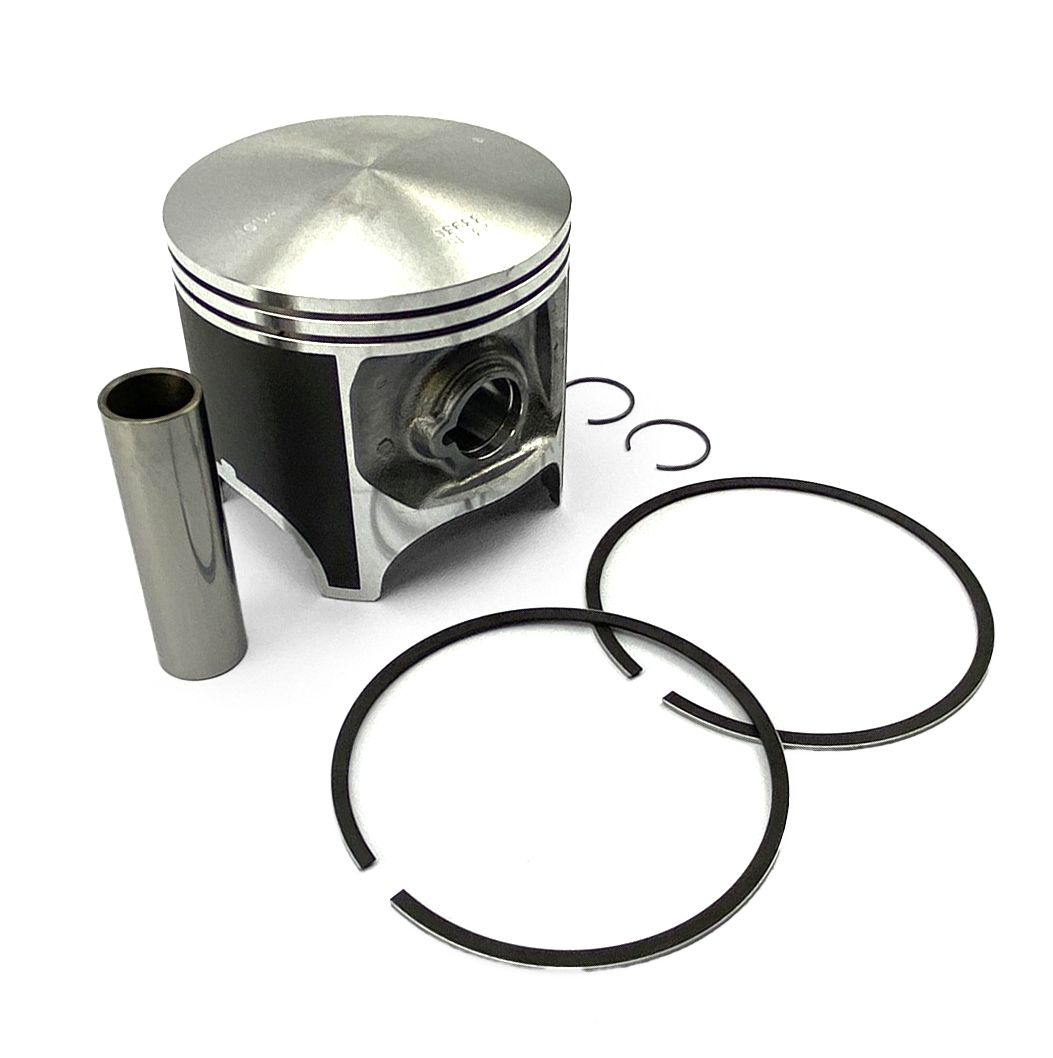

– Kits include piston, rings, wrist pin and circlips.
– All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
– Replacement rings are sold individually.
– Made in Italy.
– Fitted in many oem bikes as STD.
SPECIFICATIONS:
- BORE SIZE. 89.50 OS+1.50 [ 90.45mm]
Replacement Parts.
- Rings. 53315008950
- Pin. 711134
- Clips. 72073
Cross reference numbers ONLY.
- RING SET, PISTON (STD) (NIPPON) 13011-ML3-305
- RING SET, PISTON (0.25) (NIPPON) 13012-ML3-305
- RING SET, PISTON (0.50) (NIPPON) 13013-ML3-305
- PISTON (STD) 13101-MAC-680
- PISTON (0.25) 13102-MAC-680
- PISTON (0.50) 13103-MAC-680
- PIN, PISTON 13111-ML3-680
- CLIP, PISTON PIN (1.2X20) 90601-KA5-000
MODEL FITMENT:
- HONDA CR500 1985-2001
- HONDA CRE500 1985-2001
