| Size | 77mm |
|---|---|
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Alternate SKU's | 1SM-11631-01-00, 1SM-11633-00-00, 1SM-11603-00-00, 1SM-116A0-01-00, 590277000006, 715380, 72055, 93450-17129-00 |
| Piston Diameter | |
| Bore Diameter | |
| Piston Grade | |
| Compression Ratio |

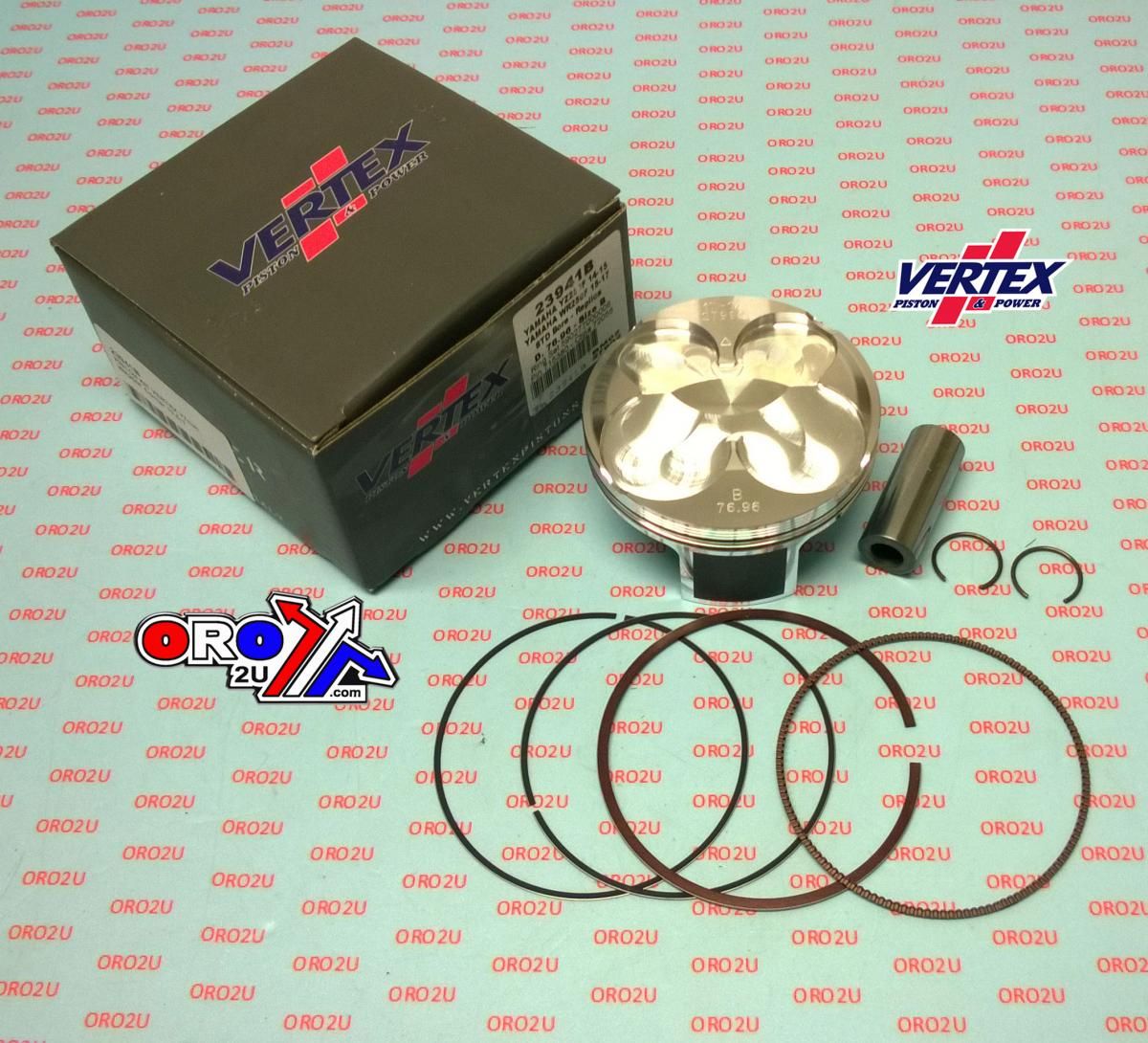

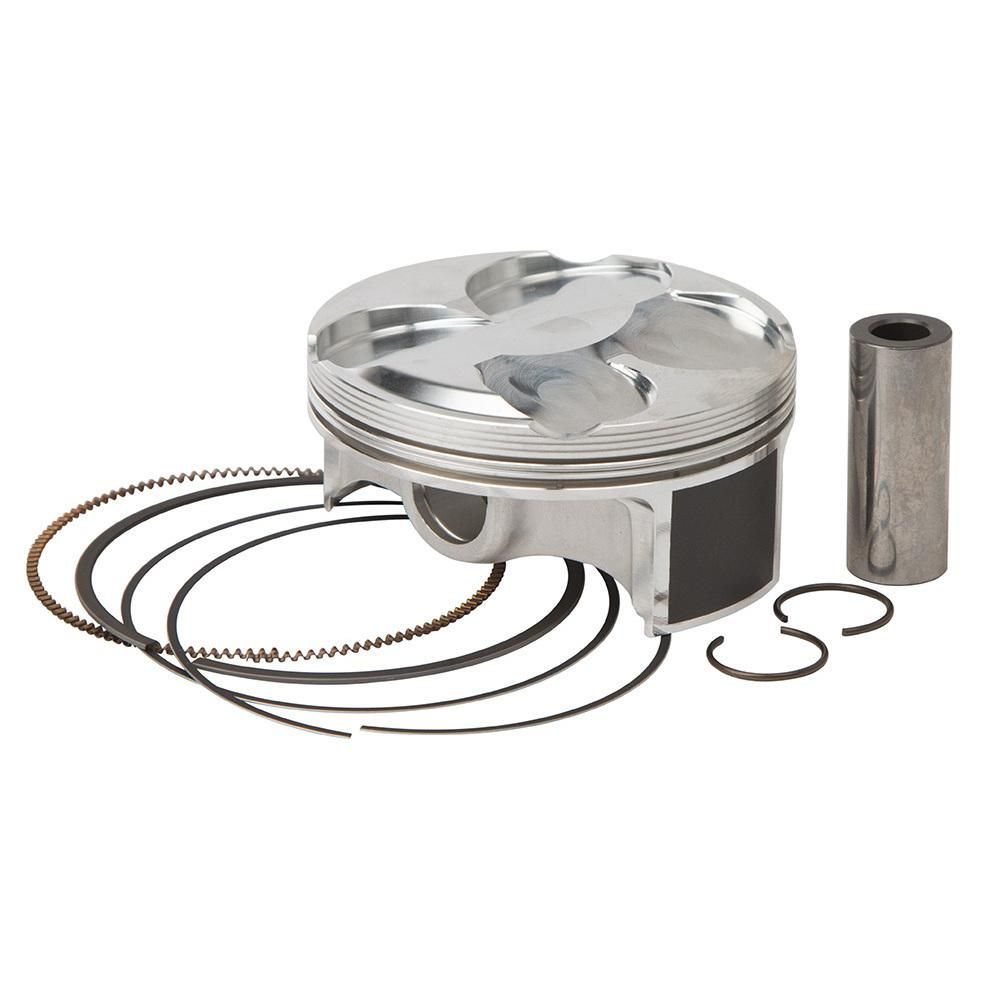

PISTON KIT VERTEX 77.0 D YAMAMA YZ/WR 250 14-17, VERTEX 23941D COMPR 13,5:1
VERTEX UK PISTON KIT 23941D Compr 13,5:1 (Distributed by oro2u.com)
All Vertex Pistons Feature:
– Standard pistons and components are OEM replacements.
– Kits include piston, rings, wrist pin and circlips.
– All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
– Replacement rings are sold individually.
– Made in Italy.
– Fitted in many oem bikes as STD.
SPECIFICATIONS:
- BORE SIZE. 77.00mm [D 76.98 mm]
Replacement Parts.
- Rings. 590277000006
- Pin. 715380
- Clips. 72055
Cross reference numbers
- Piston Assy 1SM-116A0-01-00
- Piston (Std) 1SM-11631-01-00
- Piston Ring Set (Std) 1SM-11603-00-00
- Pin, Piston 1SM-11633-00-00
- Circlip 93450-17129-00 ONLY.
MODEL FITMENT
- YAMAHA WR 250F 2015-2017 COMPR 13,5:1
- YAMAHA YZ 250F 2014-2015 COMPR 13,5:1
