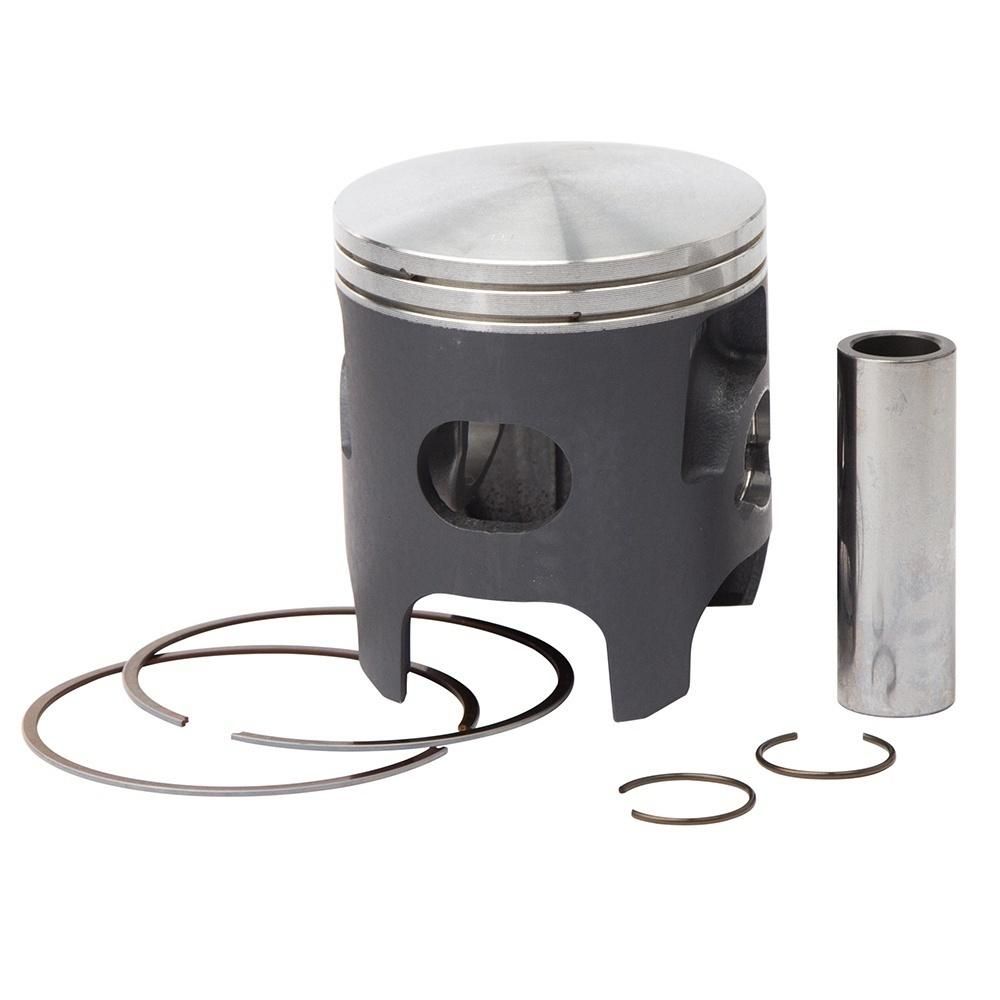

PISTON KIT VERTEX 68.0 YAMAHA YZ/WR 250 99-22, VERTEX 22584160 OS +1.60
£159.17
Brand: Vertex
Stock: 2
| Size | 68.0mm |
|---|---|
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Catalogue | DIRT |
| Alternate SKU's | 1P8-11631-00-A0, 1P8-11631-00-B0, 1P8-11631-00-C0, 1P8-11631-00-D0, 53010006800, 5CU-11603-10-00, 5UP-11633-00-00, 715372, 72074, 93450-19052-00 |
| Piston Diameter | |
| Bore Diameter | |
| Piston Grade | |
| Compression Ratio |
PISTON KIT VERTEX 68.0 YAMAHA YZ/WR 250 99-22, VERTEX 22584160 OS +1.60
VERTEX UK PISTON KIT 22584160 (Distributed by oro2u.com)
All Vertex Pistons Feature:
– Standard pistons and components are OEM replacements.
– Kits include piston, rings, wrist pin and circlips.
– All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
– Replacement rings are sold individually.
– Made in Italy.
– Fitted in many oem bikes as STD.
- BORE SIZE. 68.00mm OVERSIZE +1.60mm [OS 67.95mm]
Replacement Parts.
- Rings. 53010006800
- Pin. 715372
- Clips. 72074
Cross reference numbers ONLY.
- Piston (Std) UR RED 1P8-11631-00-A0
- Piston (Std) UR ORANGE 1P8-11631-00-B0
- Piston (Std) UR PURPLE 1P8-11631-00-D0
- Piston (Std) UR GREEN 1P8-11631-00-C0
- Piston Ring Set (Std) 5CU-11603-10-00
- Pin, Piston 5UP-11633-00-00
- Circlip 93450-19052-00
