| Size | 68.0mm |
|---|---|
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Alternate SKU's | 09381-18002, 12101-37890, 12101-37893, 12110-37E40-0F0, 12110-37E42-0F0, 12141-37E02, 12151-28C00, 12151-37F00, 53010006800, 715372, 72074 |
| Piston Diameter | |
| Bore Diameter | |
| Piston Grade | |
| Compression Ratio |

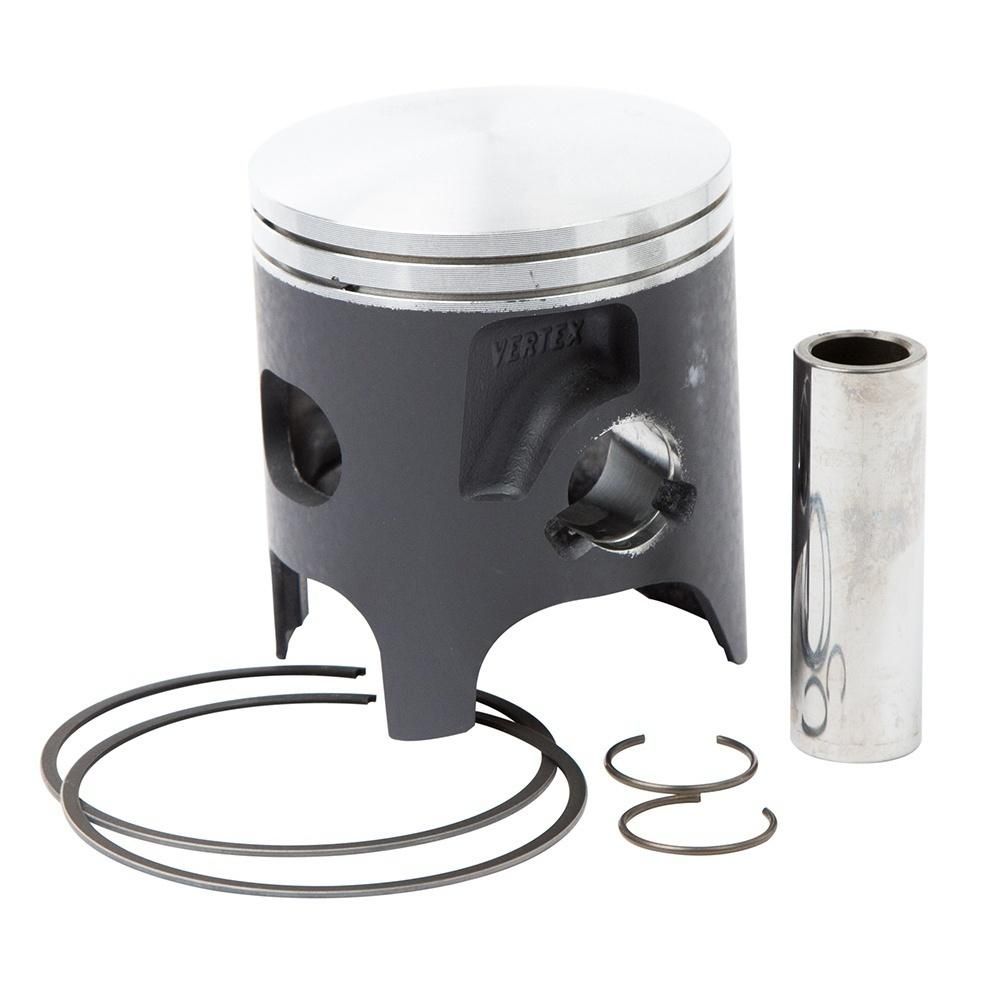

PISTON KIT VERTEX 68.0 SUZUKI RM 250 03-12, VERTEX 22854160 OS +1.60
VERTEX UK PISTON KIT 22854160 2-RING (Distributed by oro2u.com)
All Vertex Pistons Feature:
– Standard pistons and components are OEM replacements.
– Kits include piston, rings, wrist pin and circlips.
– All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
– Replacement rings are sold individually.
– Made in Italy.
– Fitted in many oem bikes as STD.
SPECIFICATION:
- BORE SIZE. 68.00mm OVERSIZE +1.60 [OS 67.95mm]
Replacement Parts.
- Rings. 53010006800
- Pin. 715372
- Clips. 72074
Cross reference numbers ONLY.
- PISTON MODEL K1 12110-37E40-0F0 12110-37E42-0F0
- PISTON MODEL K2 12110-37E42-0F0
- RING, PISTON 12141-37E02
- PIN, PISTON MODEL K1 12151-28C00 12151-37F00
- PIN, PISTON MODEL K2 12151-37F00
- CIRCLIP 09381-18002
- PISTON KIT OPT MODEL K1 E28 12101-37890 12101-37893
MODEL FITMENT:
- SUZUKI RM 250 2003-2012
