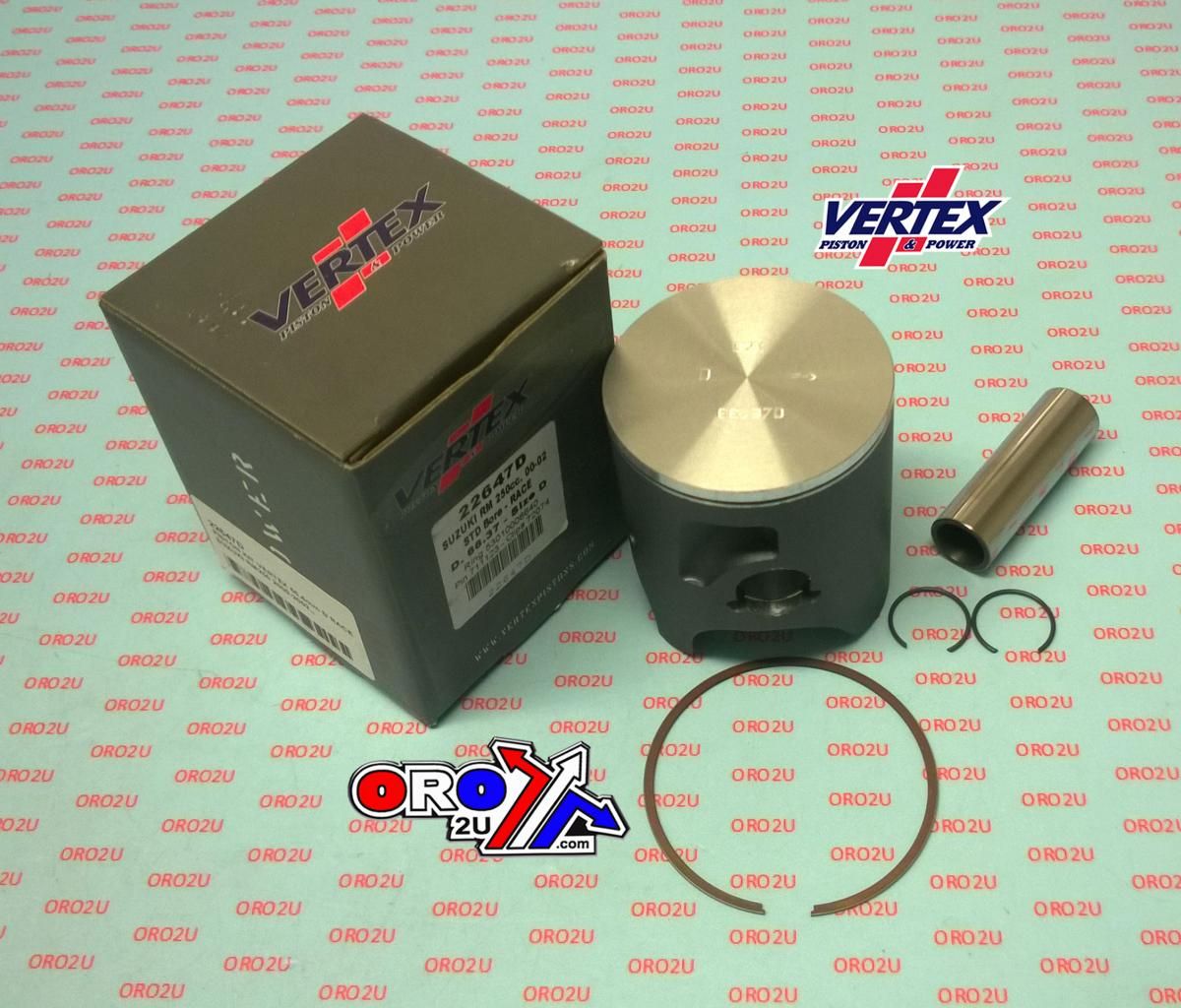

PISTON KIT VERTEX 68.0 SUZUKI RM 250 00-02 RACE, VERTEX 22647160 SINGLE RING OS +1.60

VERTEX UK PISTON KIT         22647160         (Distributed by oro2u.com)

All Vertex Pistons Feature:
– Standard pistons and components are OEM replacements.
– Kits include piston, rings, wrist pin and circlips.
– All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
– Replacement rings are sold individually.
– Made in Italy.
– Fitted in many oem bikes as STD.

SPECIFICATION:

• BORE SIZE.   68.00mm OS +1.60 [C   67.95mm]

Replacement Parts.

• Rings.   53010006800
• Pin.   715372
• Clips. 72074

Cross reference numbers ONLY.

• PISTON MODEL K1 12110-37E40-0F0 12110-37E42-0F0
• PISTON MODEL K2 12110-37E42-0F0
• RING, PISTON 12141-37E02
• PIN, PISTON MODEL K1 12151-28C00 12151-37F00
• CIRCLIP 09381-18002

MODEL FITMENT:

• SUZUKI RM 250 2000-2002 RACE SINGLE RING
