| Size | 68mm |
|---|---|
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Alternate SKU's | 2VM-11633-01-00, 4JX-11603-00-00, 4SR-11631-00-A0, 4SR-11631-00-B0, 4SR-11631-00-C0, 4SR-11631-00-D0, 53012006800, 711117, 72074, 93450-19052-00 |
| Piston Diameter | |
| Bore Diameter | |
| Piston Grade | |
| Compression Ratio |

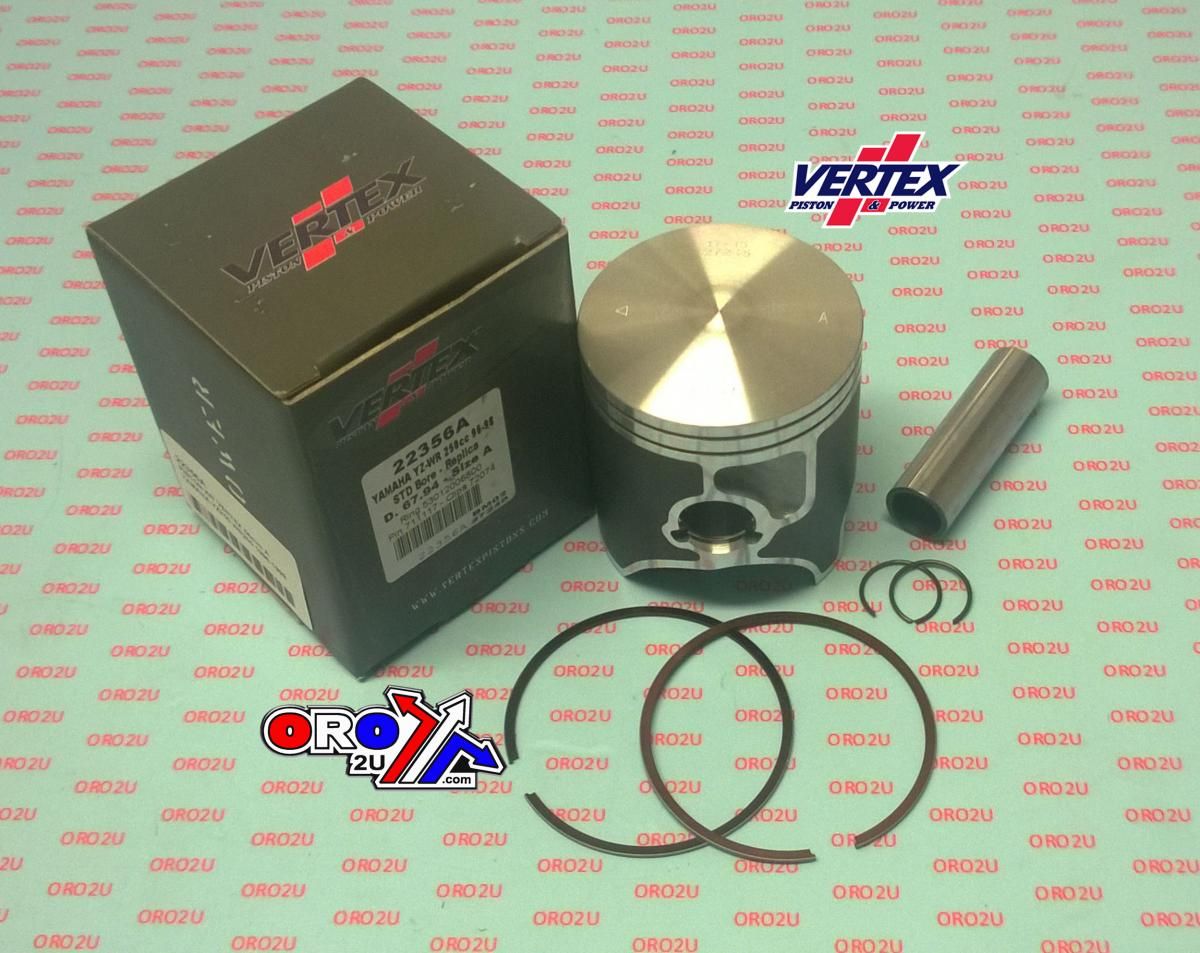

PISTON KIT VERTEX 68.0 B YAMAHA YZ/WR 250 96-98, VERTEX 22356B
VERTEX UK PISTON KIT 22356B (Distributed by oro2u.com)
All Vertex Pistons Feature:
– Standard pistons and components are OEM replacements.
– Kits include piston, rings, wrist pin and circlips.
– All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
– Replacement rings are sold individually.
– Made in Italy.
– Fitted in many oem bikes as STD.
SPECIFICATION:
- BORE SIZE. 68.00 [B 67.95 mm]
Replacement Parts.
- Rings. 53012006800
- Pin. 711117
- Clips. 72074
Cross reference numbers ONLY.
- Piston (Std) UR 4SR-11631-00-A0, 4SR-11631-00-B0, 4SR-11631-00-C0, 4SR-11631-00-D0,
- Piston Ring Set (Std) 4JX-11603-00-00
- Pin, Piston 2VM-11633-01-00
- Circlip 93450-19052-00
MODEL FITMENT:
- YAMAHA YZ250 1996-1998
- YAMAHA WR250 1996-1998
