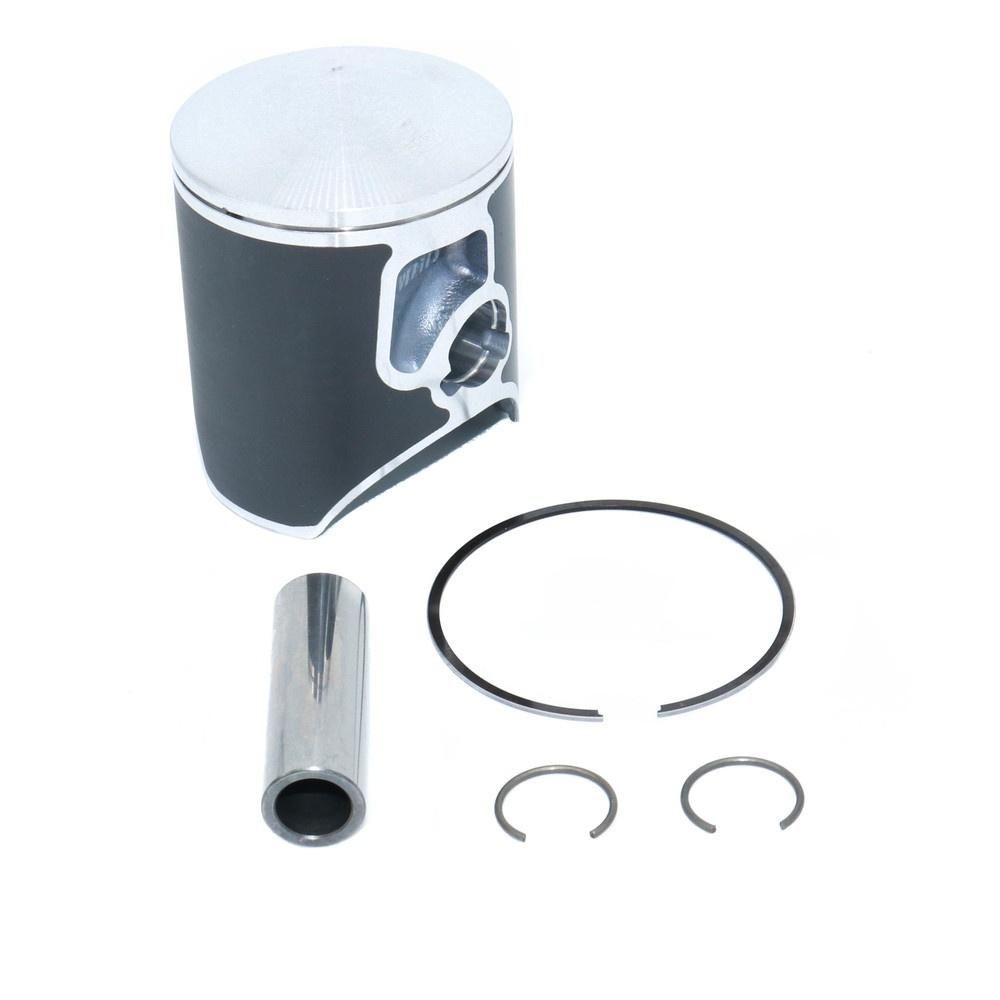

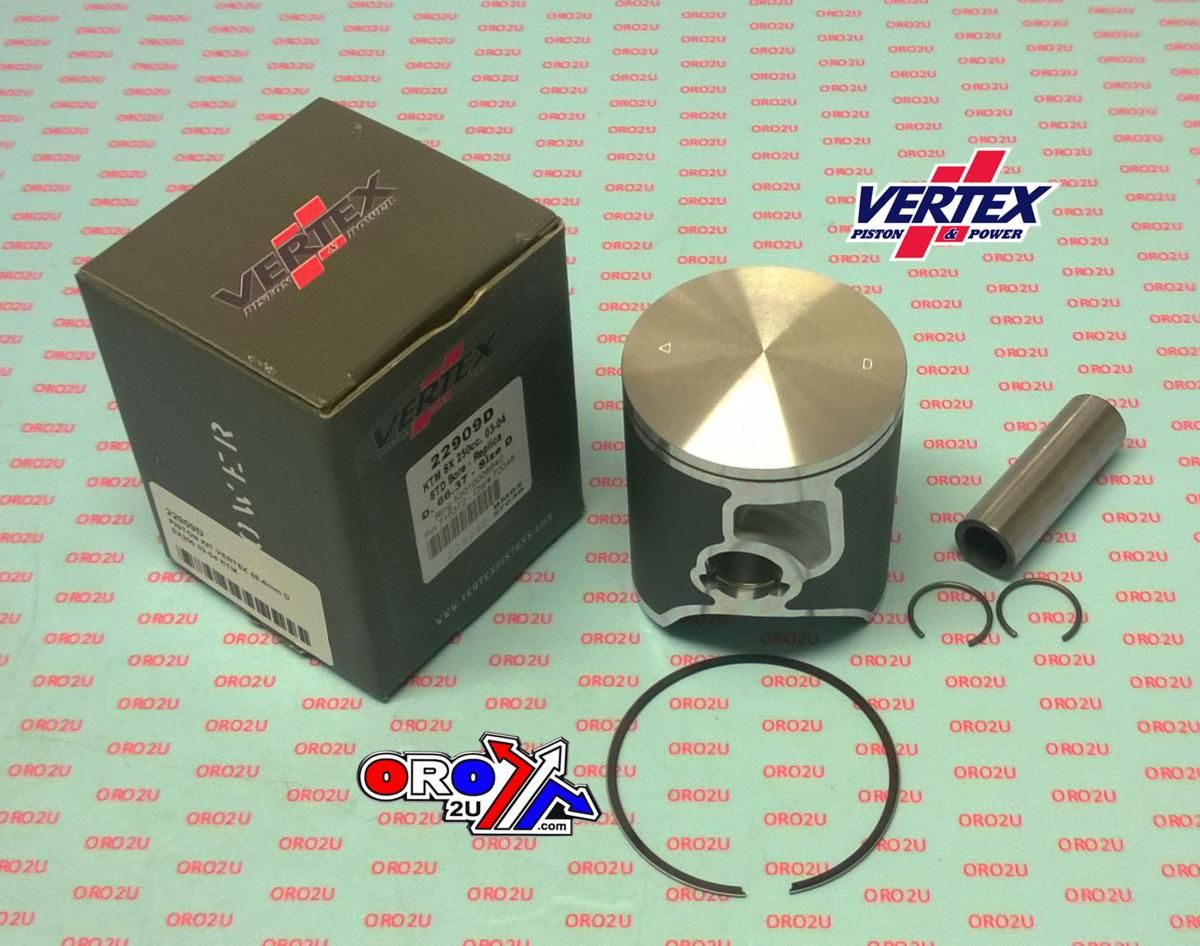

PISTON KIT VERTEX 66.4 D KTM SX 250 03-04, VERTEX 22909D

VERTEX UK PISTON KIT           22909D     Single Ring   (Distributed by oro2u.com)

All Vertex Pistons Feature:
– Standard pistons and components are OEM replacements.
– Kits include piston, rings, wrist pin and circlips.
– All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
– Replacement rings are sold individually.
– Made in Italy.
– Fitted in many oem bikes as STD.

SPECIFICATION:

• BORE SIZE.   66.40mm   [D       66.37mm]

Replacement Parts.

• Rings.   53010006640
• Pin.   715372
• Clips. 72048

Cross reference numbers ONLY.

• Piston I Cpl. 250 Vertex ’03 54830007000 I 54830007300 I
• Piston Ii Cpl. 250 Vertex ’03 54830007000 II 54830007300 II
• Piston I Cpl. 66,4Mm 250 2000 54630207100 I
• Piston Ii Cpl. 66,4Mm 250 2000 54630207100 II
• Square Ring 66,4Mm 250 2000 250 54630232000
• Piston Pin 18X55,8 250 2000 54630233000
• Wire Lock Ring C18x1,5 54030074000

MODEL FITMENT:

• KTM SX 250 2003-2004
