| Size | 66.4mm |
|---|---|
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Catalogue | DIRT |
| Alternate SKU's | 09381-18002, 12110-37E00-0F0, 12110-37E02-0F0, 12110-37E20-0F0, 12110-37E30-0F0, 12110-37E40-0F0, 12110-37E42-0F0, 12141-37E00, 12141-37E01, 12141-37E02, 12151-37F00, 53010006640, 715372, 72074 |
| Piston Diameter | |
| Bore Diameter | |
| Piston Grade | |
| Compression Ratio |

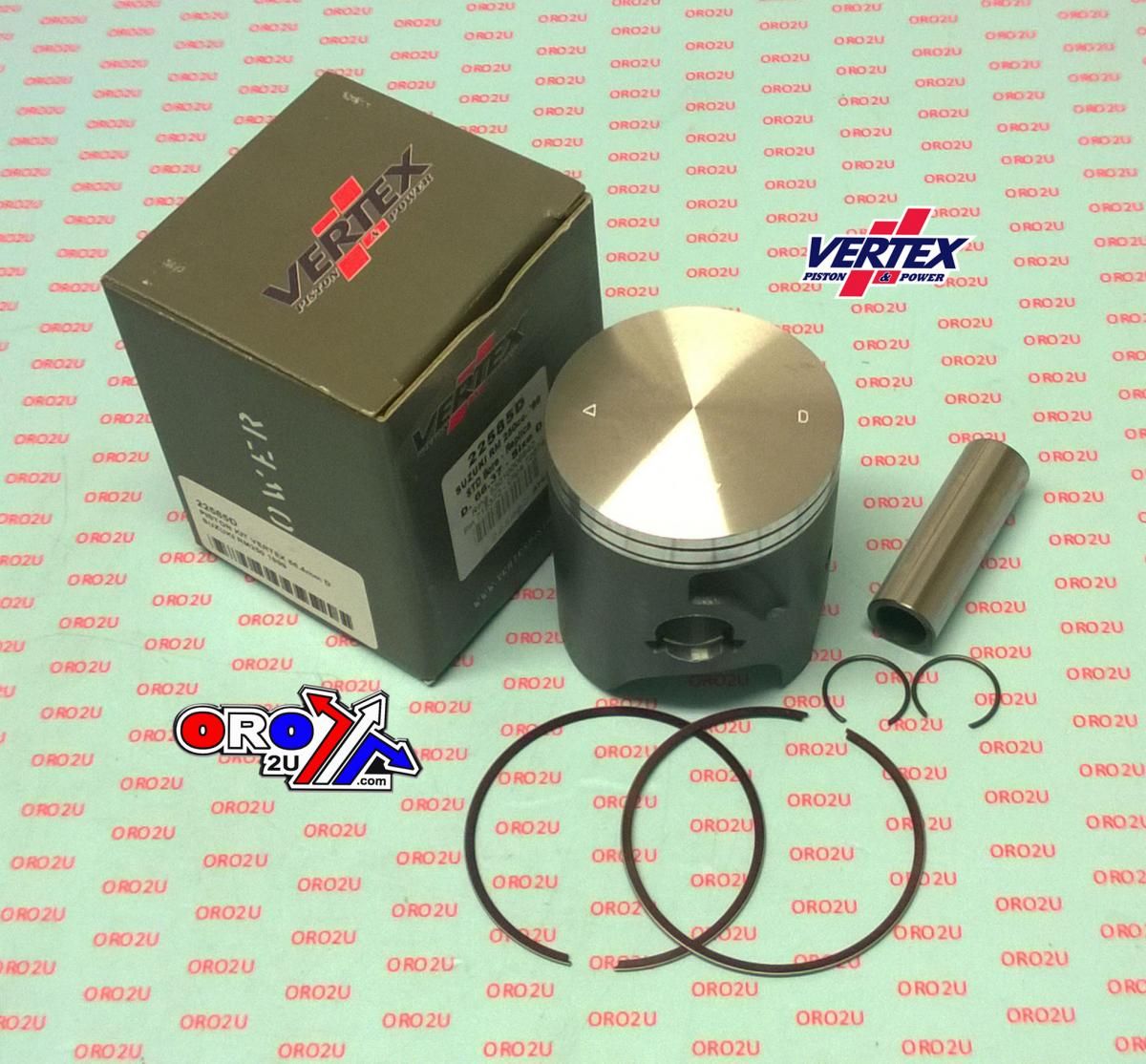

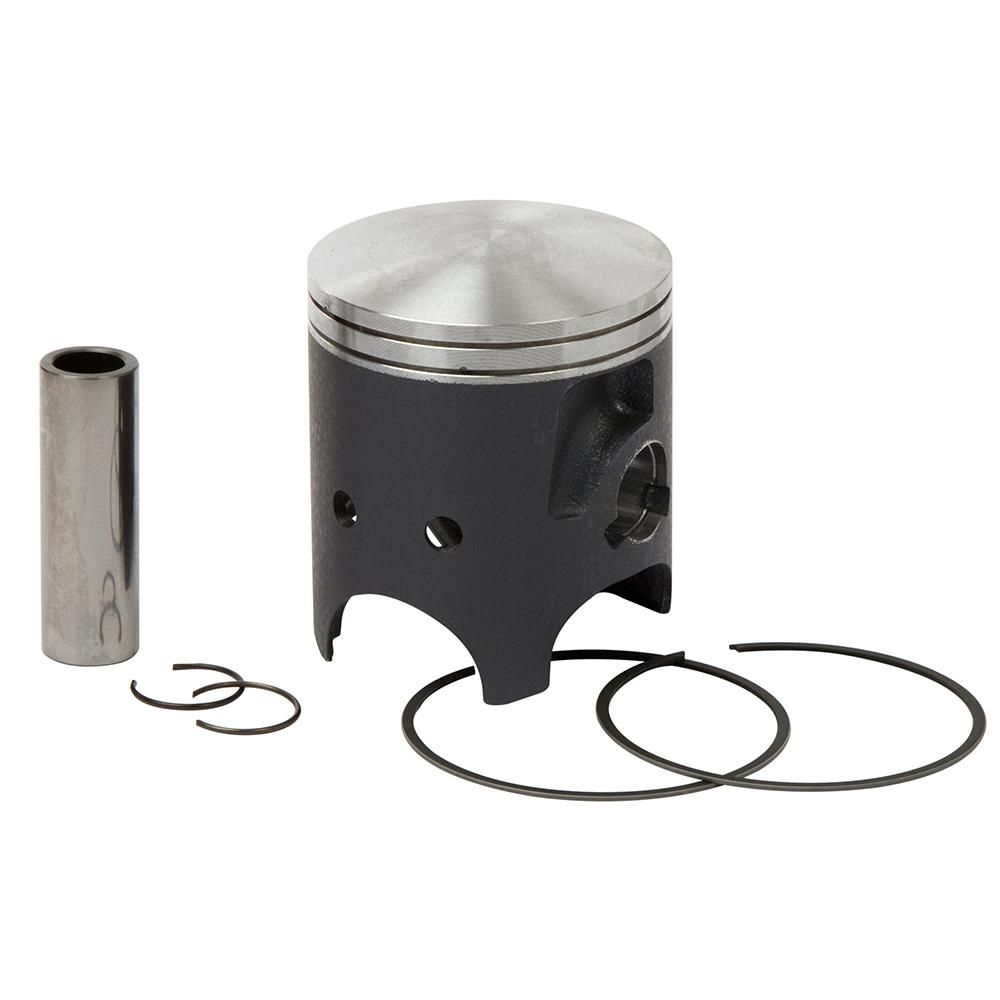

PISTON KIT VERTEX 66.4 A SUZUKI RM 250 1999, VERTEX 22585A
VERTEX UK PISTON KIT 22585A (Distributed by oro2u.com)
All Vertex Pistons Feature:
– Standard pistons and components are OEM replacements.
– Kits include piston, rings, wrist pin and circlips.
– All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
– Replacement rings are sold individually.
– Made in Italy.
– Fitted in many oem bikes as STD.
SPECIFICATION:
- BORE SIZE. 66.40mm [A 66.34mm]
Replacement Parts.
- Rings. 53010006640
- Pin. 715372
- Clips. 72074
Cross reference numbers ONLY.
- PISTON MODEL T 12110-37E00-0F0 12110-37E30-0F0
- PISTON MODEL V 12110-37E02-0F0 12110-37E30-0F0
- PISTON MDOEL W 12110-37E20-0F0 12110-37E42-0F0
- PISTON MODEL X 12110-37E30-0F0
- PISTON MODEL Y 12110-37E40-0F0 12110-37E42-0F0
- RING, PISTON MODEL T 12141-37E00 12141-37E02
- RING, PISTON MODEL V/W/X/Y 12141-37E01 12141-37E02
- PIN, PISTON 12151-28C00 12151-37F00
- CIRCLIP 09381-18002
MODEL FITMENT:
- SUZUKI RM 250 1999
