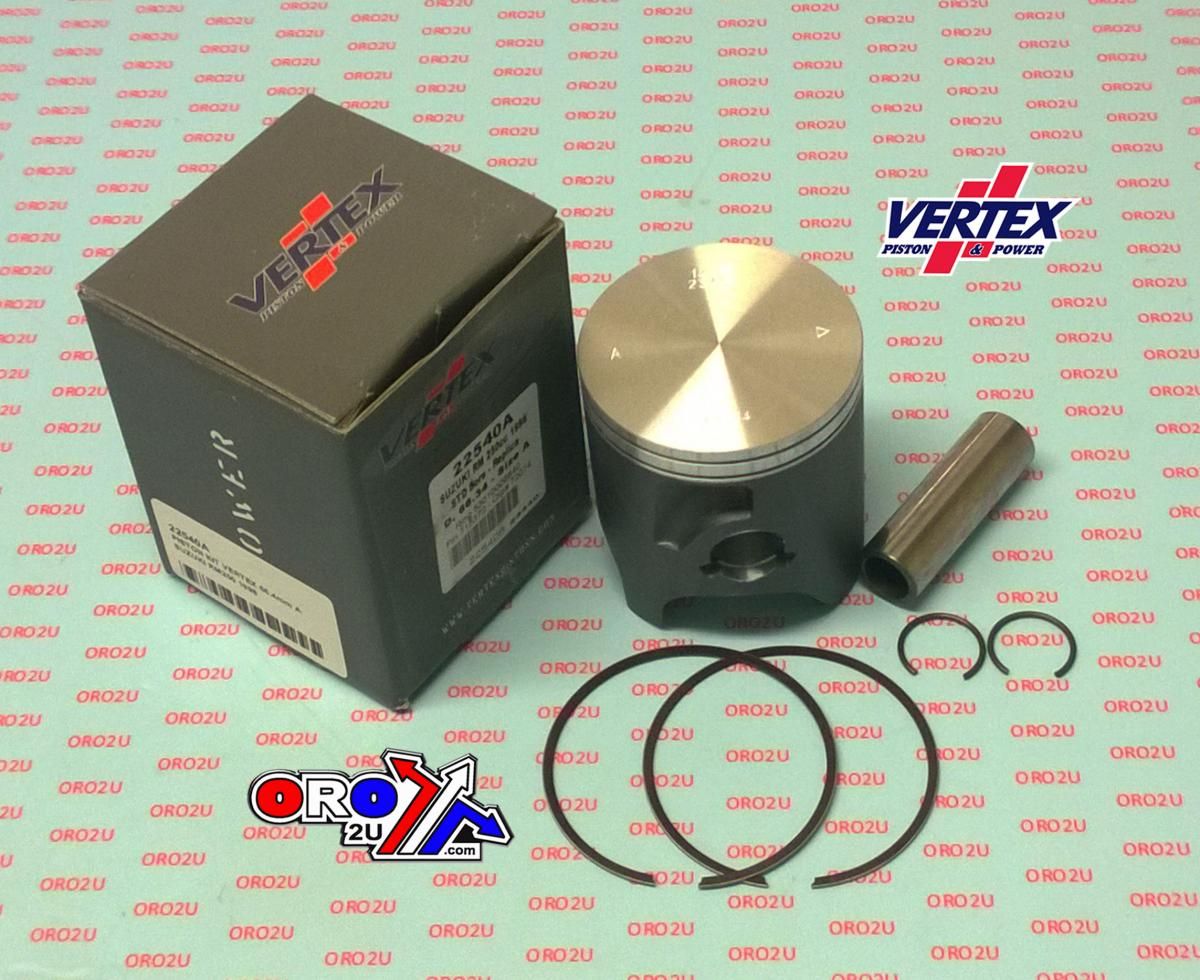

PISTON KIT VERTEX 66.4 A SUZUKI RM 250 1998, VERTEX 22540A

VERTEX UK PISTON KIT             22540A       (Distributed by oro2u.com)

All Vertex Pistons Feature:
– Standard pistons and components are OEM replacements.
– Kits include piston, rings, wrist pin and circlips.
– All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
– Replacement rings are sold individually.
– Made in Italy.
– Fitted in many oem bikes as STD.

SPECIFICATION:

• BORE SIZE.   66.40 [A   66.34mm]

Replacement Parts.

• Rings.   53010006640
• Pin.   715372
• Clips. 72074

Cross reference numbers ONLY.

• PISTON MODEL T 12110-37E00-0F0 12110-37E30-0F0
• PISTON MODEL V 12110-37E02-0F0 12110-37E30-0F0
• PISTON MDOEL W 12110-37E20-0F0 12110-37E42-0F0
• PISTON MODEL X 12110-37E30-0F0
• PISTON MODEL Y 12110-37E40-0F0 12110-37E42-0F0
• RING, PISTON MODEL T 12141-37E00 12141-37E02
• RING, PISTON MODEL V/W/X/Y 12141-37E01 12141-37E02
• PIN, PISTON 12151-28C00 12151-37F00
• CIRCLIP 09381-18002
• PISTON KITS
• 12101-37810, 12101-37830, 12101-37860, 12101-37852, 12101-37880, 12101-37893,

MODEL FITMENT:

• SUZUKI RM 250 1998
