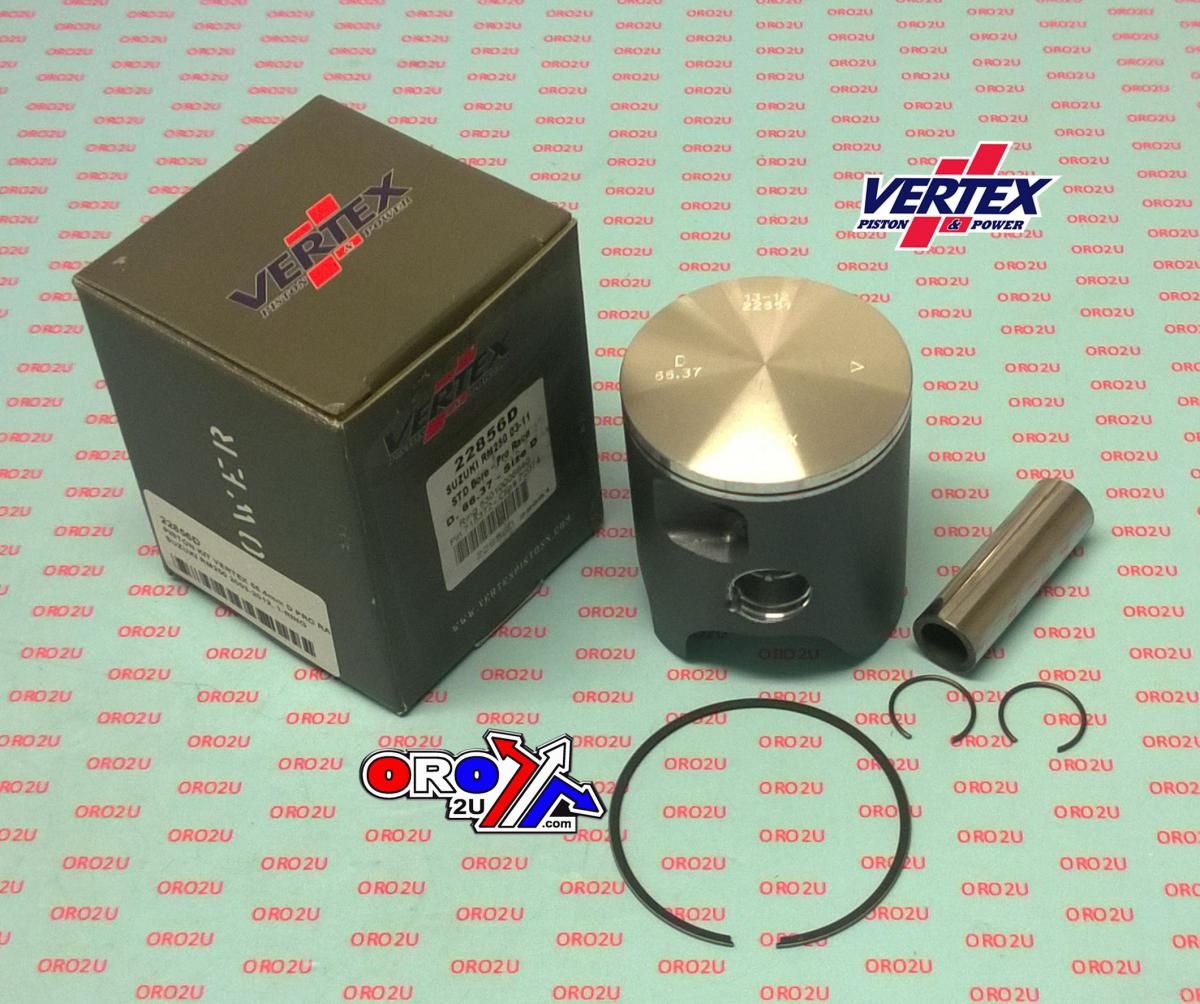

PISTON KIT VERTEX 66.4 A SUZUKI RM 250 03-12 PRO RACE, VERTEX 22856A SINGLE RING

VERTEX UK PISTON KIT     22856A   1-RING               (Distributed by oro2u.com)

All Vertex Pistons Feature:
– Standard pistons and components are OEM replacements.
– Kits include piston, rings, wrist pin and circlips.
– All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
– Replacement rings are sold individually.
– Made in Italy.
– Fitted in many oem bikes as STD.

SPECIFICATION:

• BORE SIZE.   66.40mm [A   66.34mm]

Replacement Parts.

• Rings.   53010006640
• Pin.   715372
• Clips. 72074

Cross reference numbers ONLY.

• PISTON MODEL K1 12110-37E40-0F0 12110-37E42-0F0
• PISTON MODEL K2 12110-37E42-0F0
• RING, PISTON 12141-37E02
• PIN, PISTON MODEL K1 12151-28C00 12151-37F00
• PIN, PISTON MODEL K2 12151-37F00
• CIRCLIP 09381-18002
• PISTON KIT OPT MODEL K1 E28 12101-37890 12101-37893

MODEL FITMENT:

• SUZUKI RM 250 2003-2012 PRO RACE SINGLE RING
