| Size | 54mm |
|---|---|
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Alternate SKU's | 4JY-11611-00-00, 4JY-11631-02-A0, 4JY-11631-02-B0, 4JY-11631-02-C0, 4JY-11631-02-D0, 4PE-11633-00-00, 53010005400, 715061, 72055, 93450-17129-00, |
| Piston Diameter | |
| Bore Diameter | |
| Piston Grade | |
| Compression Ratio |

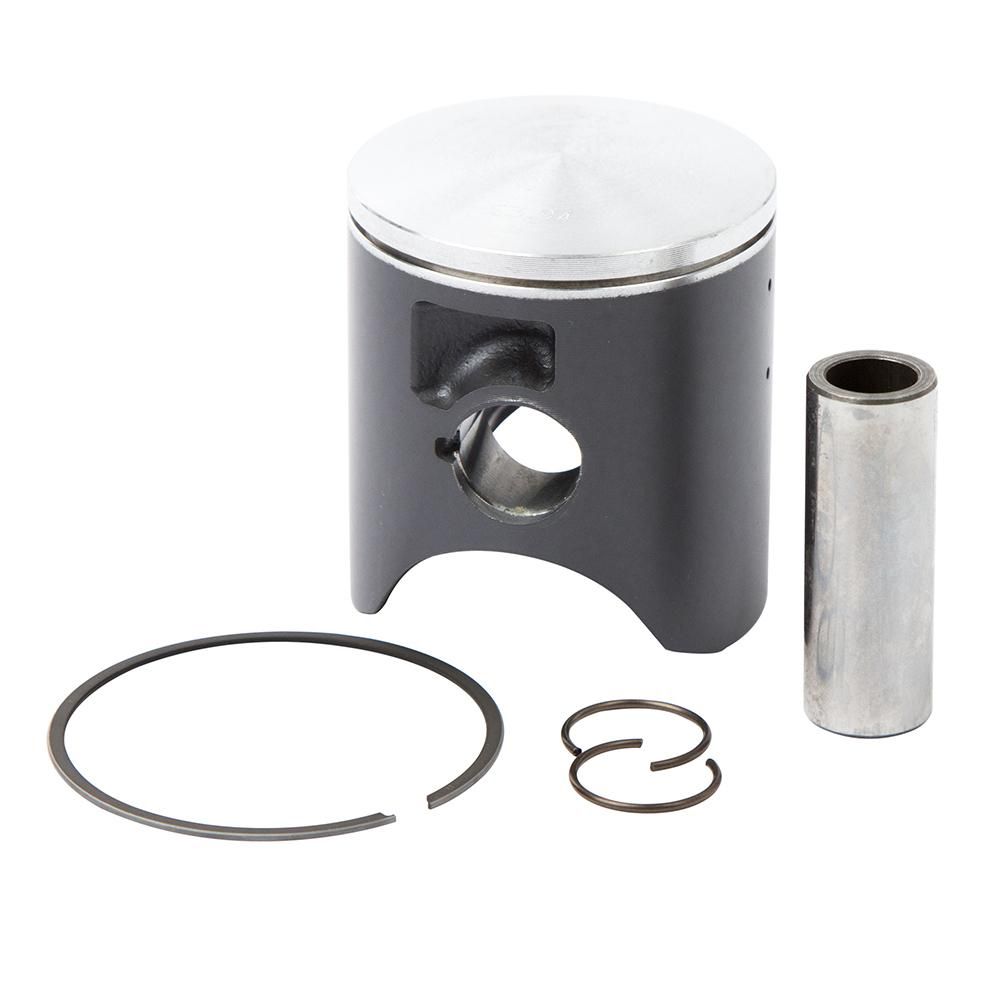

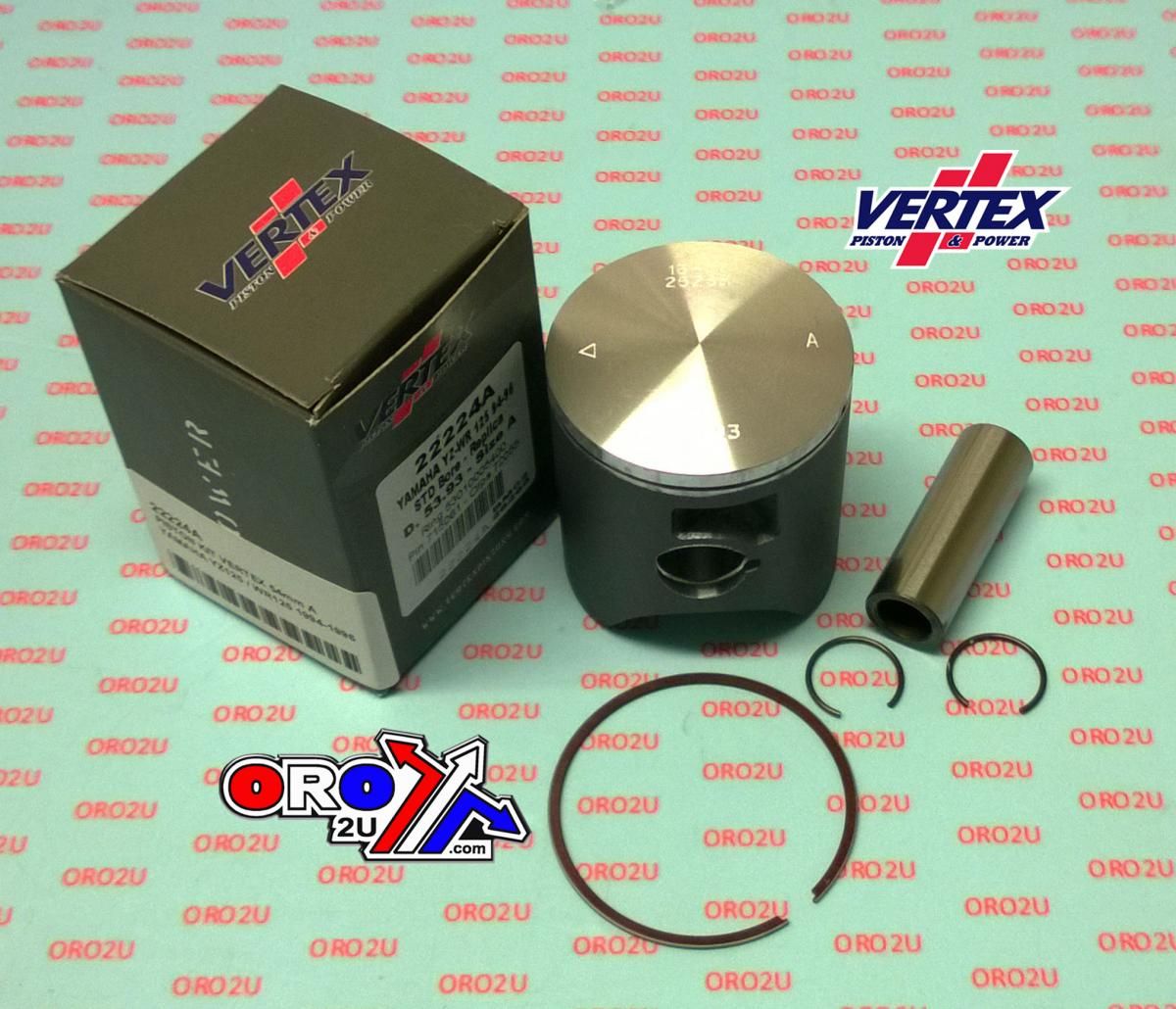

PISTON KIT VERTEX 54 E YAMAHA YZ/WR 125 94-96, VERTEX 22224E
VERTEX UK PISTON KIT 22224E (Distributed by oro2u.com)
All Vertex Pistons Feature:
– Standard pistons and components are OEM replacements.
– Kits include piston, rings, wrist pin and circlips.
– All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
– Replacement rings are sold individually.
– Made in Italy.
– Fitted in many oem bikes as STD.
SPECIFICATION:
- BORE SIZE. 54.00 [E 53.97mm]
Replacement Parts.
- Rings. 53010005400
- Pin. 715061
- Clips. 72055
Cross reference numbers ONLY.
- Piston (Std) UR 4JY-11631-02-A0
- Piston (Std) UR 4JY-11631-02-B0
- Piston (Std) UR 4JY-11631-02-D0
- Piston (Std) UR 4JY-11631-02-C0
- Ring, Piston 4JY-11611-00-00
- Pin, Piston 4PE-11633-00-00
- Circlip 93450-17129-00,
MODEL FITMENT:
- YAMAHA YZ125 1994-1996
- YAMAHA WR125 1994-1996
