PISTON KIT VERTEX 54 D SUZUKI RM 125 89-99, VERTEX 22216D

VERTEX UK PISTON KIT         22216D         (Distributed by oro2u.com)

All Vertex Pistons Feature:
– Standard pistons and components are OEM replacements.

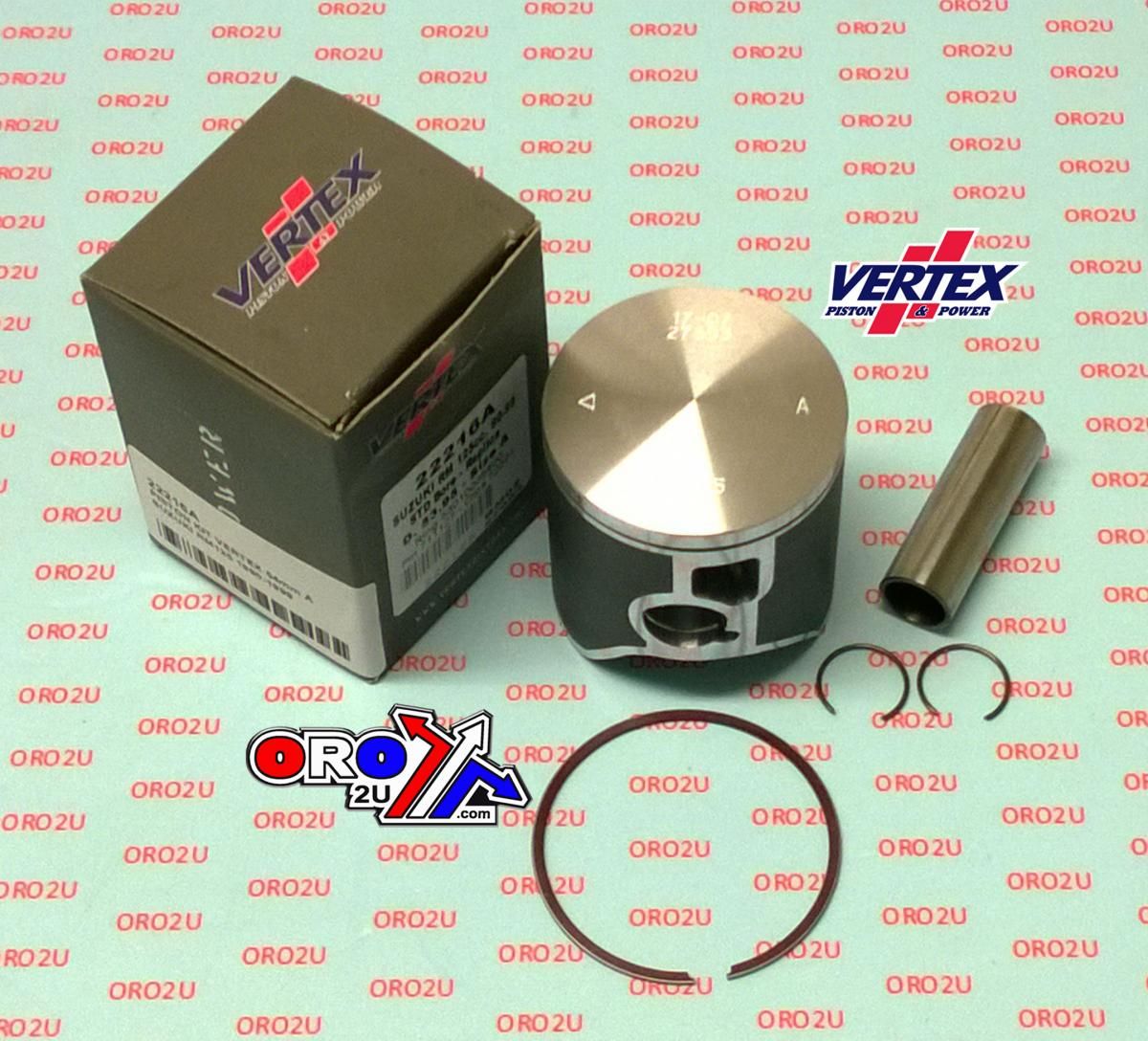

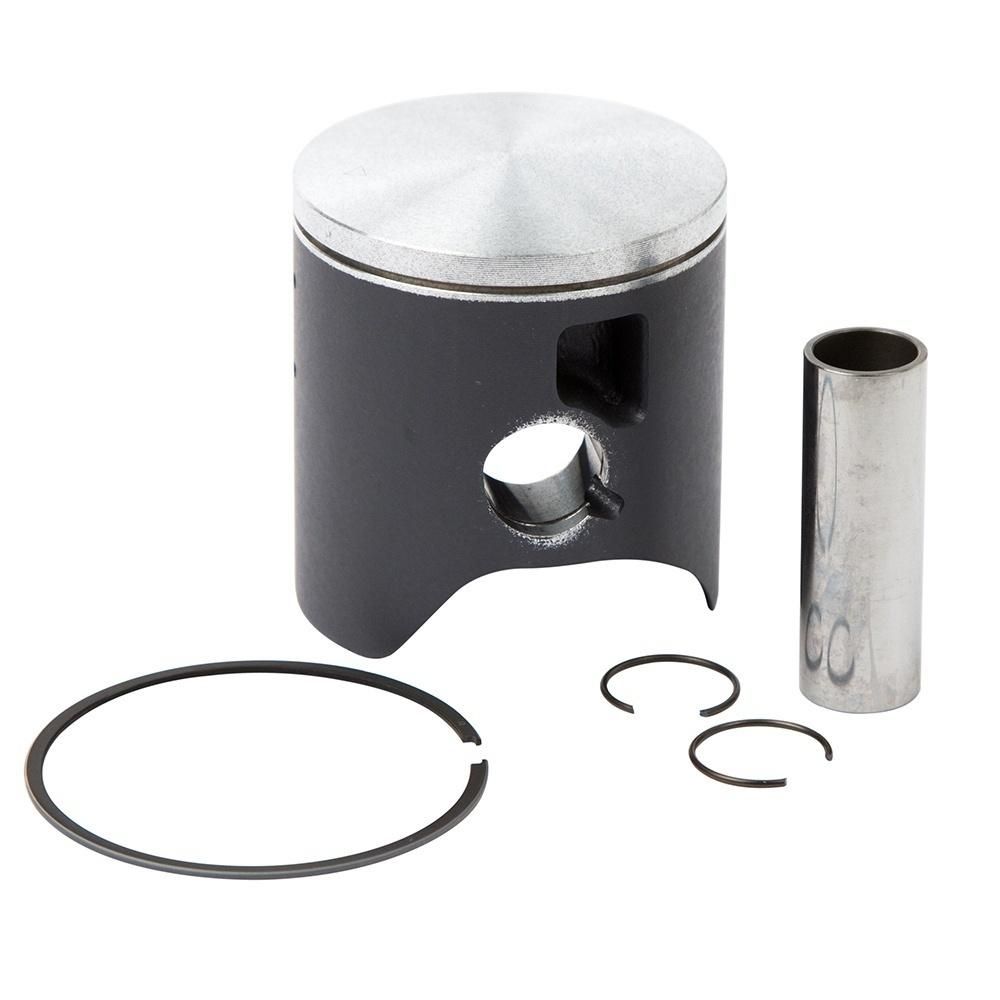

– Kits include piston, rings, wrist pin and circlips.
– All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
– Replacement rings are sold individually.
– Made in Italy.
– Fitted in many oem bikes as STD.

SPECIFICATION:

• BORE SIZE.   54.00mm   [D   53.98mm]

Replacement Parts.

• Rings.   53010005400
• Pin.   711127
• Clips. 72071

Cross reference numbers ONLY.

• PISTON MODEL T/V/W 12110-36E01-0F0, 12110-36E20-0F0
• PISTON MODEL X 12110-36E20-0F0
• PISTON MODEL Y 12110-36E30-0F0, 12110-36E31-0F0
• RING, PISTON 12141-36E01
• PIN, PISTON 12151-01B41
• CIRCLIP 09381-15001

MODEL FITMENT:

• SUZUKI RM125 1990-1999
