| Size | 54.0mm |
|---|---|
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Alternate SKU's | 09381-15001, 12110-36E30-0F0, 12110-36E31-0F0, 12110-36F00-0F0, 12110-36F10-0F0, 12141-36F00, 12151-01B41, 53010005400, 711127, 72071 |
| Piston Diameter | |
| Bore Diameter | |
| Piston Grade | |
| Compression Ratio |
PISTON KIT VERTEX 54.0 C SUZUKI RM 125 00-03, VERTEX 22652C
VERTEX UK PISTON KIT 22652C (Distributed by oro2u.com)
All Vertex Pistons Feature:
– Standard pistons and components are OEM replacements.

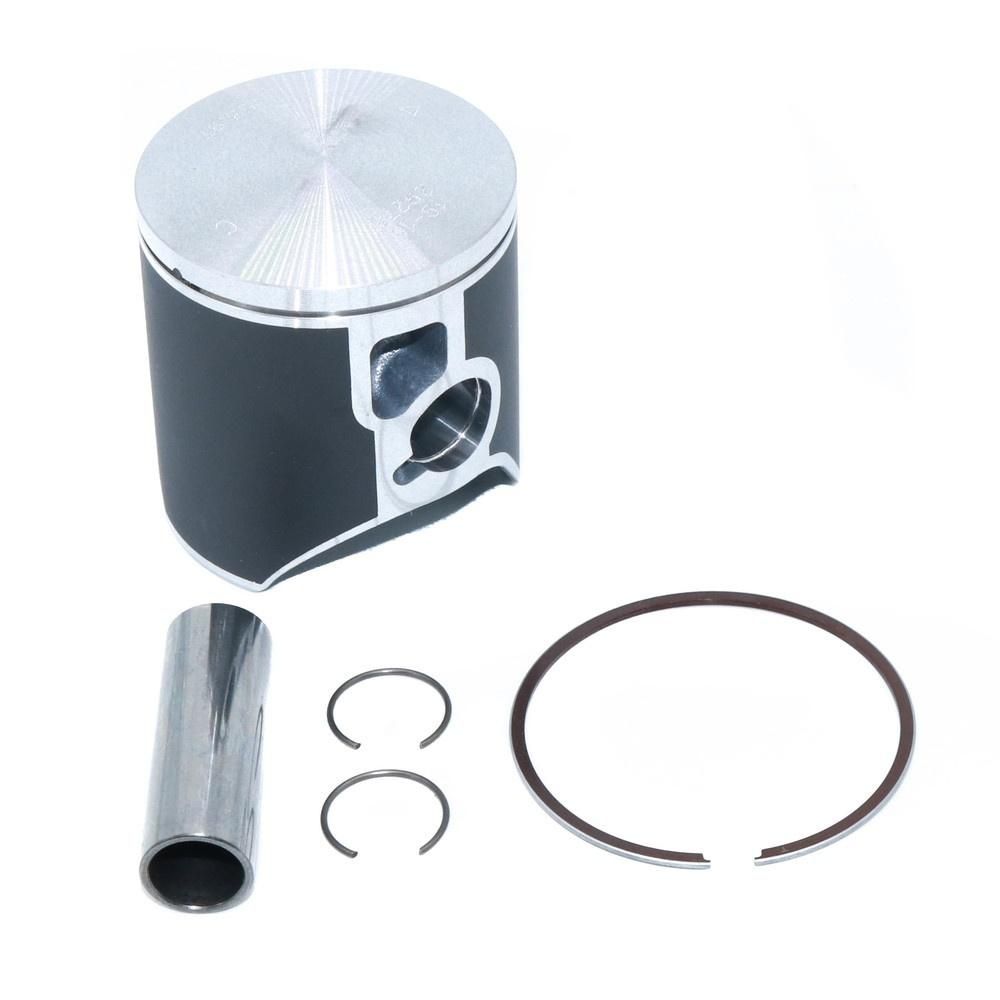

– Kits include piston, rings, wrist pin and circlips.
– All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
– Replacement rings are sold individually.
– Made in Italy.
– Fitted in many oem bikes as STD.
SPECIFICATION:
- BORE SIZE. 54.00mm [C 53.97mm]
Replacement Parts.
- Rings. 53010005400
- Pin. 711127
- Clips. 72071
Cross reference numbers ONLY.
- PISTON MODEL K1 12110-36E30-0F0 12110-36E31-0F0
- 12110-36E31-0F0 , 12110-36F00-0F0 , 12110-36F10-0F0 12110-36F00-0F0 ,
- RING, PISTON MODEL K3/K4/K5/K6 12141-36F00
- PIN, PISTON 12151-01B41
- CIRCLIP 09381-15001
MODEL FITMENT:
- SUZUKI RM 125 2000-2003
