| Size | 54.0mm |
|---|---|
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Catalogue | DIRT |
| Alternate SKU's | 4JY-11611-00-00, 4XM-11631-20-A0, 4XM-11631-20-B0, 4XM-11631-20-C0, 4XM-11631-20-D0, 4XM-11631-30-B0, 4XM-11631-30-C0, 4XM-11631-30-D0, 4XM-11633-10-00, 53010005400, 711127, 72071, 93450-16068-00 |
| Piston Diameter | |
| Bore Diameter | |
| Piston Grade | |
| Compression Ratio |

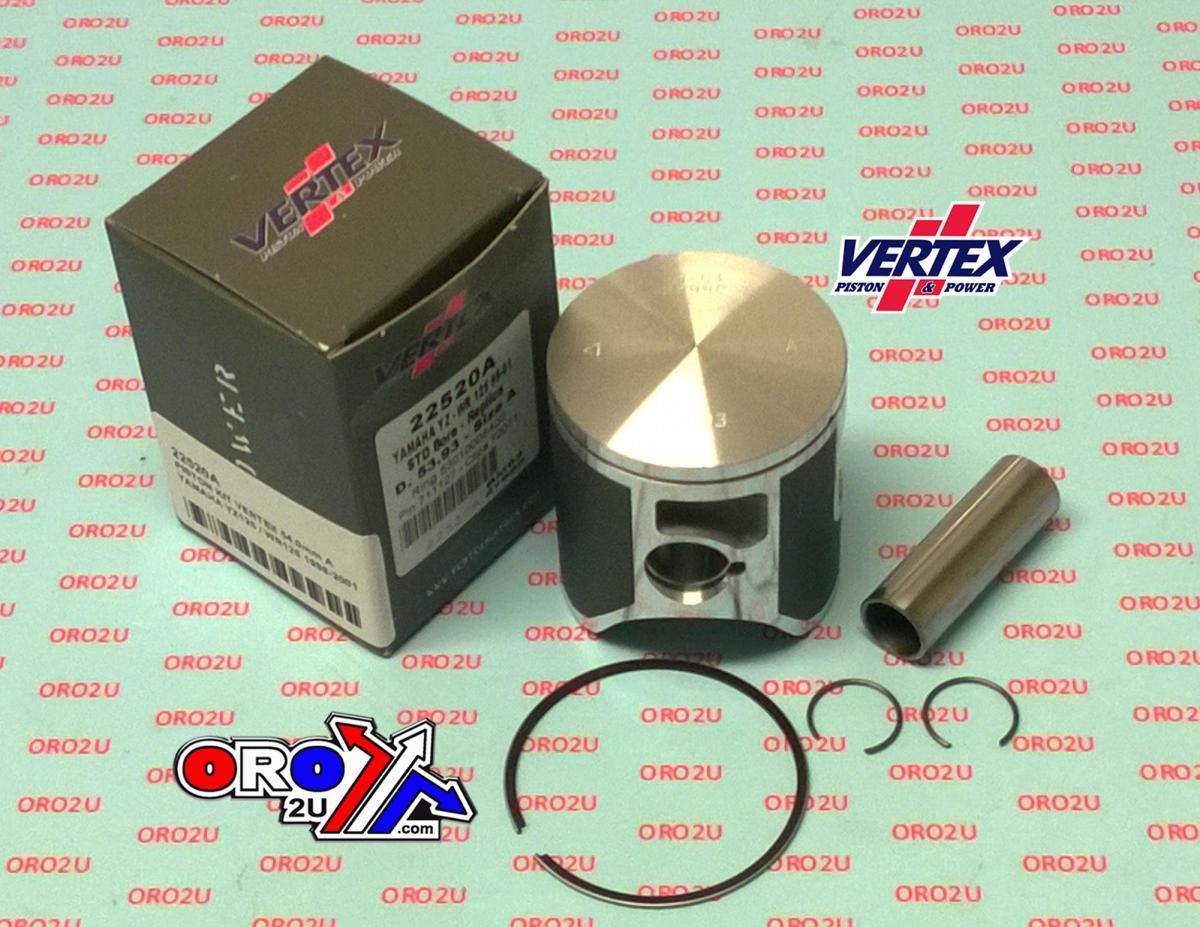

PISTON KIT VERTEX 54.0 A YAMAHA YZ/WR 125 98-01, VERTEX 22520A
VERTEX UK PISTON KIT 22520A (Distributed by oro2u.com)
All Vertex Pistons Feature:
– Standard pistons and components are OEM replacements.
– Kits include piston, rings, wrist pin and circlips.
– All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
– Replacement rings are sold individually.
– Made in Italy.
– Fitted in many oem bikes as STD.
SPECIFICATION:
- BORE SIZE. 54.00 [A 53.93mm]
Replacement Parts.
- Rings. 53010005400
- Pin. 711127
- Clips. 72071
Cross reference numbers ONLY.
- Piston (Std) UR 4XM-11631-20-D0 4XM-11631-30-D0
- Piston (Std) UR 4XM-11631-20-C0 4XM-11631-30-C0
- Piston (Std) UR 4XM-11631-20-B0 4XM-11631-30-B0
- Piston (Std) UR 4XM-11631-20-A0 4XM-11631-20-A0
- Ring, Piston 4JY-11611-00-00
- Pin, Piston 4XM-11633-10-00
- Circlip 93450-16068-00
MODEL FITMENT:
- YAMAHA YZ/WR 125 1998-2001
