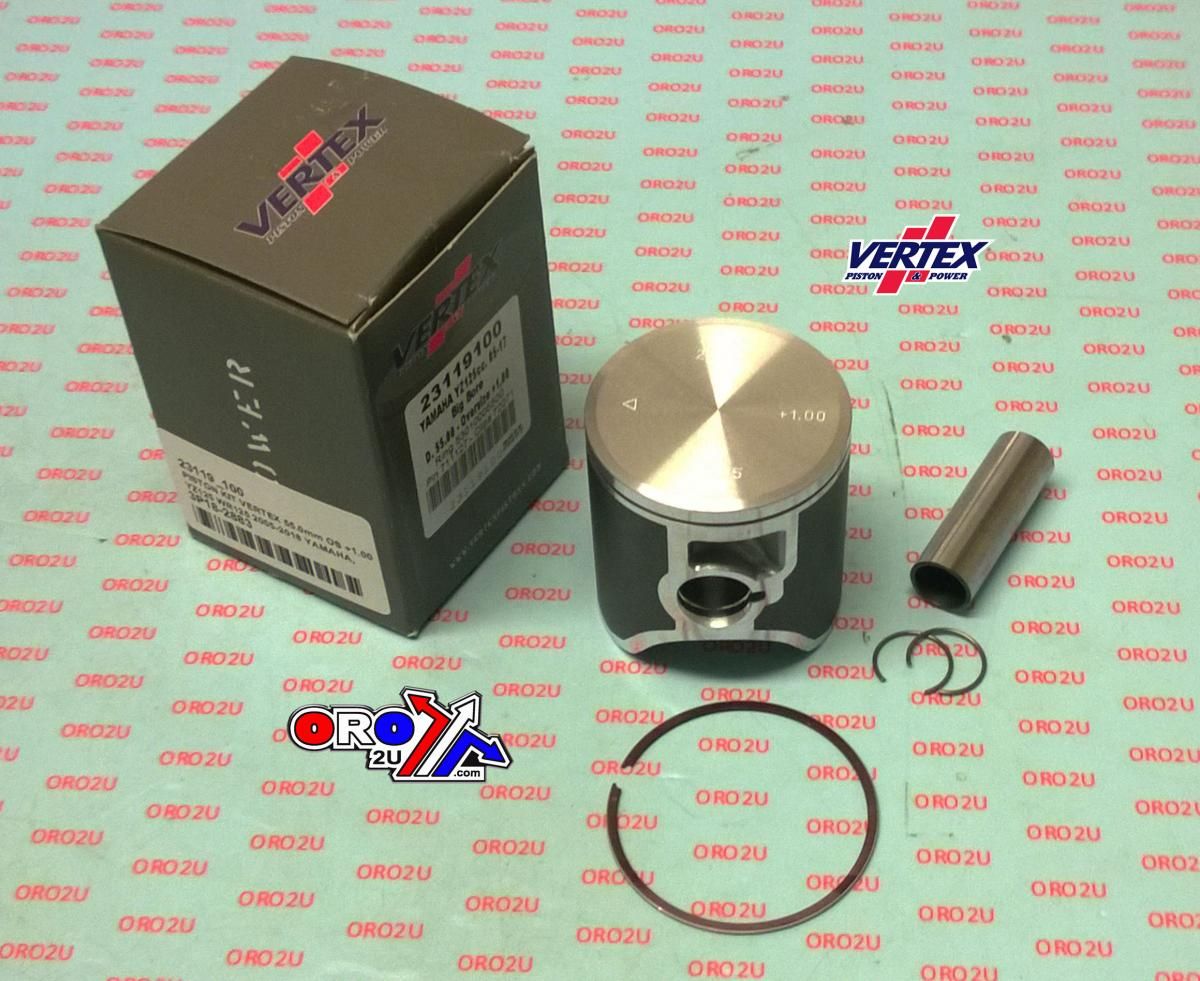

PISTON KIT VERTEX 54.0 A YAMAHA YZ/WR 125 05-21, VERTEX 23119A FANTIC XE/XX 125 21-22

VERTEX UK PISTON KIT         23119A           (Distributed by oro2u.com)

All Vertex Pistons Feature:
– Standard pistons and components are OEM replacements.

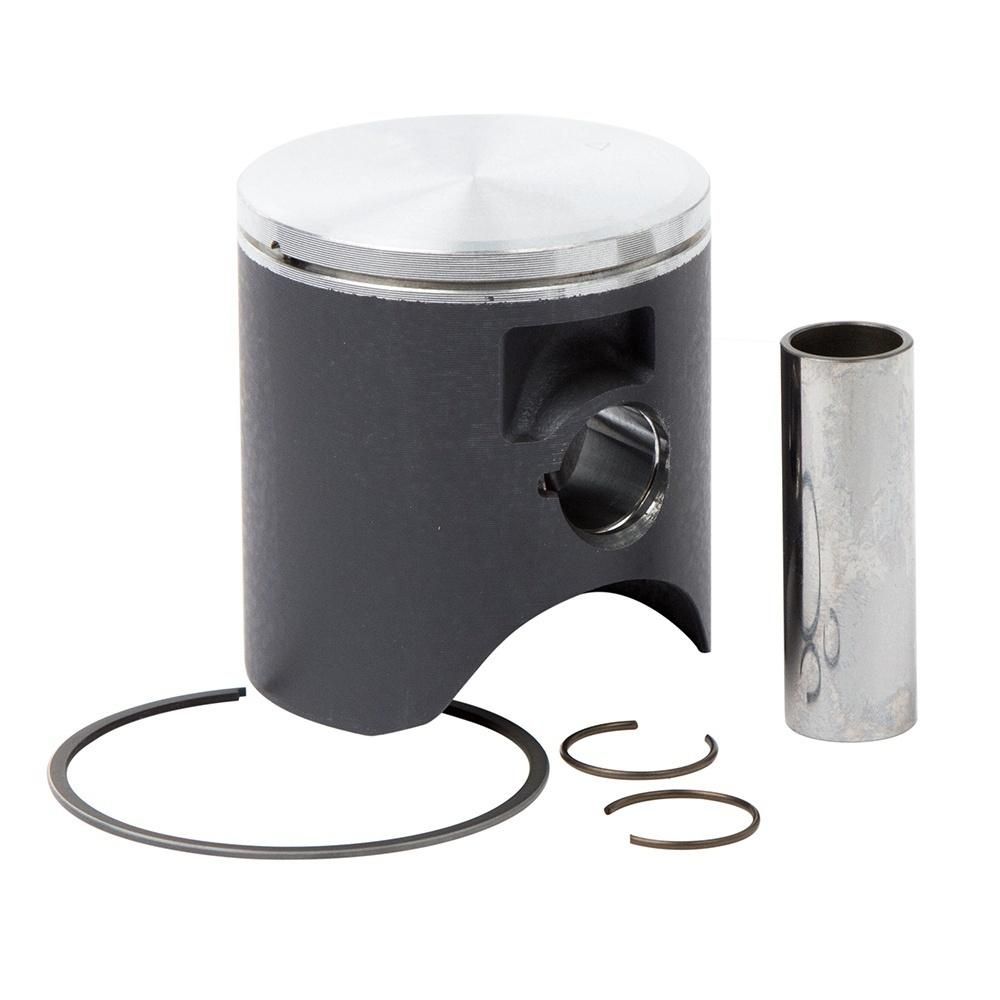

– Kits include piston, rings, wrist pin and circlips.
– All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
– Replacement rings are sold individually.
– Made in Italy.
– Fitted in many oem bikes as STD.

SPECIFICATION:

• BORE SIZE.   54.00mm   [A   53.93mm]

Replacement Parts.

• Rings.   53010005400
• Pin.   711127
• Clips. 72071

Cross reference numbers ONLY.

• Piston (Std) UR PURPLE 1C3-11631-01-D0 1C3-11631-03-D0
• Piston (Std) UR GREEN 1C3-11631-01-C0 1C3-11631-03-C0
• Piston (Std) UR ORANGE 1C3-11631-01-B0 1C3-11631-03-B0
• Piston (Std) UR RED 1C3-11631-01-A0 1C3-11631-03-A0
• Ring, Piston 5NY-11611-00-00
• Pin, Piston 1C3-11633-00-00
• Circlip 93450-16068-00

MODEL FITMENT

• FANTIC MOTOR XE 125 2021-2022
• FANTIC MOTOR XX 125 2021-2022
• YAMAHA YZ 125 2005-2021
• YAMAHA WR 125 2005-2021
