| Size | 54mm |
|---|---|
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Catalogue | DIRT |
| Alternate SKU's | 53010005400, 5NY-11611-00-00, 5NY-11631-01-A0, 5NY-11631-01-B0, 5NY-11631-01-C0, 5NY-11631-01-D0, , 5UN-11633-00-00, 711127, 72071, 93450-16068-00 |
| Piston Diameter | |
| Bore Diameter | |
| Piston Grade | |
| Compression Ratio |

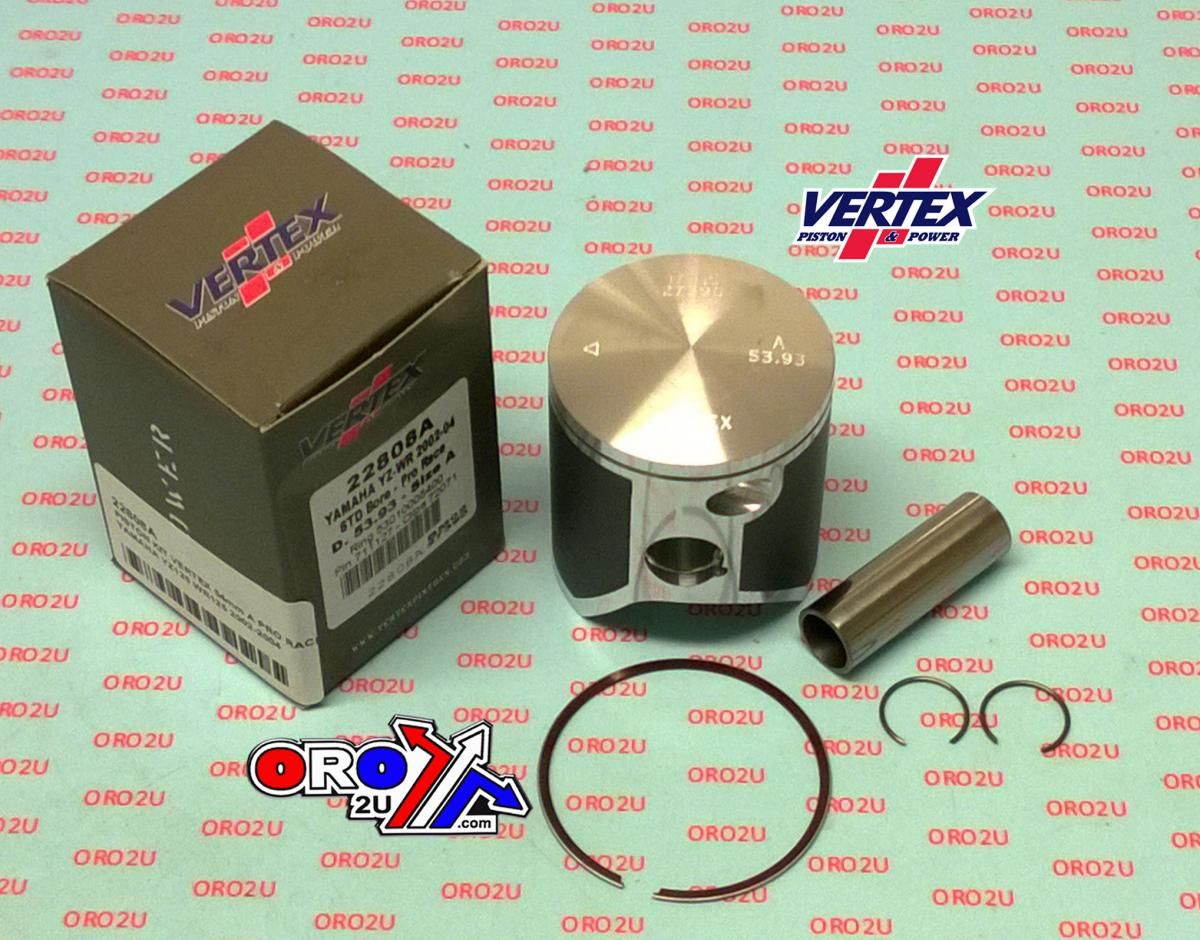

PISTON KIT VERTEX 54.0 A YAMAHA YZ/WR 125 02-04 PRO RACE, VERTEX 22808A
VERTEX UK PISTON KIT 22808A (Distributed by oro2u.com)
All Vertex Pistons Feature:
– Standard pistons and components are OEM replacements.
– Kits include piston, rings, wrist pin and circlips.
– All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
– Replacement rings are sold individually.
– Made in Italy.
– Fitted in many oem bikes as STD.
SPECIFICATION:
- BORE SIZE. 54.00mm [A 53.93mm]
Replacement Parts.
- Rings. 53010005400
- Pin. 711127
- Clips. 72071
Cross reference numbers ONLY.
- Piston (Std) UR 5NY-11631-01-D0, 5NY-11631-01-C0 , 5NY-11631-01-B0 , 5NY-11631-01-A0 ,
- Ring, Piston 5NY-11611-00-00
- Pin, Piston 5UN-11633-00-00
- Circlip 93450-16068-00
MODEL FITMENT:
- YAMAHA YZ 125 2002-2004 PRO RACE
- YAMAHA WR 125 2002-2004 PRO RACE
