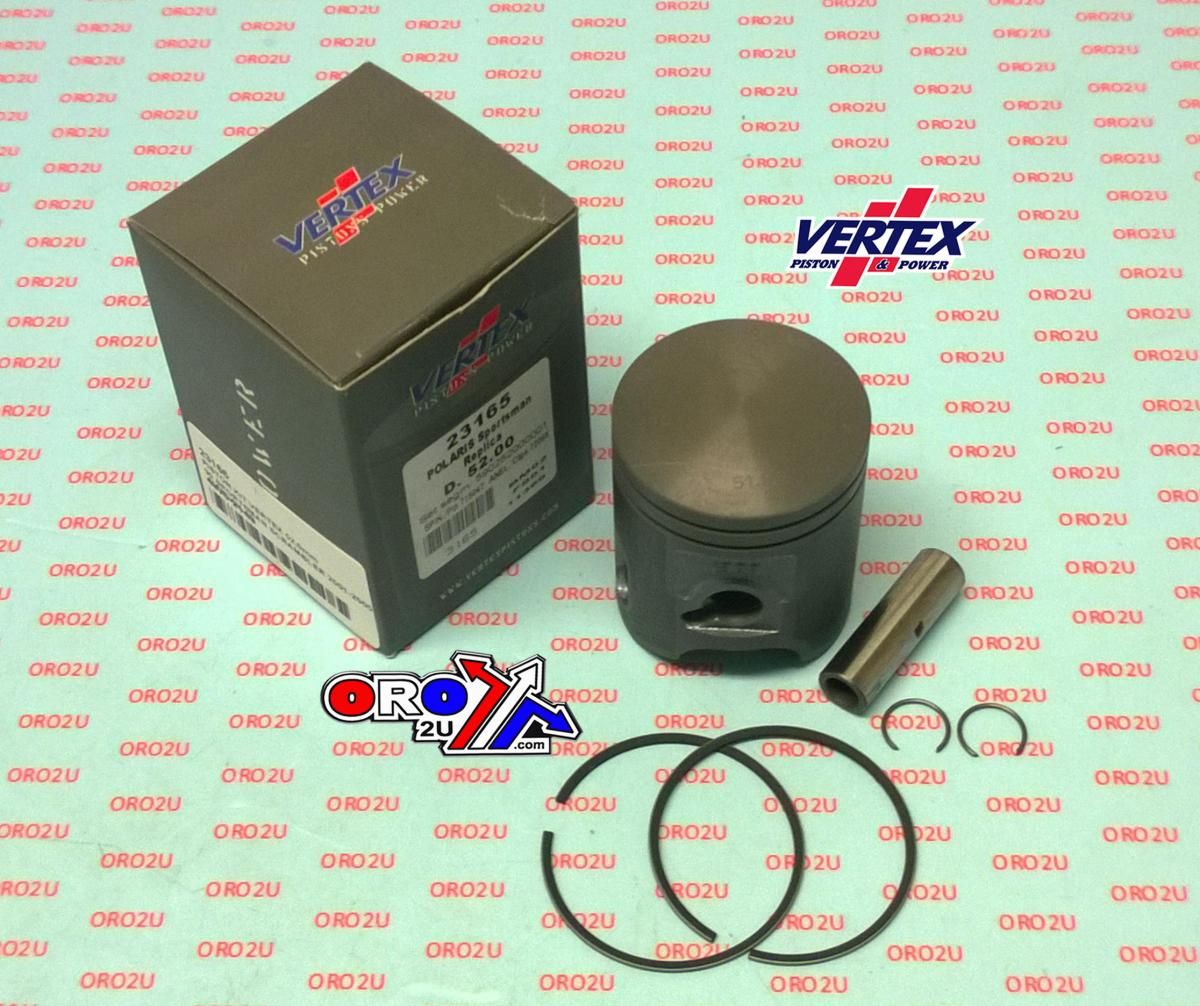

PISTON KIT VERTEX 53.0 POLARIS 90 SPORTSMAN 01-05, VERTEX 23165100 SCRAMBLER OS +1.00

VERTEX UK PISTON KIT             23165100       (Distributed by oro2u.com)

All Vertex Pistons Feature:
– Standard pistons and components are OEM replacements.

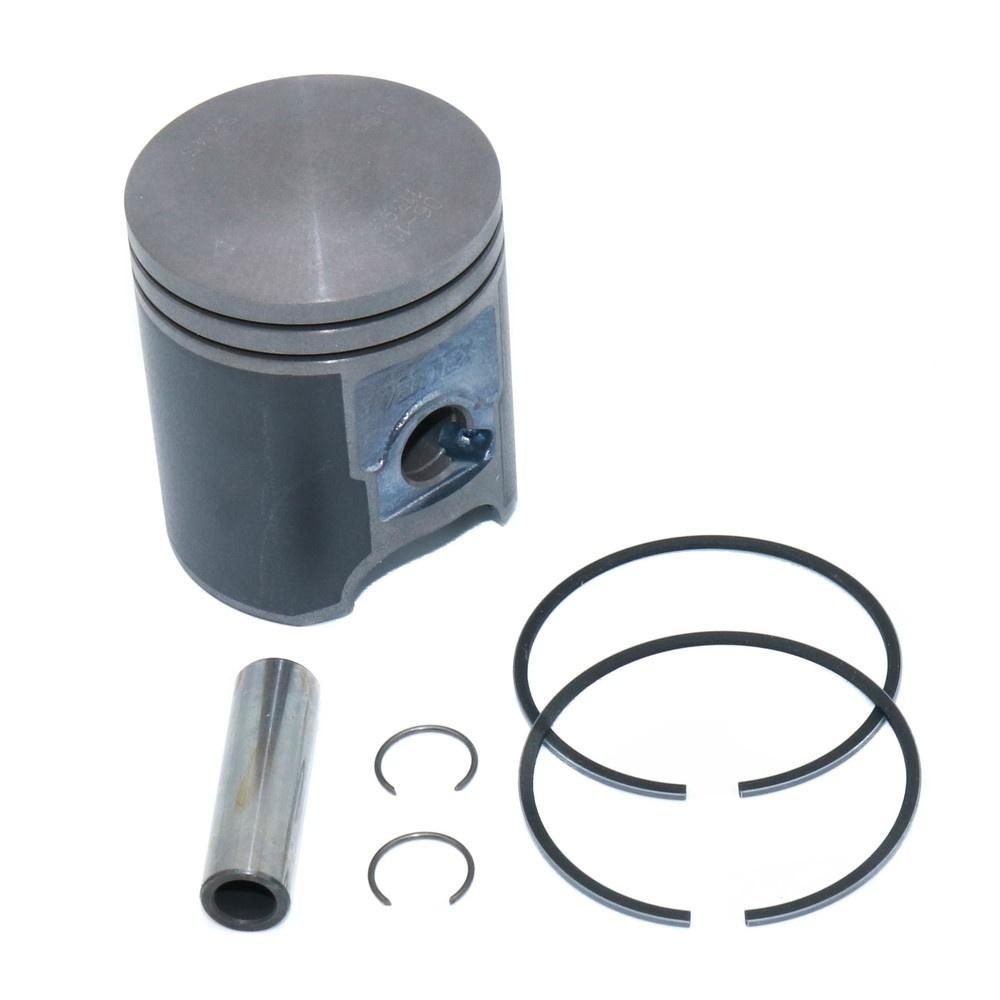

– Kits include piston, rings, wrist pin and circlips.
– All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
– Replacement rings are sold individually.
– Made in Italy.
– Fitted in many oem bikes as STD.

SPECIFICATION:

• BORE SIZE.   53.00mm   OVER SIZE +1.00mm [OS   52.95mm]

Replacement Parts.

• Rings.   590253000001 SET
• Pin.   715047
• Clips. 72065

Cross reference numbers ONLY.

• PIN-PISTON,13111-112-000 * 0450023
• CLIP-PISTON PIN(10) * 0450027
• PISTON,STANDARD [Std] 0450802
• PISTON,.010″/.25MM O/S [.25 mm O/S] 0450651
• PISTON,.020″/.50MM O/S [.50 mm O/S] 0450704
• RING SET-STD(2PC) [Std] 0450877
• RING SET-2PC,90CC (0.25 0/S) [.25 mm O/S] 0450025
• RING SET-2PC,90CC (0.50 O/S) [.50 mm O/S] 0450705

MODEL FITMENT

• POLARIS 90 SPORTSMAN 2001-2005
• POLARIS 90 SCRAMBLER 2001-2005
