| Size | 46mm |
|---|---|
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Alternate SKU's | 43K-11611-00-00, 4ES-11631-01-A0, 4ES-11631-01-B0, 4ES-11631-01-C0, 4ES-11631-01-D0, 4ES-11633-00-00, 53010004600, 715084, 72050, 93450-16115-00 |
| Piston Diameter | |
| Bore Diameter | |
| Piston Grade | |
| Compression Ratio |

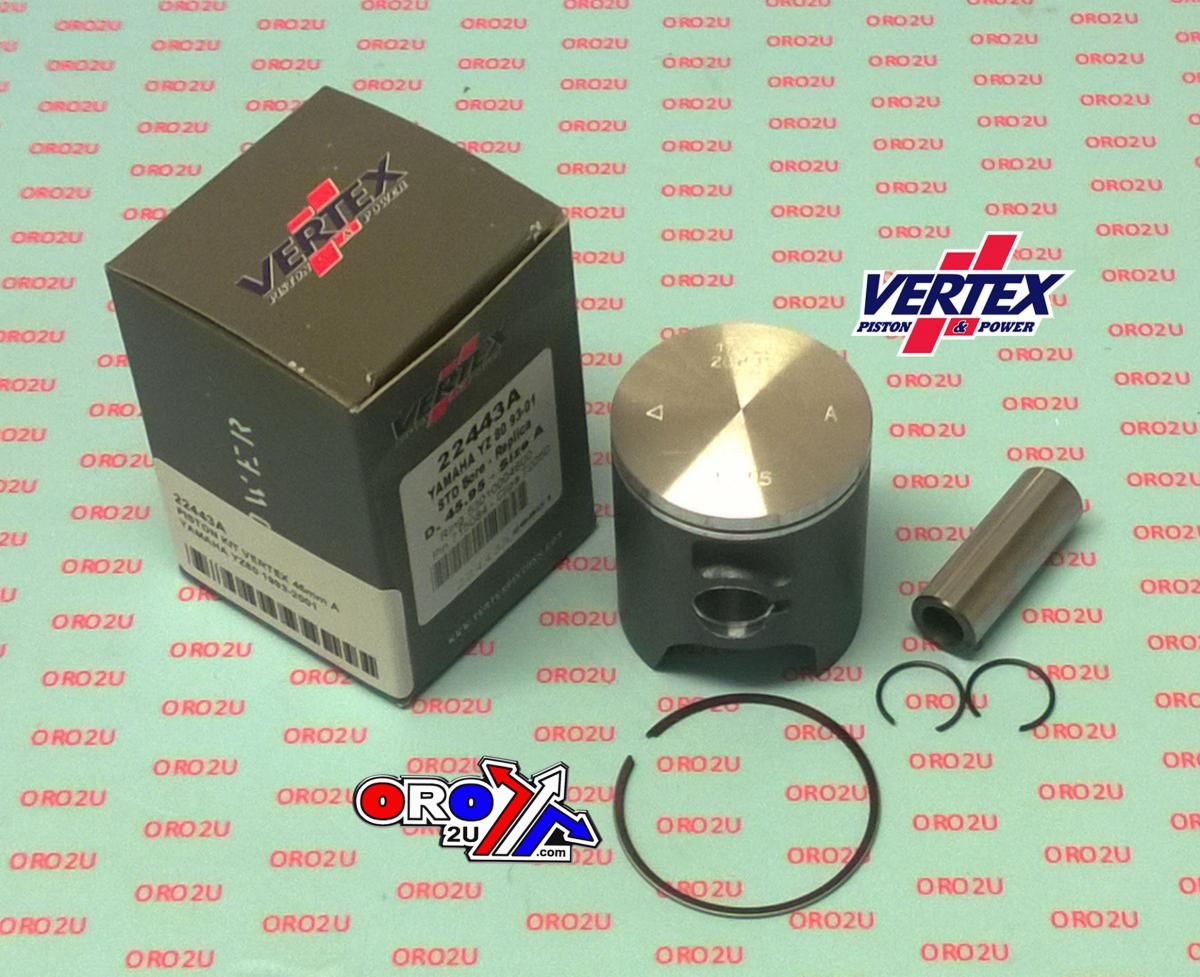

PISTON KIT VERTEX 46.0 D YAMAHA YZ 80 93-01, VERTEX 22443D
VERTEX UK PISTON KIT 22443D (Distributed by oro2u.com)
All Vertex Pistons Feature:
– Standard pistons and components are OEM replacements.
– Kits include piston, rings, wrist pin and circlips.
– All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
– Replacement rings are sold individually.
– Made in Italy.
– Fitted in many oem bikes as STD.
SPECIFICATION:
- BORE SIZE. 46.00mm [D 45.98mm]
Replacement Parts.
- Rings. 53010004600
- Pin. 715084
- Clips. 72050
Cross reference numbers ONLY.
- Piston (Std) UR PURPLE 4ES-11631-01-D0
- Piston (Std) UR GREEN 4ES-11631-01-C0
- Piston (Std) UR ORANGE 4ES-11631-01-B0
- Piston (Std) UR RED 4ES-11631-01-A0
- Pin, Piston 4ES-11633-00-00
- Ring, Piston 43K-11611-00-00
- Circlip 93450-16115-00
MODEL FITMENT:
- YAMAHA YZ80 1993-2001
