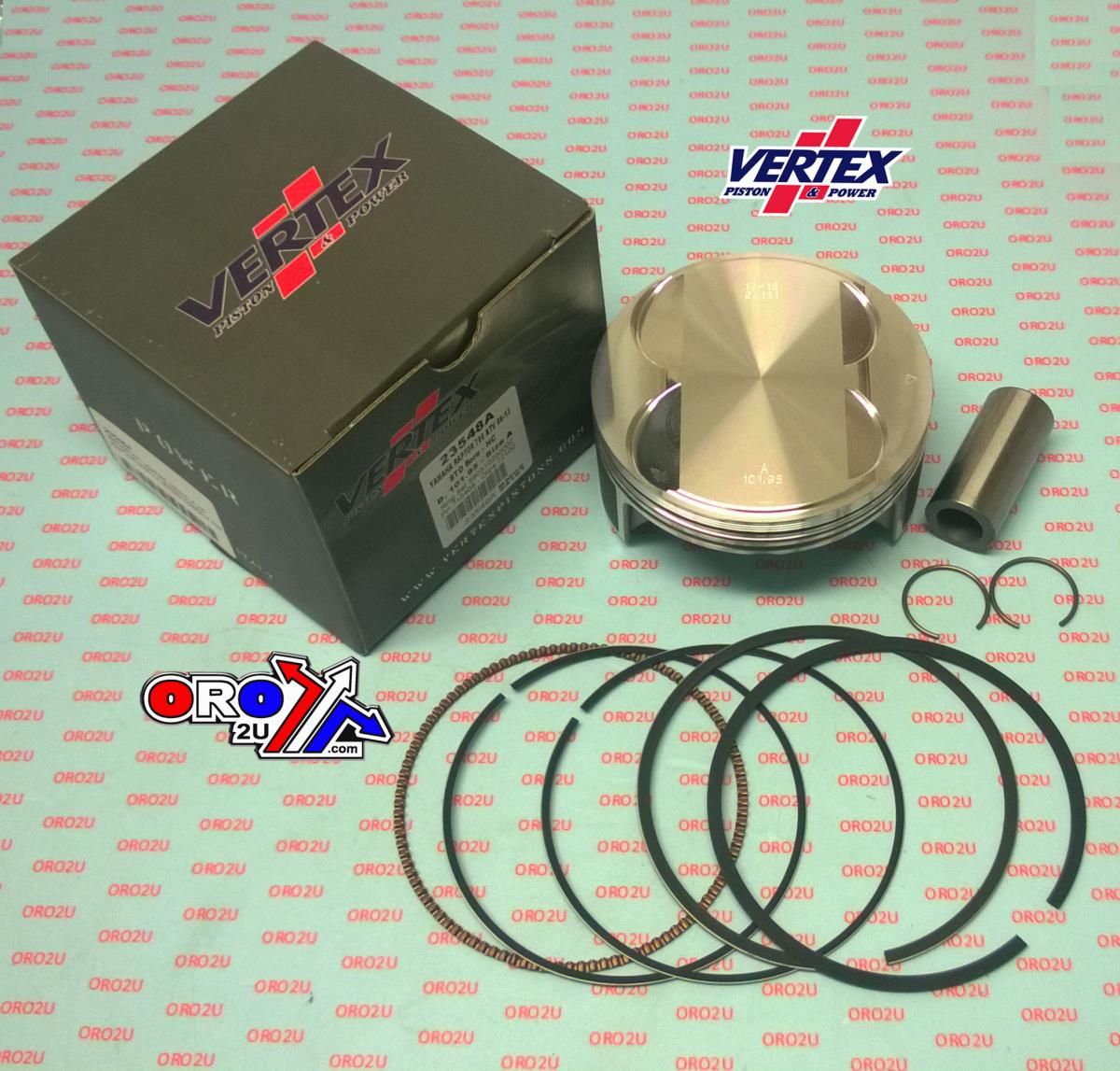

PISTON KIT VERTEX 102.0 A HC YAMAHA 700 RAPTOR 06-14, VERTEX 23548A RHINO/GRIZZLY HC COMPR 11,0:1

VERTEX UK PISTON KIT         23548A     HC Compr 11,0:1     (Distributed by oro2u.com)

All Vertex Pistons Feature:
– Standard pistons and components are OEM replacements.
– Kits include piston, rings, wrist pin and circlips.
– All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
– Replacement rings are sold individually.
– Made in Italy.
– Fitted in many oem bikes as STD.

SPECIFICATIONS

• BORE SIZE.   102.00mm [A   101.95mm]

Replacement Parts.

• Rings.   590310200002
• Pin.   715408
• Clips. 72100

Cross reference numbers ONLY.

• Piston (Std) 1S3-11631-10-00
• Ring Set (Std) 1S3-11603-10-00
• Pin, Piston 5VK-11633-00-00
• Circlip 93450-24154-00

MODEL FITMENT

• YAMAHA 700 RAPTOR 2006-2014 HC COMPR 11,0:1
• YAMAHA 700 RHINO 2006-2013 HC COMPR 11,0:1
• YAMAHA 700 GRIZZLY 2006-2013 HC COMPR 11,0:1
