PISTON KIT VERTEX 100.0 C HC KTM SX/XC 505 08-11, VERTEX 23417C HC ATV COMPR 12,5:1
Brand: Vertex
Stock: 1
| Size | 100mm |
|---|---|
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Alternate SKU's | 590210000001, 711174, 72073, 77630007000, 77630007200, 77630007300, 77630030000, 77630032000, 77630032100, 77630033000, 77630074000 |
| Piston Diameter | |
| Bore Diameter | |
| Piston Grade | |
| Compression Ratio |
PISTON KIT VERTEX 100.0 C HC KTM SX/XC 505 08-11, VERTEX 23417C HC ATV COMPR 12,5:1
VERTEX UK PISTON KIT 23417C HC Compr 12.5:1 (Distributed by oro2u.com)
All Vertex Pistons Feature:
– Standard pistons and components are OEM replacements.

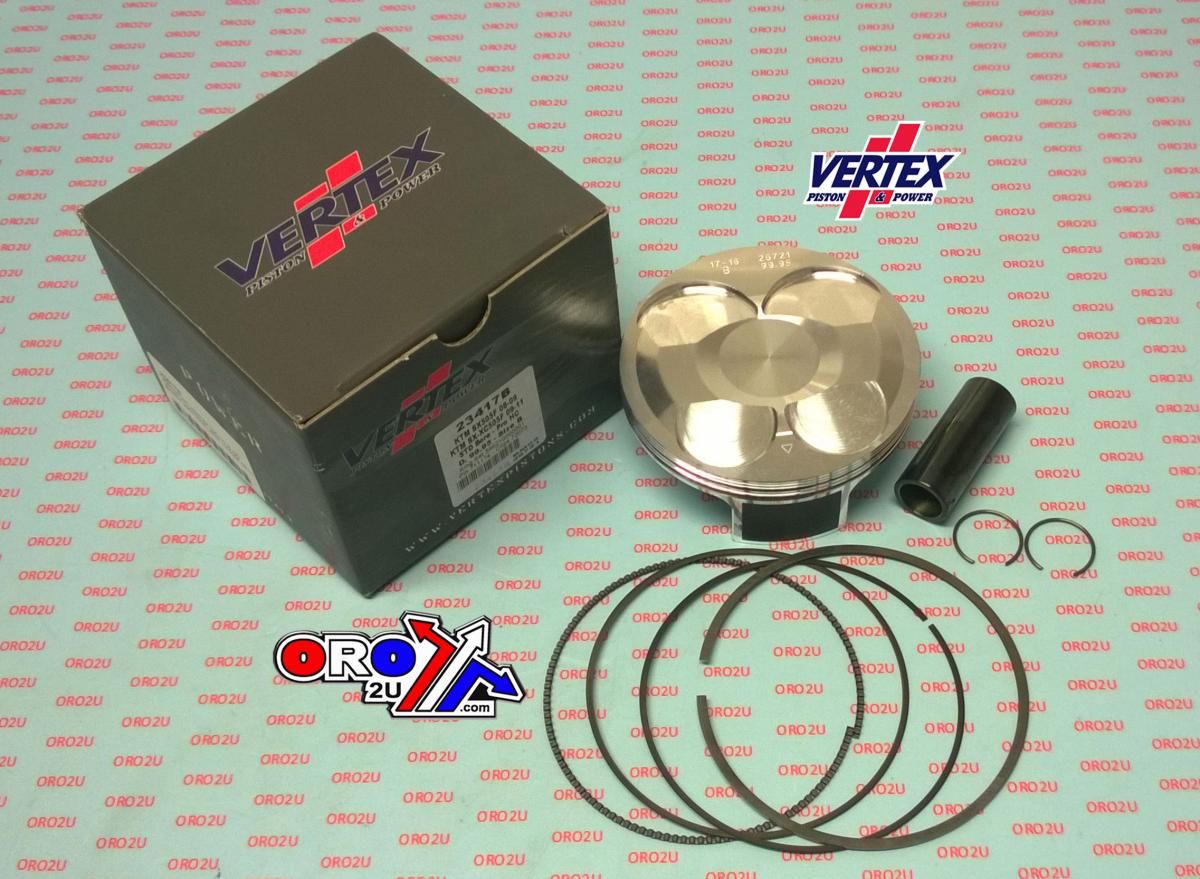

– Kits include piston, rings, wrist pin and circlips.
– All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
– Replacement rings are sold individually.
– Made in Italy.
– Fitted in many oem bikes as STD.
SPECIFICATIONS
- BORE SIZE. 100.00 [C 99.96mm]
Replacement Parts.
- Rings. 590210000001 SET
- Pin. 711174
- Clips. 72073
Cross reference numbers ONLY.
- Piston Pin 77630033000
- Circlip 77630074000
- Piston D=100 07 77630007000 I 77630007200 I
- Piston D=100 07 77630007000 II 77630007300 II
- Oil Scraper Ring 77630032000 77630032100
- Rectangular Ring D=100 07 77630030000
MODEL FITMENT
- KTM SX 505F 2008-2009 HC COMPR 13,5:1
- KTM SX 505F ATV 2009-2011 HC COMPR 12,5:1
- KTM XC 505F ATV 2008-2011 HC COMPR 12,5:1
