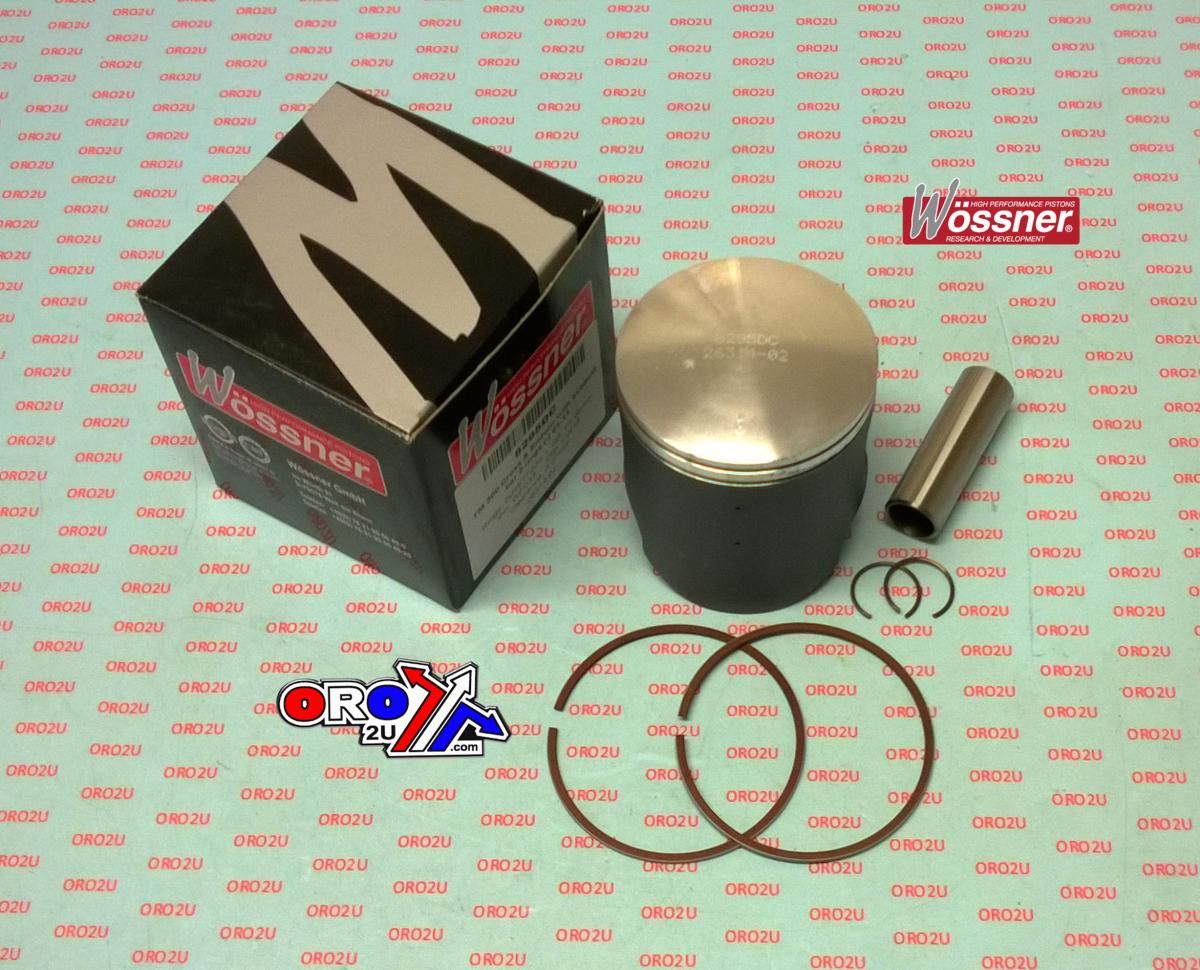

PISTON KIT TM 300 01-06 72.00, FORGED WOSSNER 8295DC

This Wossner piston kit features a 72.02mm bore with a measured diameter of 71.95mm, providing a +0.02mm oversize fitment. Designed for TM 300 MX and Enduro models from 2001 to 2006, this two-ring forged piston is built for durability, consistent heat transfer, and reliable performance in high-demand two-stroke engines.

Features

• Forged construction ensures high strength and long service life

• Optimised for efficient combustion chamber heat transfer to cylinder walls

• Elliptical profile maintains a uniform bearing surface during thermal expansion

• Even thrust load distribution minimises localised pressure and piston collapse risk

• Manufactured in Germany

Specifications

• Bore: 72.02mm

• Diameter: 71.95mm

• Stroke: 73.70 mm

• Clearance: 0.07 mm

• Compression Ratio (Wossner): 2-stroke

• Compression Ratio (OEM): 2-stroke

• Compression Height: 38.00 mm

• Ring Type: Two Ring

• Clips P/N: CW18

• Pin P/N: WP033

• Ring Set P/N: RST7200 x 2

Cross-Reference OEM Part Numbers

• Part No. 56-W9920.00C.WO

• Wossner Piston 8295DC

Vehicle Fitments

• TM 300 MX 2001–2006

• TM 300 Enduro 2001–2006
