PISTON KIT SET/4 HAYABUSA 83, WOSSNER K8736D200-4 SUZUKI, TURBO 2008-ON DISPL. 1406cc

This piston kit is designed for turbocharged Suzuki Hayabusa models from 2008 onwards. It features forged Wossner pistons engineered for high-performance applications, delivering excellent heat transfer and structural integrity. The pistons are elliptical in design to optimise load distribution and prevent collapse under high stress. Manufactured in Germany, this +2mm oversized set increases engine displacement to 1406cc.

Features

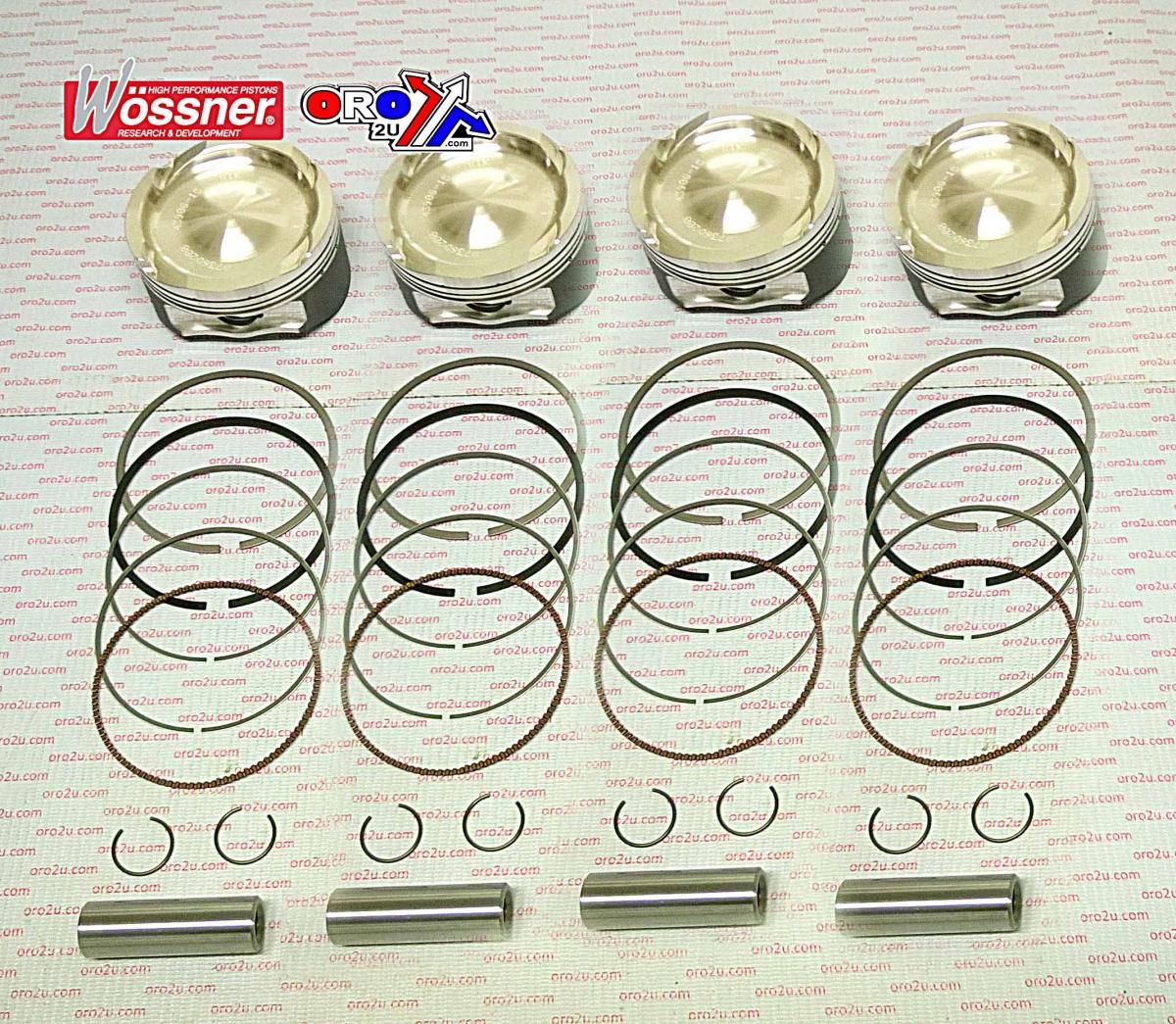

• Set of 4 forged Wossner pistons

• +2.00mm oversized (83.00mm bore)

• Elliptical shape for improved bearing surface and thrust load distribution

• Engineered for superior heat transfer to cylinder walls

• Designed to withstand high-performance turbo applications

• Made in Germany

Specifications

• Part Number: K8736D200-4

• Bore Size: 83.00mm (actual piston size 82.92mm)

• Displacement: 1406cc

• Original Display (cm³): 1340 / 1406

• Stroke: 65.00mm

• Clearance: 0.08mm

• Wossner Compression Ratio: 9.00:1

• OEM Compression Ratio: 12.50:1

• Dome Volume: -19.40cm³

• Compression Height: 24.00mm

Cross-Reference OEM Part Numbers

• Clip: CW18

• Piston Pin: WP064

• Replacement Ring Set: RIK83.00A

Vehicle Fitments

• Suzuki Hayabusa Turbo 2008-On
