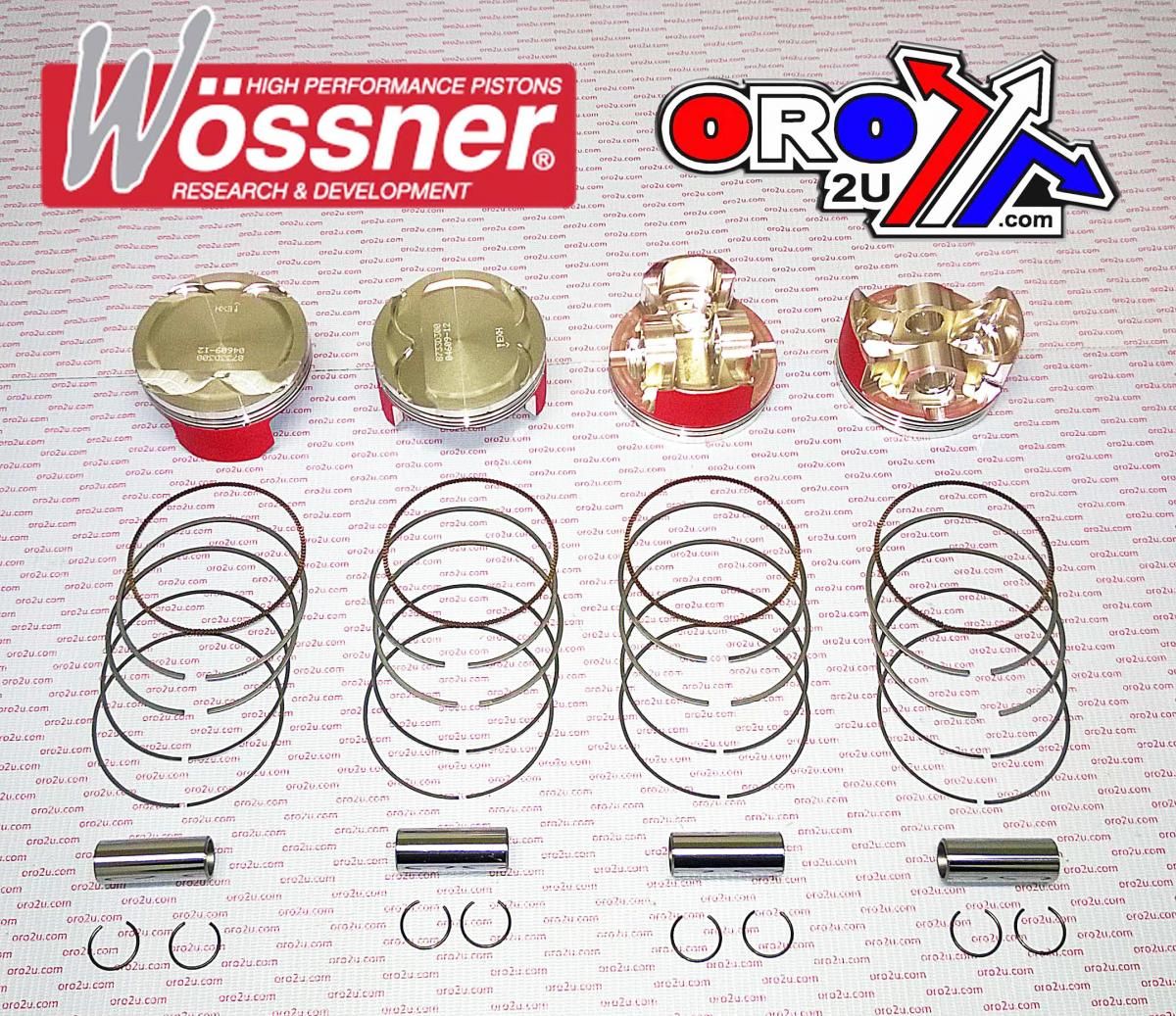

PISTON KIT SET/4 HAYABUSA 83, WOSSNER K8733D200-4 SUZUKI, 2008-2016 DISPL. 1406cc

This Wossner forged piston kit K8733D200-4 features an 83.00mm bore (+2.00mm oversize) and is engineered for SUZUKI HAYABUSA GSX R 1300 models from 2008 to 2016. Supplied as a set of four high-compression 3-ring pistons from the Pro Series, this kit is designed to support increased displacement and turbo or high-performance naturally aspirated setups. Manufactured in Germany, it delivers outstanding structural integrity, thermal performance, and dimensional precision.

Features

• Forged 3-ring piston design for enhanced durability under high-performance conditions

• Engineered for optimal heat transfer from combustion chamber to cylinder wall

• Elliptical shape supports even expansion and balanced thrust load distribution

• Minimises localised stress to prevent piston collapse

• Manufactured in Germany

Specifications

• Bore: 83.00mm (+2.00mm oversize)

• Piston code: Wossner K8733D200-4

• Clip part number: CW18

• Piston pin: WP054

• Ring set: RIK83.00A

• Displacement options: 1340 / 1406 / 1440 / 1474 cm³

• Stroke: 63.00 mm

• Clearance: 0.07 mm

• Wossner compression ratio: 9.00:1

• OEM compression ratio: 11.00:1

• Dome volume: -17.80 cm³

• Compression height: 26.80 mm

Cross-Reference OEM Part Numbers

• Part No. 56-W9895.200.WO

Vehicle Fitments

• SUZUKI HAYABUSA GSX R 1300 2008–2016
