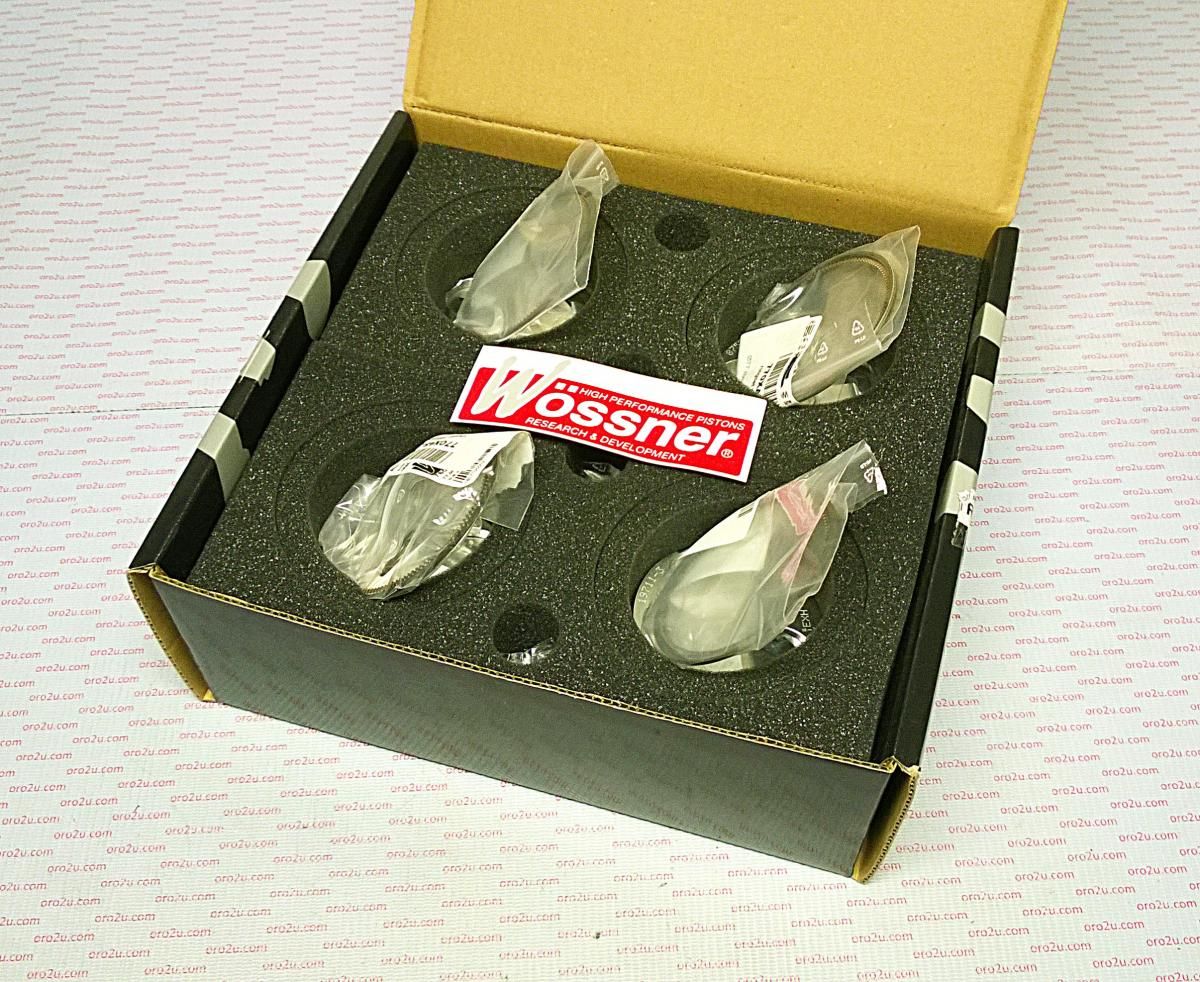

PISTON KIT SET/4 GSXR1100 82, WOSSNER K8530D400-4 SUZUKI, OVERSIZE 4.00mm / 1224cc

Piston kit 82mm Bore 81.94 Wossner SET/4 K8530D400-4 (+4mm)

SUZUKI
GSXR1100 1989-1992,
GSF1200 BANDIT 1989-1992,

GSX1100F KATANA 1989-1992,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W9890.400.WO (oro2u.com)
SUZUKI GSXR1100 1989-1992, SUZUKI GSF1200 BANDIT 1989-1992, SUZUKI GSX1100F KATANA 1989-1992,

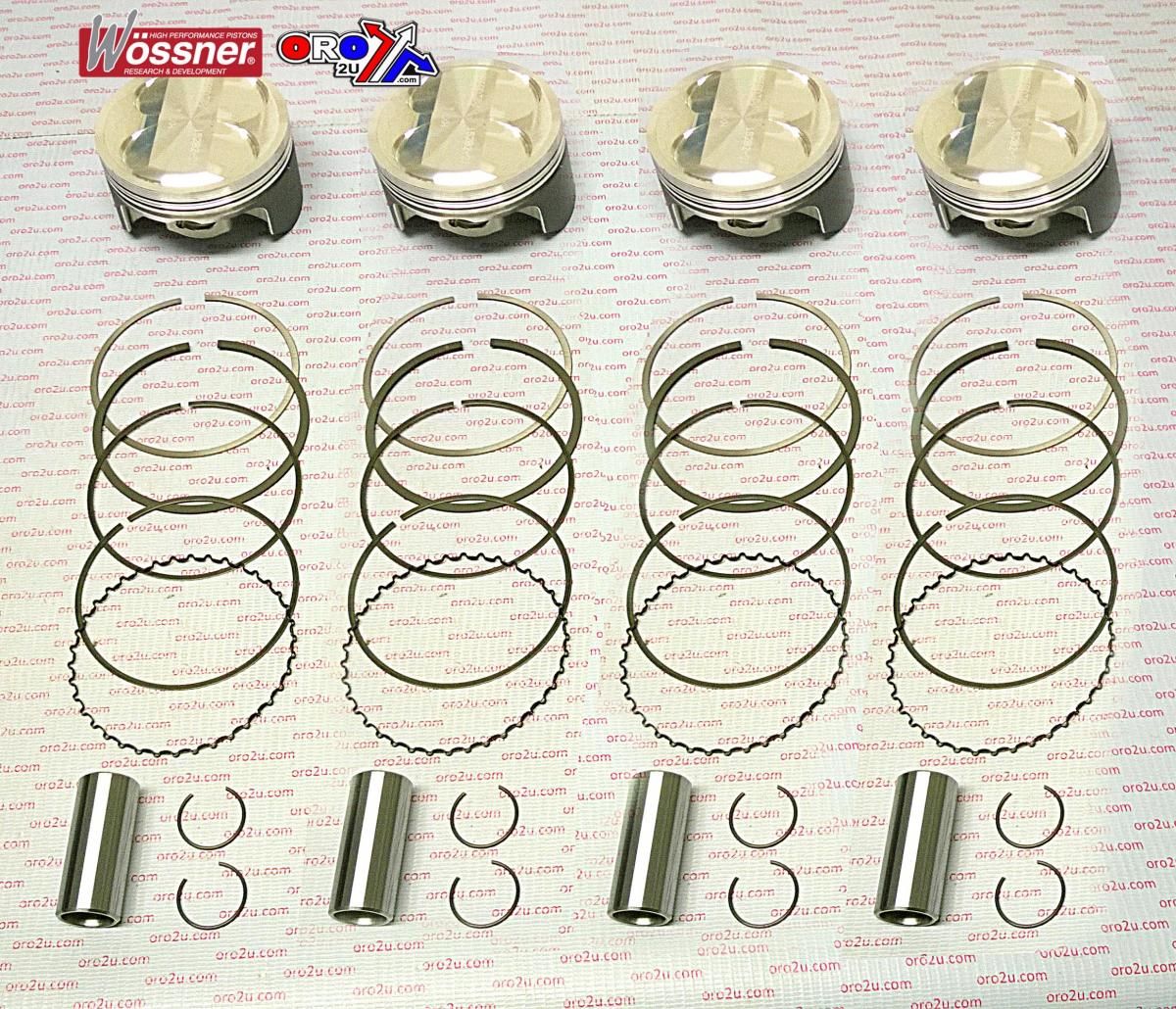

PISTON KIT SET/4 WOSSNER K8530D400-4 O/S 4.00mm 82.00mm.

CLIP No. CW20,
PIN No. WP029,
RINGS No. 820XSY

COMP.RATIO 12.5:1 COMP.HEIGHT 25.30mm

Display (cm3) 1165/1194/1224/1254/1315
Hub stroke (mm) 58.00
Clearance (mm) 0.06
Wossner compression Ratio: 12.5:1
OEM Compression ratio: 10.0:1
Dome volume (cm3) +3.80
Compression height (mm) 25.30
Theorectical weight (G)
