| Size | 74.00mm |
|---|---|
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Catalogue | ROAD |
| Piston Diameter | 74.00 |

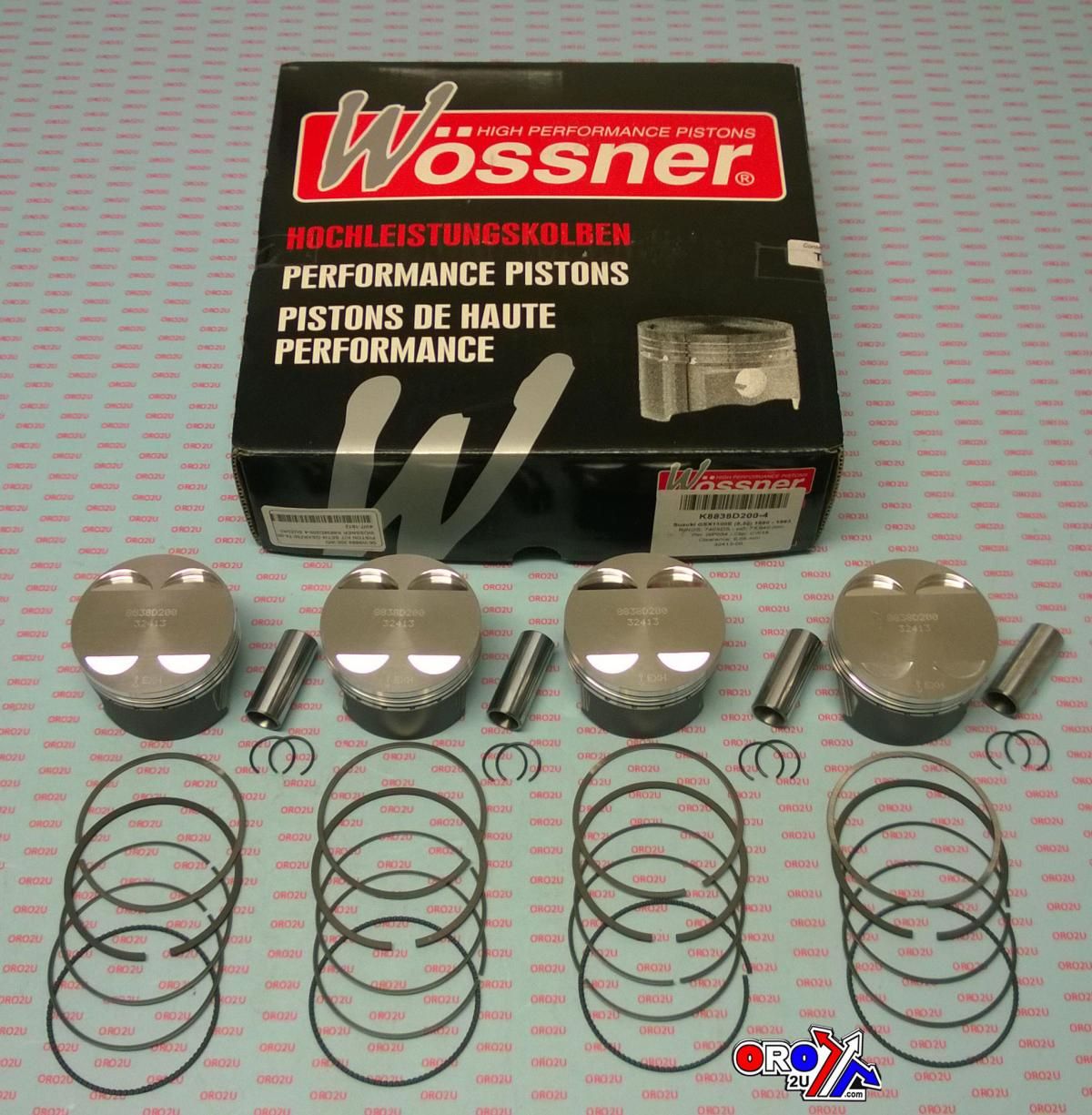

PISTON KIT SET/4 GSX1100 74.00, WOSSNER K8838D200-4 SUZUKI, OVERSIZE 2.00mm
This Wossner forged piston kit K8838D200-4 features a 74.00mm bore (+2.00mm oversize) and is specifically designed for SUZUKI GSX1100E models from 1980 to 1983. Supplied as a set of four pistons, this high-performance kit provides increased displacement and compression, enhancing overall engine output. Manufactured in Germany, it delivers superior heat management, structural strength, and dimensional accuracy under extreme operating conditions.
Features
-
Forged piston design for exceptional durability and performance
-
Optimised combustion chamber heat transfer to cylinder walls
-
Elliptical shape ensures even expansion and load distribution
-
Prevents piston collapse by minimising localised thermal stress
-
Manufactured in Germany
Specifications
-
Bore: 74.00mm (+2.00mm oversize)
-
Piston code: Wossner K8838D200-4
-
Clip part number: CW18
-
Piston pin: WP054
-
Ring set: 740XDS
-
Displacement: 1134 cm³
-
Stroke: 44.7 mm
-
Clearance: 0.06 mm
-
Wossner compression ratio: 11.70:1
-
OEM compression ratio: 10.90:1
-
Dome volume: +5.70 cm³
-
Compression height: 23.80 mm
Cross-Reference OEM Part Numbers
-
Part No. 56-W9889.200.WO
Vehicle Fitments
-
SUZUKI GSX1100E 1980–1983
