| Product Type | Pistons & Kits |
|---|---|
| Product Group | Engine |
| Catalogue | ROAD |
| Piston Diameter | 61.50 |

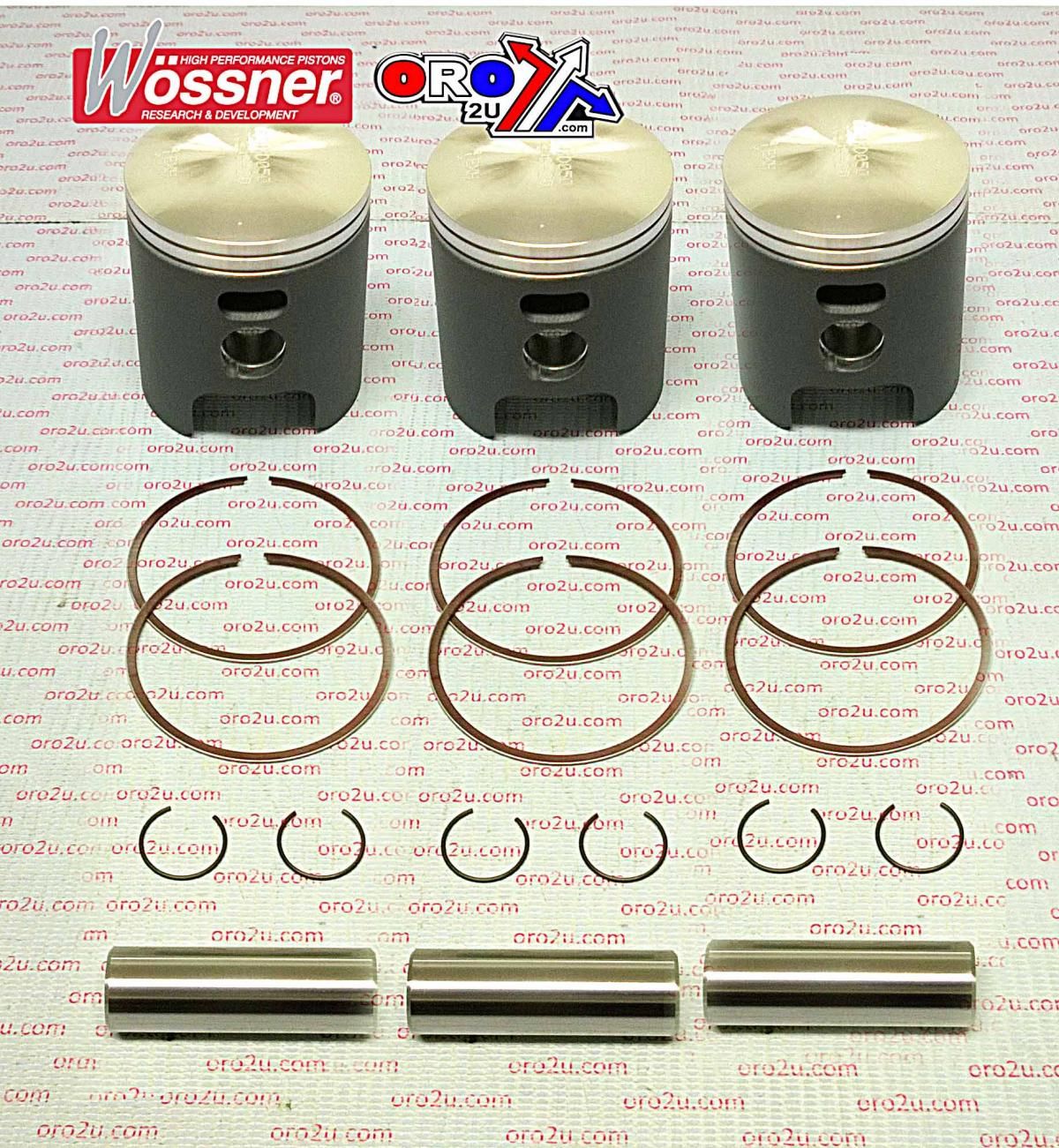

PISTON KIT SET/3 KAW. 500 KH, WOSSNER K8247D150-3 61.50mm
The Wossner K8247D150-3 piston kit is a +1.50mm oversize forged piston set engineered for Kawasaki 500cc triple-cylinder models from 1969 to 1976. Featuring a 61.50mm bore and two-stroke compatibility, this kit offers excellent heat management and structural integrity. Made in Germany, it includes three pistons and all necessary installation components.
Features
-
Forged high-performance pistons with skirt coating
-
Elliptical design ensures even heat expansion and load distribution
-
Engineered for efficient combustion chamber heat transfer to cylinder walls
-
Designed for two-stroke engines
-
Includes piston pins, clips, and rings
Specifications
-
Bore size: 61.50mm (+1.50mm oversize)
-
Measured bore: 61.43mm
-
Display displacement: 498 cm³
-
Stroke: 58.80mm
-
Clearance: 0.07mm
-
Compression height: 31.90mm
-
Theoretical weight: 177g
-
Wossner compression ratio: 2-stroke
-
OEM compression ratio: 2-stroke
-
Quantity: 3 pistons per kit
-
Made in Germany
Cross-Reference OEM Part Numbers
-
Part No. 56-W9867.150.WO
-
Clip: CW16
-
Piston Pin: WP041
-
Ring Set: RSB6150 x 2 per piston
Vehicle Fitments
-
Kawasaki 500S 1969–1976
-
Kawasaki 500 H1 1969–1976
-
Kawasaki 500 KH 1969–1976
-
Triple Cylinder Models
