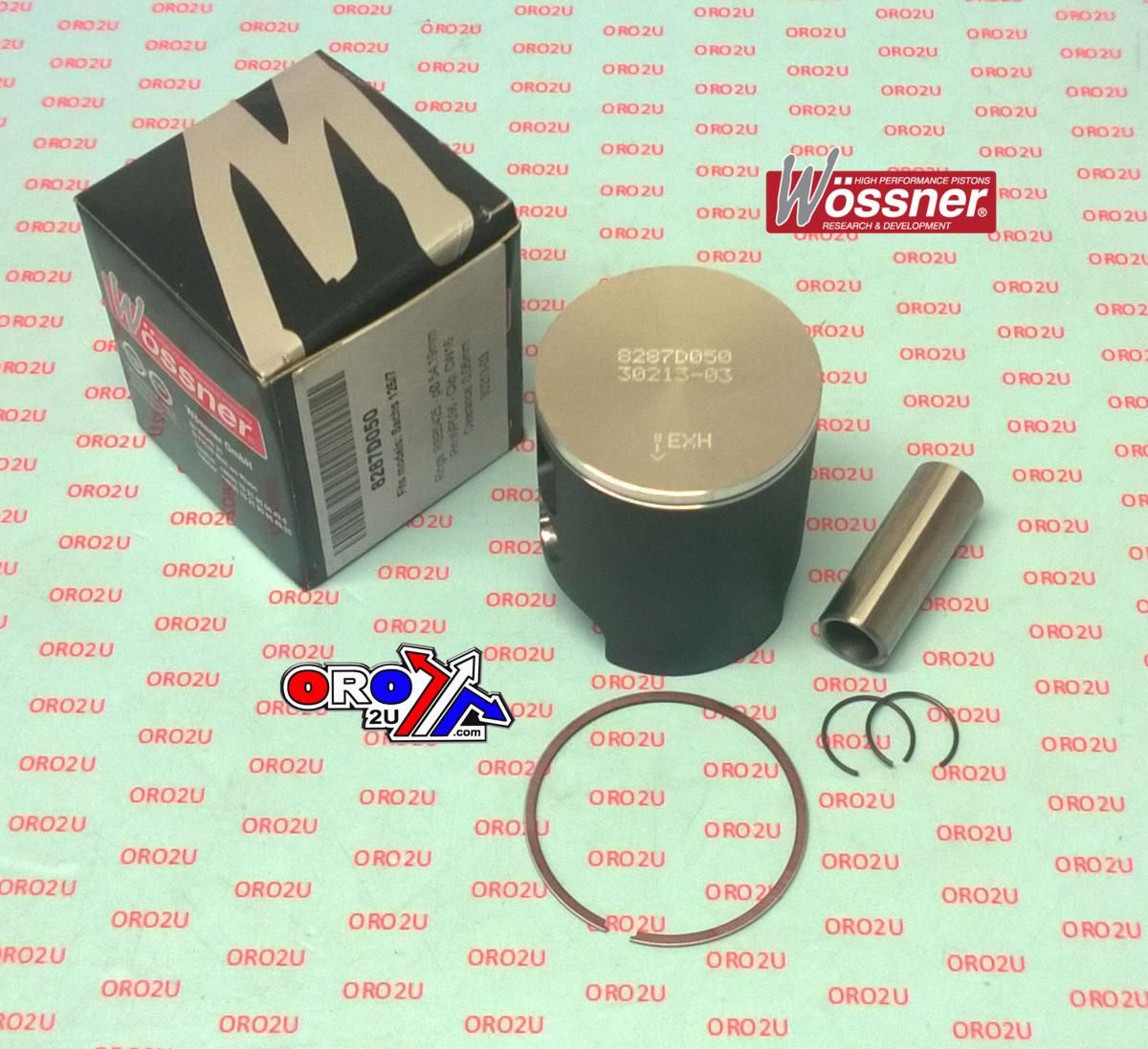

PISTON KIT SACHS 125/7 55.25, WOSSNER 8287D150 PIN 16mm

This Wossner forged piston kit with a 55.25mm bore is an oversized (+1.50mm) replacement for the Sachs 125/7 engine. Manufactured in Germany, it delivers excellent strength and heat transfer performance. The elliptical piston design ensures even pressure distribution during thermal expansion, reducing localised stress and enhancing durability in two-stroke engine applications.

Features

• Forged construction for superior strength and longevity

• Engineered for efficient combustion chamber heat dissipation

• Elliptical profile maintains consistent bearing surface under thermal load

• Even distribution of thrust loads minimises piston stress and wear

• Manufactured in Germany

Specifications

• Bore: 55.25mm (+1.50mm Oversize)

• Actual bore: 55.19mm

• Display volume: 122 cm³

• Stroke: 54.00mm

• Clearance: 0.06mm

• Wossner compression ratio: 2-stroke

• OEM compression ratio: 2-stroke

• Compression height: 38.00mm

Cross-Reference OEM Part Numbers

• 56-W9844.150

• 8287D150

• Clip Part Number: CW16

• Pin Part Number: WP136

• Ring Set Part Number: RSB5525 (x2)

Vehicle Fitments

• Sachs 125/7
