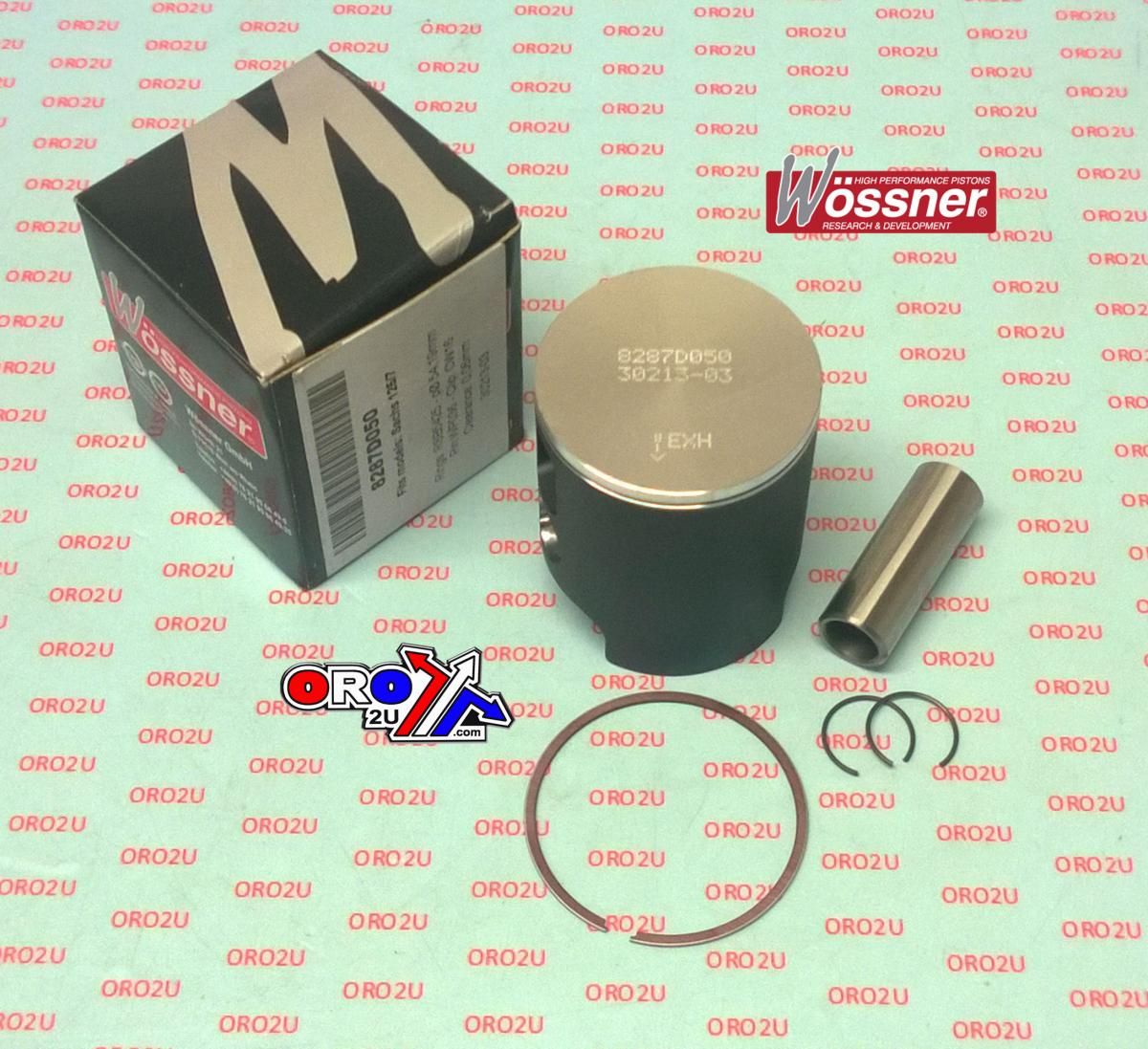

PISTON KIT SACHS 125/7 54.25, WOSSNER 8287D050 PIN 16mm

This Wossner forged piston kit with a 54.25mm bore is an oversized (+0.50mm) replacement for the Sachs 125/7 engine. Manufactured in Germany, the piston is designed for strength, longevity, and efficient thermal performance. Its elliptical profile ensures even expansion and pressure distribution, reducing the risk of piston failure in two-stroke applications.

Features

• Forged construction for superior strength and durability

• Designed for efficient heat dissipation from combustion to cylinder walls

• Elliptical design provides a uniform bearing surface under thermal expansion

• Even distribution of thrust loads reduces localised pressure points

• Manufactured in Germany

Specifications

• Bore: 54.25mm (+0.50mm Oversize)

• Actual bore: 54.14mm

• Display volume: 122 cm³

• Stroke: 54.00mm

• Clearance: 0.06mm

• Wossner compression ratio: 2-stroke

• OEM compression ratio: 2-stroke

• Compression height: 38.00mm

Cross-Reference OEM Part Numbers

• 56-W9844.050

• 8287D050

• Clip Part Number: CW16

• Pin Part Number: WP136

• Ring Set Part Number: RSB5425 (x2)

Vehicle Fitments

• Sachs 125/7
