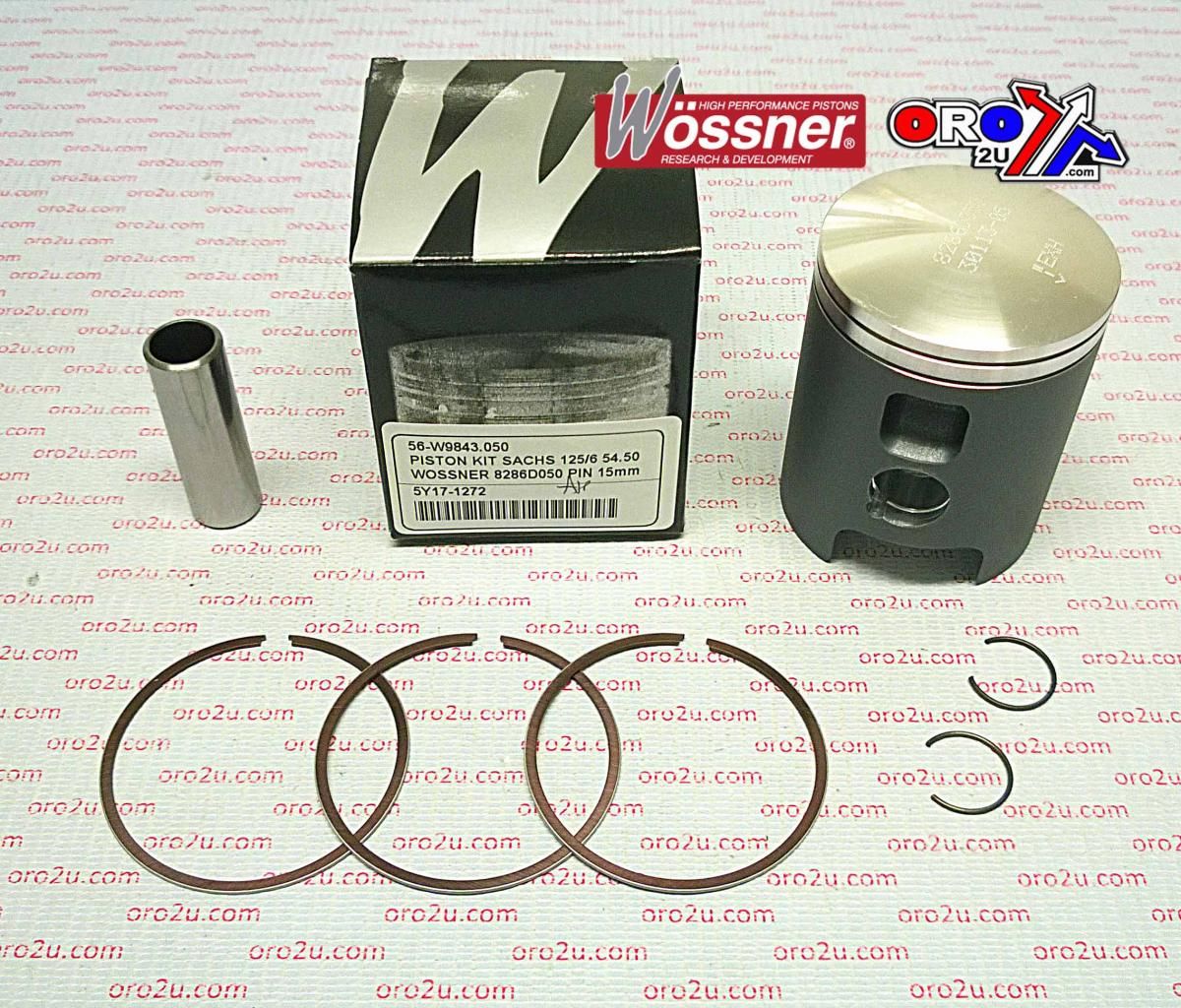

PISTON KIT SACHS 125/6 54.50, WOSSNER 8286D050 PIN 15mm

This Wossner forged piston kit with a 54.50mm bore is a standard replacement for the Sachs 125/6 engine. Forged in Germany, the piston offers superior strength and efficient thermal characteristics. Its elliptical profile ensures uniform expansion under operating temperatures, reducing stress and preventing piston collapse in two-stroke engine applications.

Features

• Forged construction for high strength and reliability

• Engineered for optimal heat transfer from combustion to cylinder walls

• Elliptical profile maintains uniform bearing surface during heat expansion

• Even thrust load distribution minimises localised pressure

• Manufactured in Germany

Specifications

• Bore: 54.50mm (Standard)

• Actual bore: 54.44mm

• Display volume: 122 cm³

• Stroke: 54.00mm

• Clearance: 0.06mm

• Wossner compression ratio: 2-stroke

• OEM compression ratio: 2-stroke

• Compression height: 38.00mm

Cross-Reference OEM Part Numbers

• 56-W9843.050

• 8286DA

• Clip Part Number: CW15

• Pin Part Number: WP132

• Ring Set Part Number: RSB5450 (x2)

Vehicle Fitments

• Sachs 125/6
