PISTON KIT LT80 KFX80 50.00, 8282DA WOSSNER, 56-W673

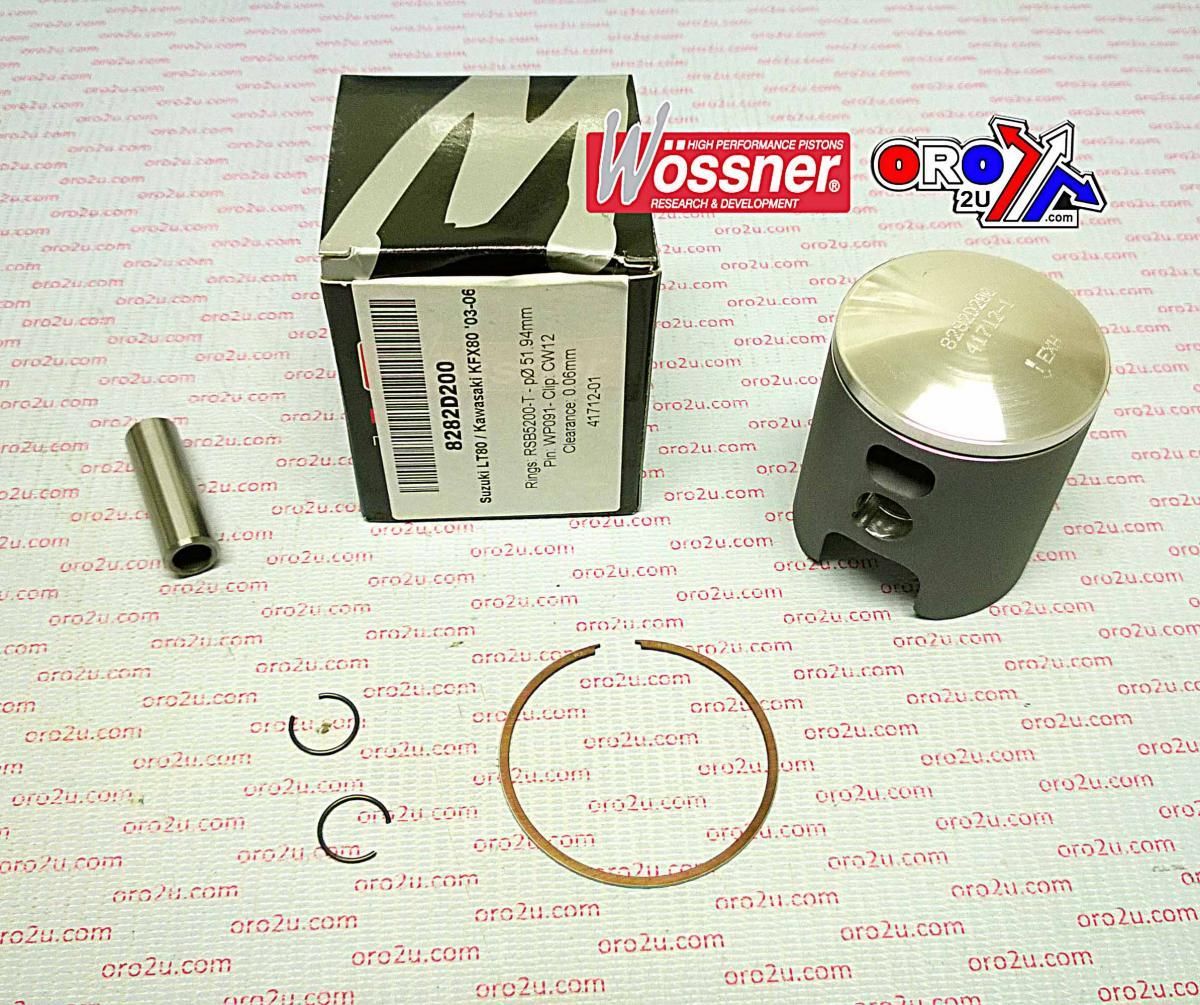

The 50mm Bore Wossner Piston Kit (Part No. 8282DA) is a standard size forged piston developed for Kawasaki KFX80 (2003–2006) and Suzuki LT80 (1982) models. Precision-manufactured in Germany, this piston features an elliptical design that ensures even load distribution under thermal expansion, reducing the risk of piston failure. It is designed to optimise heat transfer and enhance durability in two-stroke engines.

Features

• Forged construction for increased mechanical strength

• Engineered for efficient combustion heat dissipation

• Elliptical geometry for uniform surface pressure distribution

• Reduces piston collapse risk under high thermal load

• Made in Germany

Specifications

• Bore Size: 50.00 mm

• Actual Bore: 49.94 mm

• Clearance: 0.06 mm

• Compression Height: 27.00 mm

• Stroke: 42.00 mm

• Displacement: 82 cm³

• Compression Ratio: 2-stroke (Wossner and OEM)

Vehicle Fitments

• 2003 Kawasaki KFX80

• 2004 Kawasaki KFX80

• 2005 Kawasaki KFX80

• 2006 Kawasaki KFX80

• 1982 Suzuki LT80

Included Components

• Lock: CW12

• Pin: WP059

• Ring Set: RSB5000
