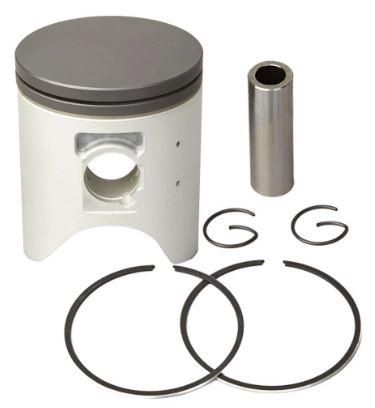

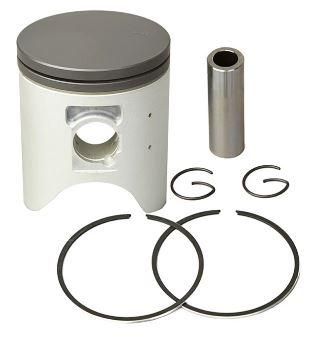

PISTON KIT, HONDA CRM 250 67.00mm

67.00mm (+1.00mm oversize) forged piston kit is designed for Honda CRM 250 models from 1989 to 2000. This kit includes the piston, pin, rings, and clips, providing a direct OEM replacement. Engineered for strength and precision, the piston ensures efficient heat transfer to the cylinder walls, providing uniform expansion and reducing localised pressure. Manufactured to meet or exceed OEM quality standards for reliable performance.

Features

• forged piston for superior strength and durability
• Available in STD, +0.25mm, +0.50mm, +0.75mm, and +1.00mm oversizes
• Direct OEM replacement
• Optimised heat transfer for improved combustion efficiency
• Elliptical design for uniform bearing surface and reduced localised pressure
• Precision-engineered to prevent piston collapse

Specifications

• Bore Size: 67.00mm (+1.00mm oversize)
• Displacement: 246cc
• Compatibility: Honda CRM 250 MD24
• Lock Part Number: CW19
• Pin Part Number: WP044
• Ring Set Part Number: RSB6600

Cross-Reference OEM Part Numbers

• 8071DC, 8071DA, 8071DB
• Piston Rings: 13011-KAE-010
• Piston: 13101-KAE-870, 13102-KAE-870, 13103-KAE-870
• Piston Pin: 13111-KAE-870
• Clip: 94601-19000

Vehicle Fitments

• Honda CRM 250 (1989-2000)
