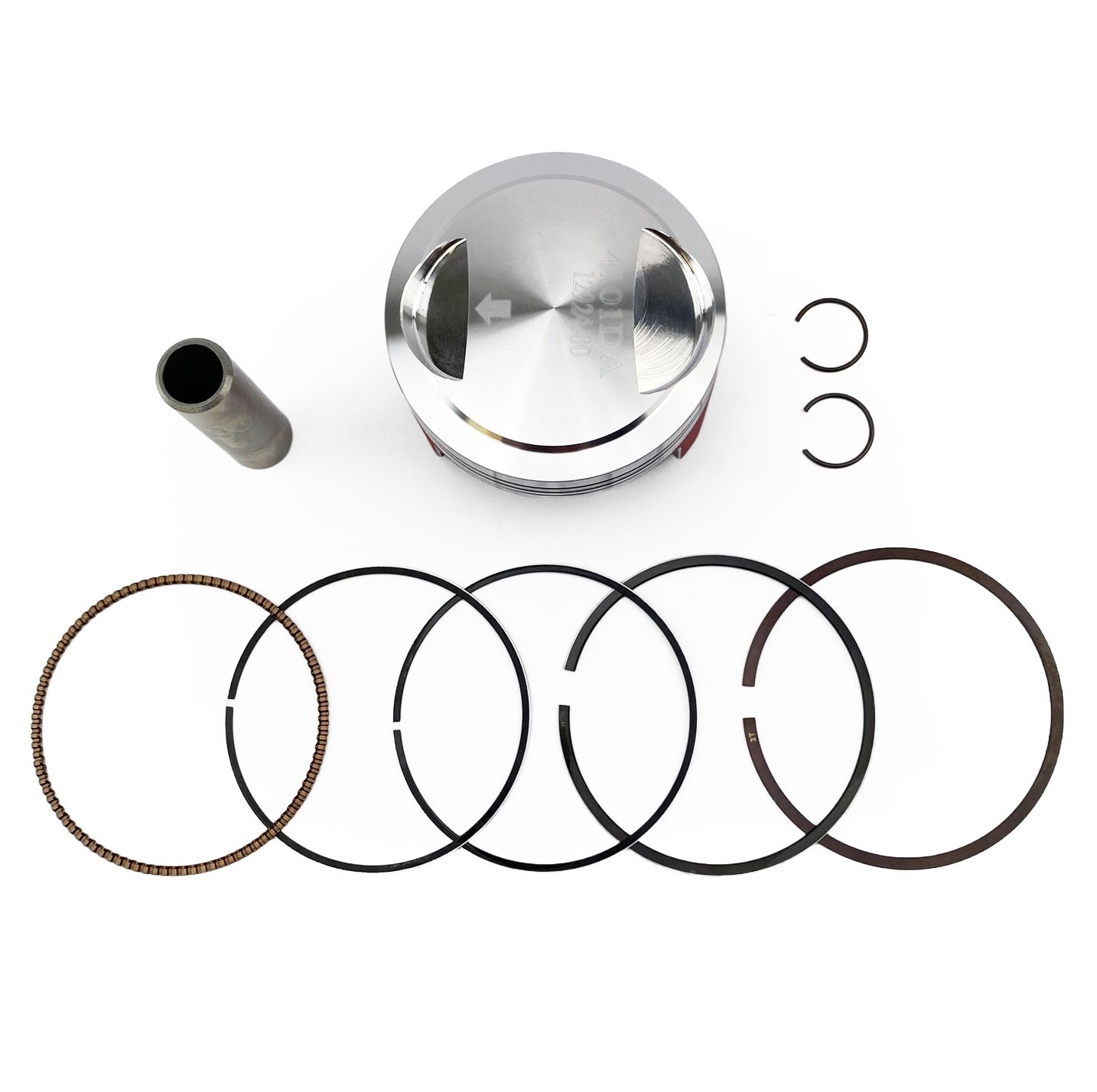

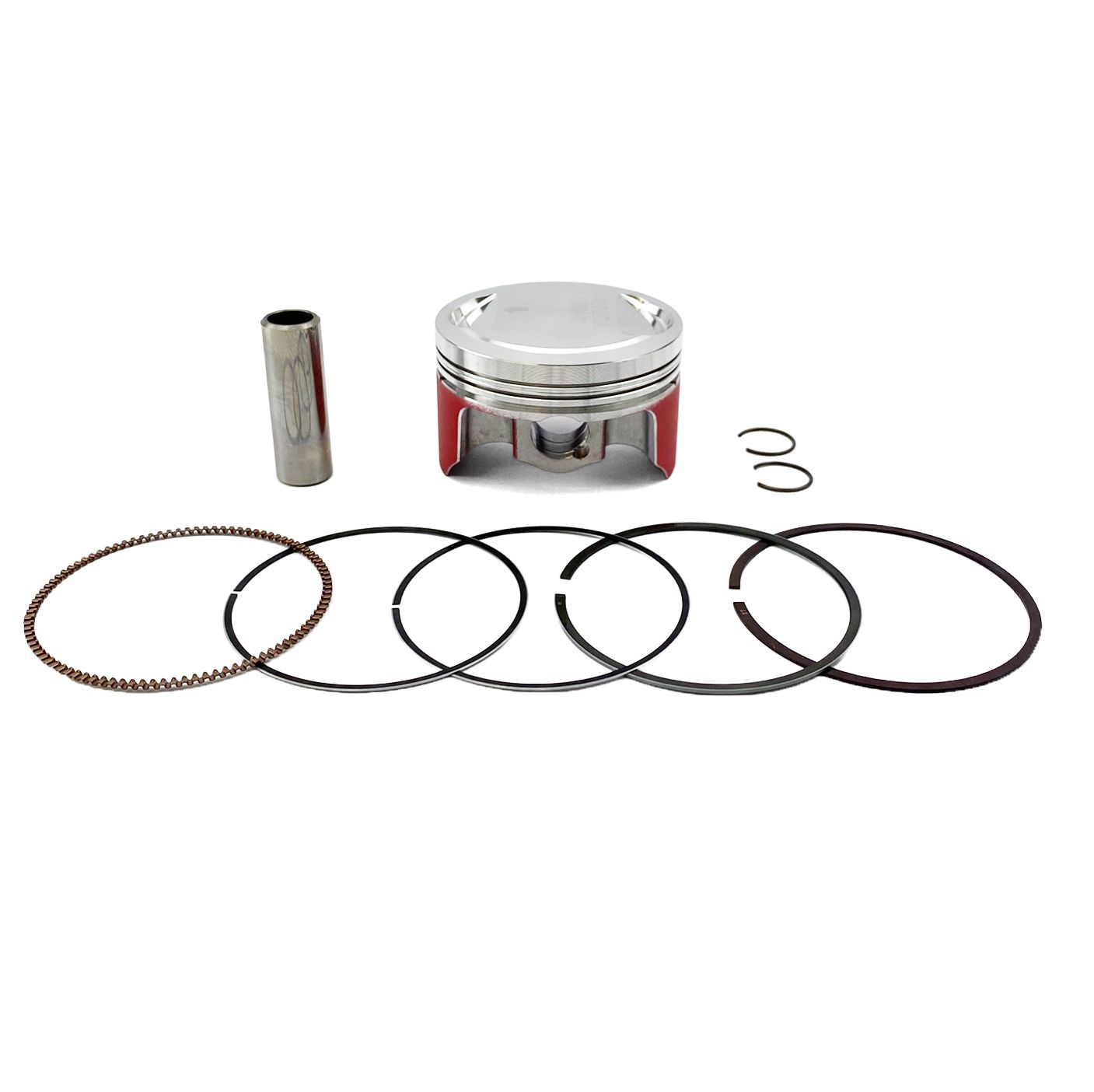

PISTON KIT HONDA CBR125R 2004-2015, WOSSNER 4101DA
High-performance piston designed for Honda CBR 125R models, delivering exceptional reliability and precision. This piston is engineered to meet the demands of competitive environments while maintaining optimal engine performance.
Features:
- Compression ratio of 11.5:1 for enhanced engine efficiency.
- Bore size of 58.00 mm, with piston size at 57.96 mm for a precise fit.
- Manufactured with a clearance of 0.04 mm to ensure optimal operation.
- Supplied in standard size (STD).
Specifications:
- Number of cylinders: 1
- Stroke: 47.20mm
- Displacement: 124.7
- Compression distance: 18.5mm
- Estimated weight: 101.5g
- Ring set: TPR58.00
- Wrist pin: WP157-SP
- Retaining clip: CW13
Vehicle Fitments:
HONDA CBR 125R 2004 – 2015
Part Number: 4101DA
