| Size | 54mm |
|---|---|
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Catalogue | DIRT, ROAD |
| Piston Diameter | 54.0 |

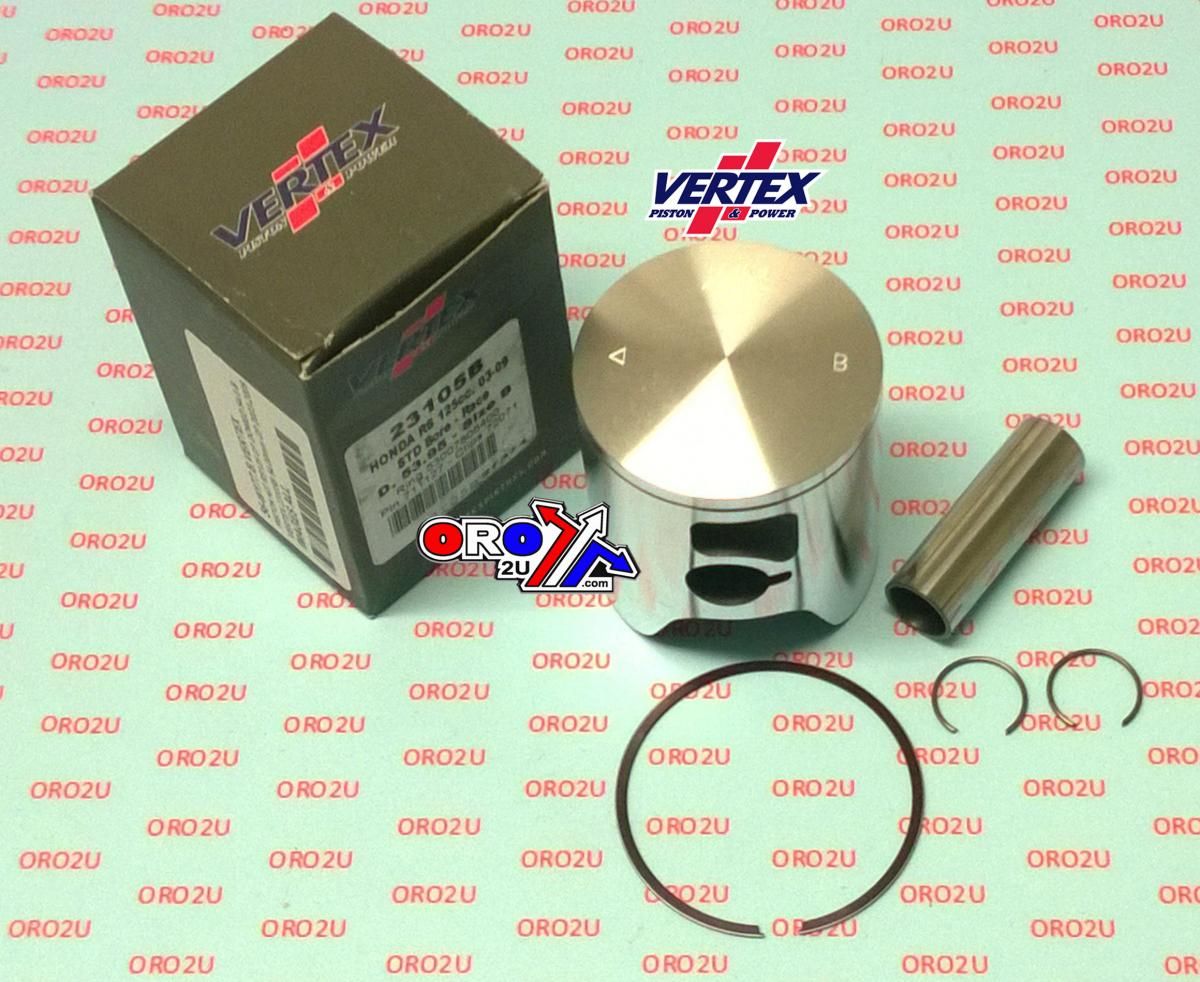

PISTON KIT GP DOMED 54.0 A RS125 03-09, VERTEX 23105A GP HONDA
VERTEX UK PISTON KIT FORGED 23105A 1-RING (Distributed by oro2u.com)
Vertex “kit ” DOME TOP piston for the Honda RS 125
These are a good alternative to the Standard HRC pistons at a much better price
Piston kit comes with .8mm flat ring Ring , Pin , and 2 x clips
Its very important to prep them well , by champhering all the skirts ,and the ring groove ,as well as setting the ring gap , as the ring fits all sizes ( IE the biggest )
Ring gap is at the back , so runs over the rear boost port , requiring good champhering of the rear port .
I recommend the ring is changed half way through the 300 to 350 KM life of the piston , to prevent the ring locating tag breaking.
All Vertex Pistons Feature:
– Standard pistons and components are OEM replacements.
– Kits include piston, rings, wrist pin and circlips.
– All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
– Replacement rings are sold individually.
– Made in Italy.
– Fitted in many oem bikes as STD.
SPECIFICATION:
- BORE SIZE. 54.00mm [A 53.94mm]
Replacement Parts.
- Rings. 53007805400 Need 1,
- Pin. 711127,
- Clips. 72071,
MODEL FITMENT:
- HONDA RS125, GP, 2003-2009 DOME
