| Size | 125.00mm |
|---|---|
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Piston Diameter | |
| Bore Diameter | |
| Piston Grade | |
| Compression Ratio |

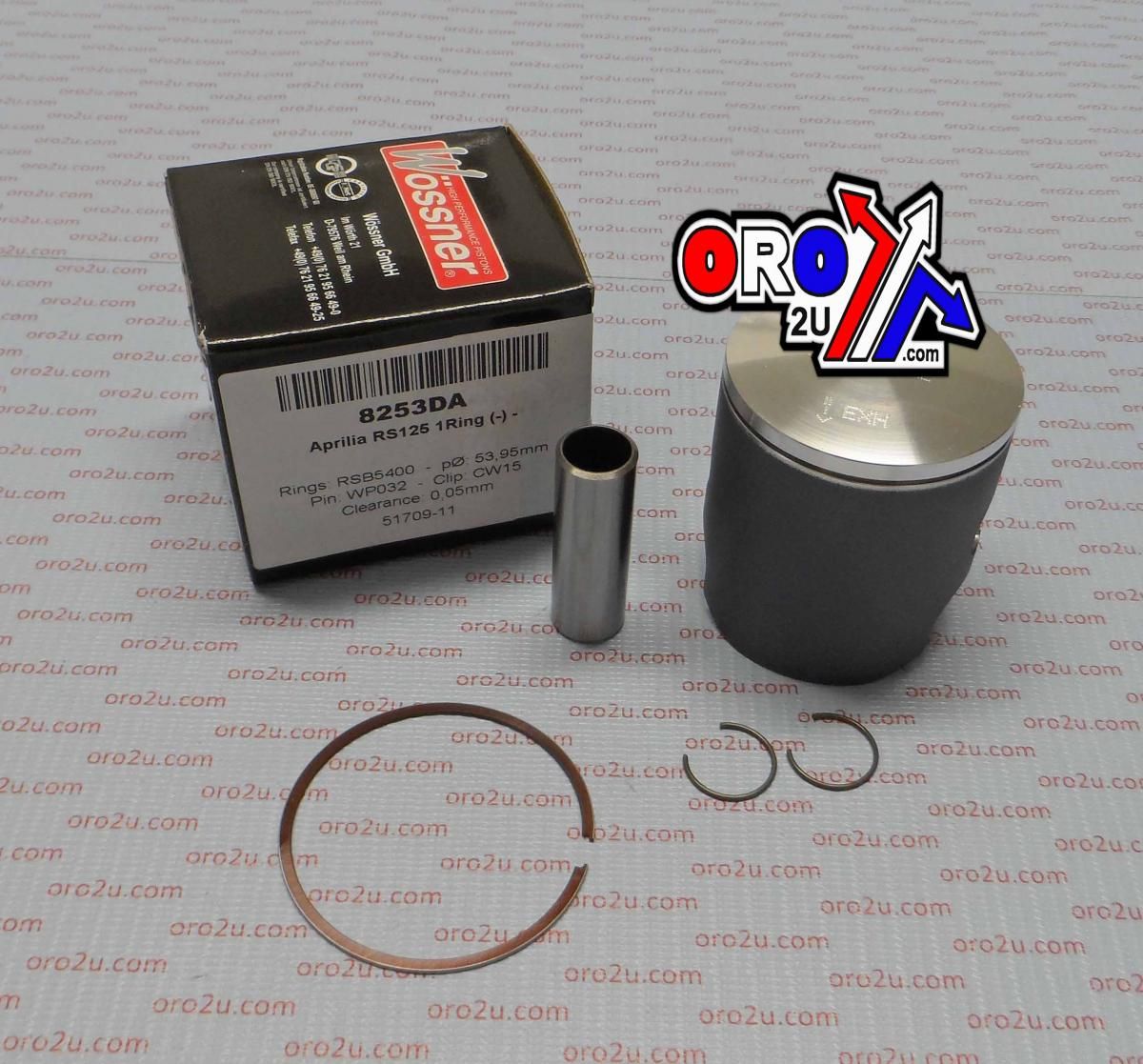

PISTON KIT Aprilia RS125 “A”, FORGED WOSSNER KIT 8253DA, SINGLE RING
This Wossner forged piston kit is designed for Aprilia RS125 motorcycles produced from 1985 to 2012. It features a standard 54.00mm bore with a piston diameter of 53.95mm and a single-ring configuration. Built for durability and efficient thermal management, the piston’s elliptical design ensures uniform expansion and optimal thrust load distribution. Precision-made in Germany, it maintains consistent performance across a wide range of 2-stroke Aprilia applications.
Features
-
Forged piston kit with single ring for Aprilia RS125 (1985–2012)
-
Bore size: 54.00mm (Standard)
-
Piston diameter: 53.95mm
-
Elliptical design for improved thermal expansion and load balance
-
Designed to prevent localised pressure and piston collapse
-
Made in Germany
Specifications
-
Part No: 56-W9913.00A.WO
-
Model: Wossner 8253DA
-
Application: 2-stroke engine
-
Displacement: 125cm³
-
Stroke: 54.50mm
-
Clearance: 0.05mm
-
Compression height: 29.00mm
-
Compression ratio: 2-stroke (OEM and Wossner)
-
Piston clips: CW15
-
Piston pin: WP032
-
Piston ring set: RSB5400
Cross-Reference OEM Part Numbers
-
Not specified
Vehicle Fitments
-
Aprilia AF1 Futura 1985
-
Aprilia AF1 Replica 1985
-
Aprilia Caponord Rally 1985
-
Aprilia Europe Base 1985
-
Aprilia Mini RX 1985
-
Aprilia Pegaso Base 1985
-
Aprilia Red Rose Base 1985
-
Aprilia RS 125 1985
-
Aprilia RS 125 1985
-
Aprilia Syntesi Base 1985
-
Aprilia Tuareg 250 1985
-
Aprilia AF1 Base 1986
