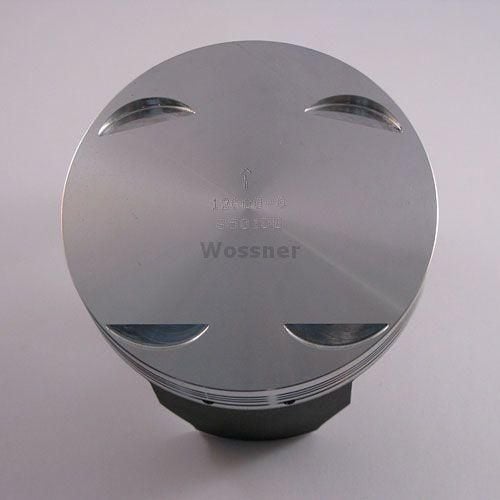

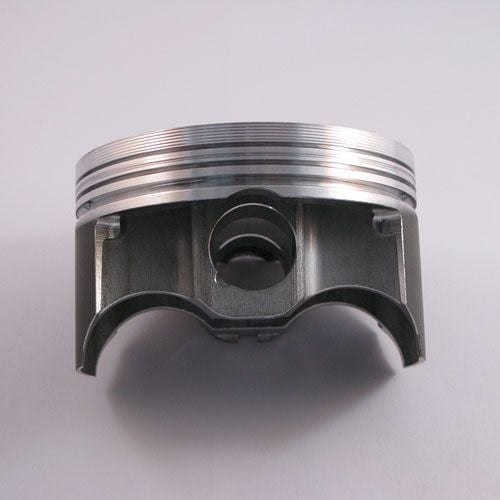

PISTON KIT 98-01 YFM600 95.02, FORGED WOSSNER 8501DC

Wossner 95.02mm forged piston kit is designed for superior strength and durability. Engineered for optimal heat transfer, it ensures efficient cooling of the combustion chamber. The elliptical design provides a uniform bearing surface, reducing localized pressure and distributing thrust loads evenly to prevent piston collapse. Manufactured in Germany for precision and reliability.

Features

• Forged construction for enhanced strength and longevity
• Optimized heat transfer for improved engine performance
• Elliptical design prevents piston collapse and ensures even load distribution
• Manufactured in Germany for high-quality standards

Specifications

• Bore Size: 95.02mm
• Actual Bore Diameter: 94.95mm
• Displacement: 595 cm³
• Stroke: 84.00mm
• Clearance: 0.07mm
• Wossner Compression Ratio: 10.70:1
• OEM Compression Ratio: 8.50:1
• Dome Volume: -0.50 cm³
• Compression Height: 28.00mm
• Lock Part Number: CW22
• Pin Part Number: WP009
• Ring Set Part Number: 950XSY

Cross-Reference OEM Part Numbers

• Part No: 56-W4797+00C.WO

Vehicle Fitments

• Yamaha XT600 (1984 – 2004)
• Yamaha XT600E (1984 – 2004)
• Yamaha TT600 (1984 – 2004)
• Yamaha TT600R (1984 – 2004)
• Yamaha YFM600 Grizzly (1998 – 2001)
