| Size | 43.5mm |
|---|---|
| Product Type | Pistons & Kits |
| Product Group | Engine |
| Catalogue | DIRT |
| Piston Diameter | 43.5 |
| Bore Diameter | |
| Piston Grade | |
| Compression Ratio |

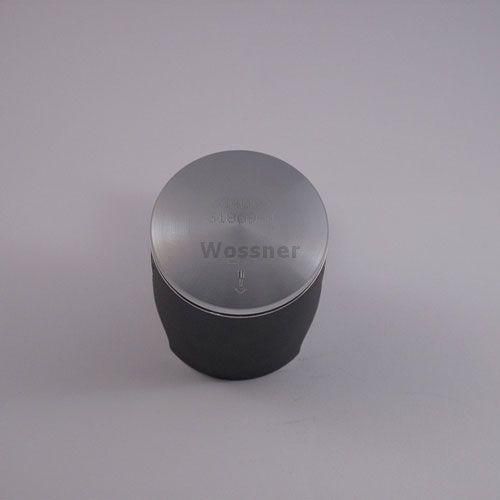

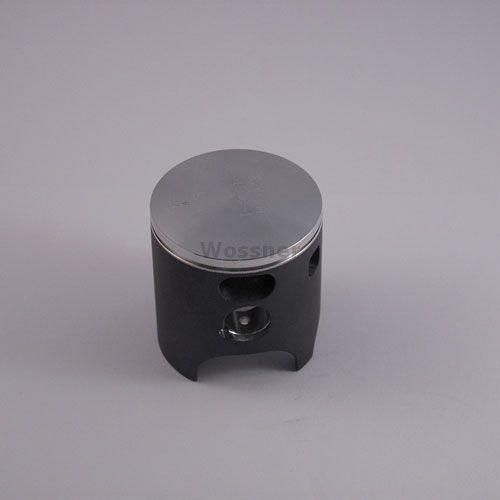

PISTON KIT 97-09 KTM60 SX 43.5, FORGED WOSSNER 8240DA 46030007000
Wossner forged piston kit with a 43.50mm bore (43.45mm) for KTM SX60 models from 1997 to 2009. Designed for superior strength and heat transfer efficiency, this piston ensures optimal combustion performance. The elliptical design distributes thrust loads evenly, reducing localized pressure and preventing piston collapse. Manufactured in Germany.
Features
- Forged piston for increased strength and durability
- Optimized heat transfer for improved performance
- Elliptical design ensures uniform bearing surface under heat expansion
- Even thrust load distribution to prevent piston collapse
- Manufactured in Germany
Specifications
- Bore Size: 43.50mm (43.45mm)
- Part Number: 8240DA
- Lock Part Number: CW12
- Pin Part Number: WP091
- Ring Set Part Number: RSB4350
- Displacement: 60 cm³
- Stroke: 40.00mm
- Clearance: 0.05mm
- Compression Ratio: 2-stroke
- Compression Height: 21.60mm
Cross-Reference OEM Part Numbers
- 46030007000
Vehicle Fitments
- KTM SX60 (1997-2009)
