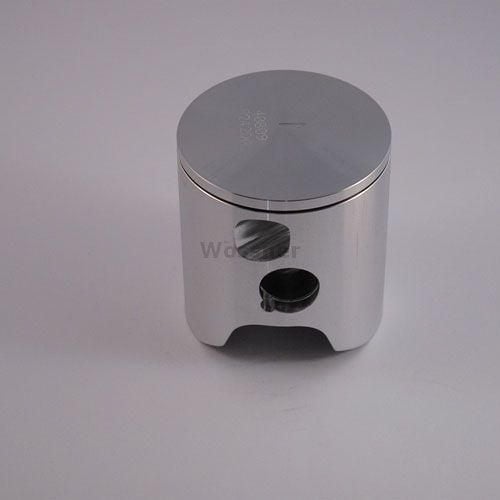

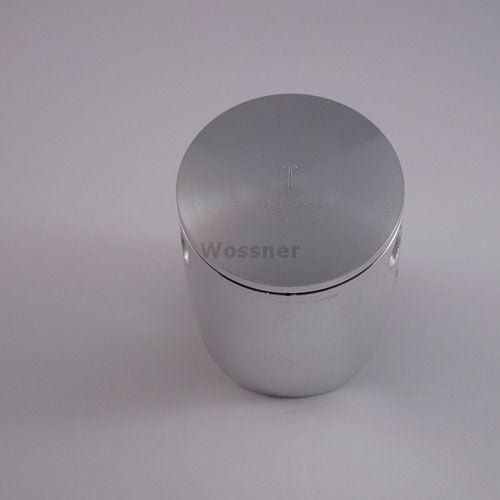

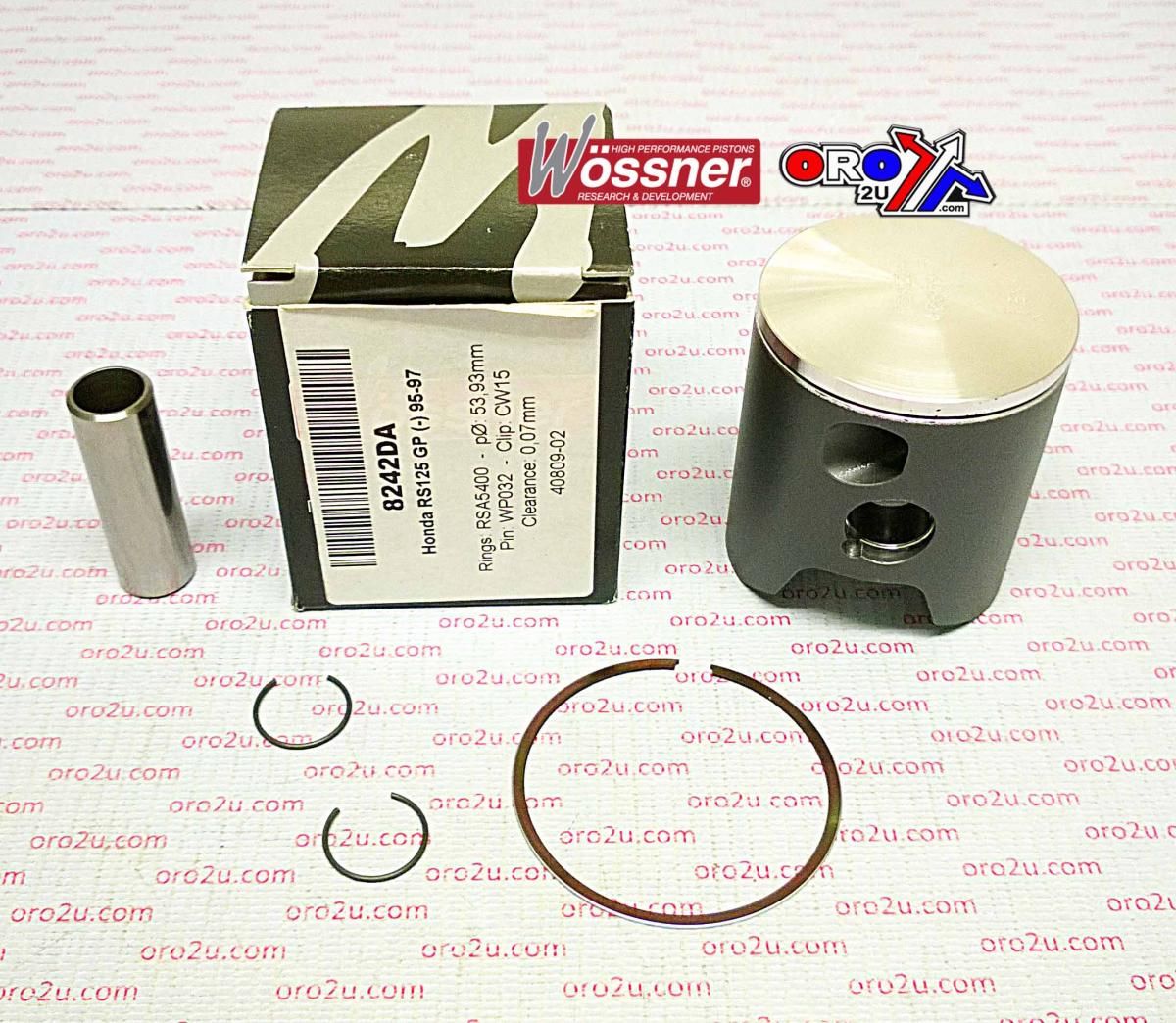

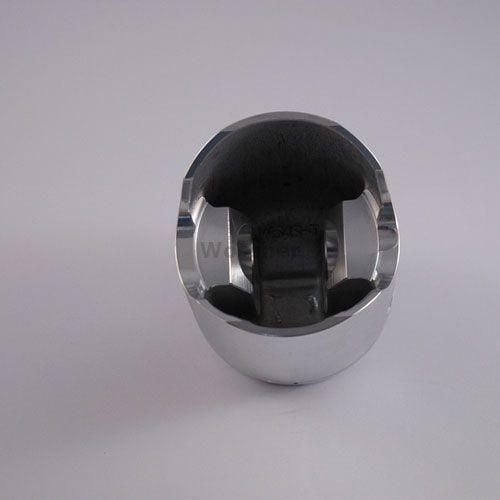

PISTON KIT 95-97 RS125 GP 54.0, FORGED WOSSNER 8242DA

This Wossner forged piston kit with a 54.00mm nominal bore (actual 53.93mm) is specifically designed for the Honda RS125 GP from 1995 to 1997. Precision-engineered for two-stroke race applications, it offers strength, consistent performance, and efficient heat dissipation for competitive use.

Features

• Forged construction ensures maximum durability under high-performance conditions

• Elliptical skirt profile enhances heat distribution and reduces localised stress

• Designed for optimal combustion efficiency and reduced friction

• Made in Germany using high-precision manufacturing processes

Specifications

• Bore Size: 54.00mm (actual 53.93mm)

• Stroke: 54.50 mm

• Clearance: 0.07 mm

• Wossner Compression Ratio: 2 stroke

• OEM Compression Ratio: 2 stroke

• Compression Height: 29.00 mm

• Lock Part Number: CW15

• Pin Part Number: WP032

• Ring Set Part Number: RSA5400

Vehicle Fitments

• Honda RS125 GP 1995

• Honda RS125 GP 1996

• Honda RS125 GP 1997
